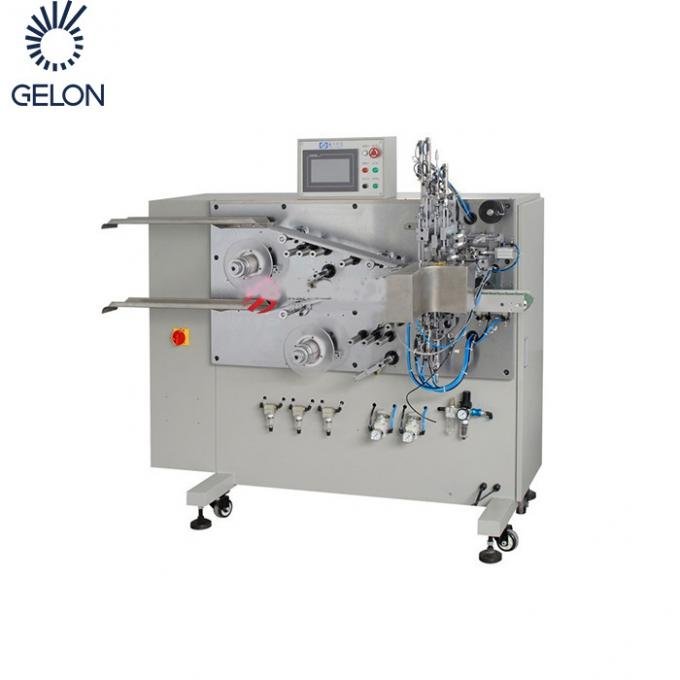

Automatic Winding Machine for Cylinder & Pouch Lithium Battery Cells
PRODUCT PARAMETERS
Description

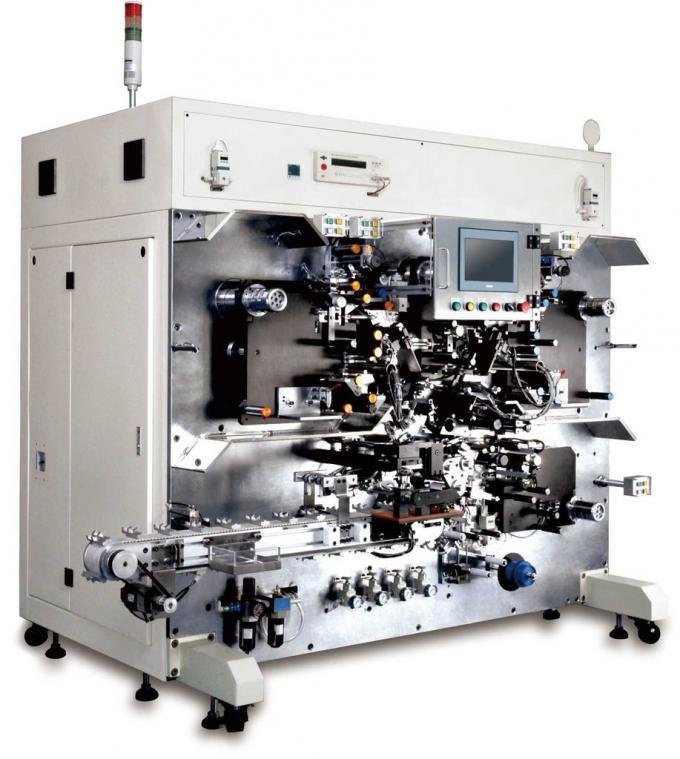

Automatic Winding Machine for Cylinder & Pouch Cells | 3-Needle Design | ≥10PPM
Product Overview
Our Automatic Winding Machine is a high-speed, precision-engineered solution designed for the automatic winding of digital lithium battery cells. As one of the key pieces of equipment in battery production, it features a three-winding needle and three-station winding design for coordinated operation, fast winding speeds, and extremely low failure rates.
The machine utilizes a servo system with closed-loop tension control for the positive electrode, negative electrode, and separator. This ensures consistent tension coil-by-coil throughout the winding process, effectively preventing deformation of the battery core during downstream processes.
With a precision of ±0.3mm and production efficiency of ≥10PPM, this CE-certified winding machine is ideal for manufacturers producing high-quality cylindrical and pouch cells.
The PLC interface is designed to be humanized and scientific, with clear fault location display for easy troubleshooting and minimal downtime.
Key Benefits
| Benefit | Technical Feature | Customer Value |
|---|---|---|
| High-Speed Production | 3-needle, 3-station design with coordinated operation | ≥10PPM efficiency – maximize your production output |
| Superior Winding Quality | Servo closed-loop tension control | Prevents core deformation, improves final cell performance and safety |
| High Precision | Winding accuracy ±0.3mm | Ensures consistent electrode alignment, critical for cell quality |
| Exceptional Yield | Advanced control system and stable mechanics | ≥98% yield rate – reduce material waste and cost |
| High Reliability | Coordinated 3-needle design | Low failure rate, ≥95% operation ratio – maximizes uptime |
| User-Friendly Diagnostics | PLC with fault location display | Rapid troubleshooting, reduced maintenance time |
| Versatile Compatibility | Adjustable for multiple cell sizes | T:2-10mm, W:40-100mm, H:40-160mm – one machine handles multiple products |
Technical Specifications
| Parameter | Value | Remarks |
|---|---|---|
| Winding Precision | ±0.3mm | Ensures consistent electrode alignment |
| Production Efficiency | ≥10PPM | Pieces per minute – high-speed production |
| Suitable Cell Size (T×W×H) | T: 2-10mm, W: 40-100mm, H: 40-160mm | Compatible with various cylinder and pouch cell formats |
| Electrode Length | 800-2500mm | Handles a wide range of electrode lengths |
| Winding Needles | 3 needles | Three-needle, three-station design |
| Operation Ratio | ≥95% | High reliability and uptime |
| Yield Rate | ≥98% | Excellent finished product quality |
| Air Source | 0.5Mpa | Standard industrial compressed air |
| Air Flow | 100L/min | |
| Power Supply | 380V 50Hz | 3-phase industrial power |
| Environmental Temperature | -40°C to +45°C | Wide operating range |
| Machine Dimensions (L×W×H) | 2500 × 1700 × 1350 mm | |
| Certification | CE | Certified for European markets |
How It Works
- Material Loading: Positive electrode, negative electrode, and separator materials are loaded onto the machine’s unwinding shafts.
- Three-Needle Winding: The unique three-winding needle design operates across three stations simultaneously. The coordinated movement ensures continuous, high-speed production with minimal idle time.
- Closed-Loop Tension Control: Servo motors provide real-time, closed-loop control of tension for all three materials (cathode, anode, separator). This ensures tension remains consistent from the first turn to the last, preventing deformation.
- Completed Cell Ejection: Once the programmed number of windings is complete, the finished jelly roll is automatically ejected and transferred to the next process (such as taping or housing insertion).
- Fault Monitoring: The PLC system continuously monitors machine status. If an issue occurs, the fault location is displayed on the HMI for immediate attention.
Equipment Features
- Three-Needle, Three-Station Design: Enables coordinated, high-speed operation with low failure rates. Multiple stations work in parallel to maximize throughput.
- Servo Closed-Loop Tension Control: Provides precise, turn-by-turn tension control of positive electrode, negative electrode, and separator. This is critical for preventing “telescoping” or deformation of the battery core.
- Humanized PLC Interface: The touchscreen interface is scientifically designed for ease of use. Operators can quickly set parameters, monitor production, and diagnose issues.
- Fault Location Display: When a fault occurs, the system displays the exact location on the interface, drastically reducing troubleshooting time.
- Robust Construction: Built for 24/7 industrial operation with high-quality components to ensure long-term reliability and ≥95% operation ratio.
- High Yield Rate: With precision control and stable mechanics, the machine achieves a ≥98% yield rate, minimizing material waste.
- Wide Cell Compatibility: Adjustable settings accommodate cell thicknesses from 2-10mm, widths from 40-100mm, and heights from 40-160mm.
Applications
- Cylindrical Lithium Battery Cells: Automatic winding for various cylindrical formats
- Pouch Battery Cells: Precision winding for pouch cell production
- Digital Lithium Batteries: Ideal for consumer electronics batteries
- Power Tool Batteries: High-quality winding for demanding applications
- Energy Storage Cells: Consistent performance for larger format cells
Why Choose Our Automatic Winding Machine
- Proven Performance: With ≥10PPM efficiency and ≥98% yield rate, this machine delivers the productivity and quality you need to stay competitive.
- Superior Tension Control: Our servo closed-loop system ensures coil-by-coil tension consistency – a critical factor in preventing core deformation and ensuring final cell performance.
- Engineered for Reliability: The three-needle coordinated design minimizes failure points, while the ≥95% operation ratio ensures your production lines keep running.
- User-Centric Design: The PLC interface with fault location display means your team can operate and maintain the machine with minimal training.
- CE Certified: Fully certified for European markets, meeting stringent safety and quality standards.
- Flexible Production: Quick changeovers between cell sizes (T:2-10mm, W:40-100mm, H:40-160mm) allow you to respond to changing customer demands.
Frequently Asked Questions (FAQ)
Q: What types of batteries can this machine produce?
A: This winding machine is designed for both cylindrical and pouch lithium battery cells. It handles cell sizes with thickness 2-10mm, width 40-100mm, and height 40-160mm.
Q: What is the production speed?
A: The machine achieves ≥10PPM (pieces per minute) production efficiency, depending on cell size and electrode length.
Q: How does the tension control work?
A: The machine uses servo motors with closed-loop control for the positive electrode, negative electrode, and separator. This provides precise, turn-by-turn tension regulation throughout the entire winding process.
Q: What is the winding precision?
A: The winding accuracy is ±0.3mm, ensuring consistent electrode alignment for high-quality battery cells.
Q: Is the machine easy to operate?
A: Yes. The PLC features a humanized, scientific interface design. Operators can easily set parameters, and if a fault occurs, the system displays the exact location for quick troubleshooting.
Q: What is the typical yield rate?
A: The machine achieves a ≥98% yield rate under normal operating conditions, thanks to its precision control and stable mechanical design.
Q: What are the power requirements?
A: The machine requires 380V 50Hz power supply. Please contact us for other voltage/frequency options.
Q: Is the machine CE certified?
A: Yes, this equipment is CE certified, meeting European safety and quality standards.
