Battery Tab for Pouch Cell Assembly | 0.1mm – 0.2mm Thickness | Customizable Dimensions
PRODUCT PARAMETERS
Description
Battery Tab for Pouch Cell Assembly | 0.1mm-0.2mm Thickness | Custom Width/Length | Gelon
Product Overview

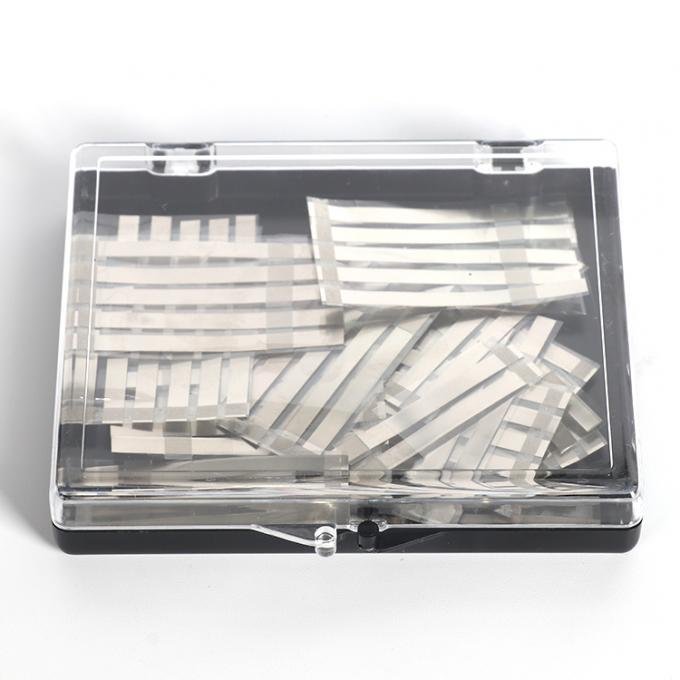

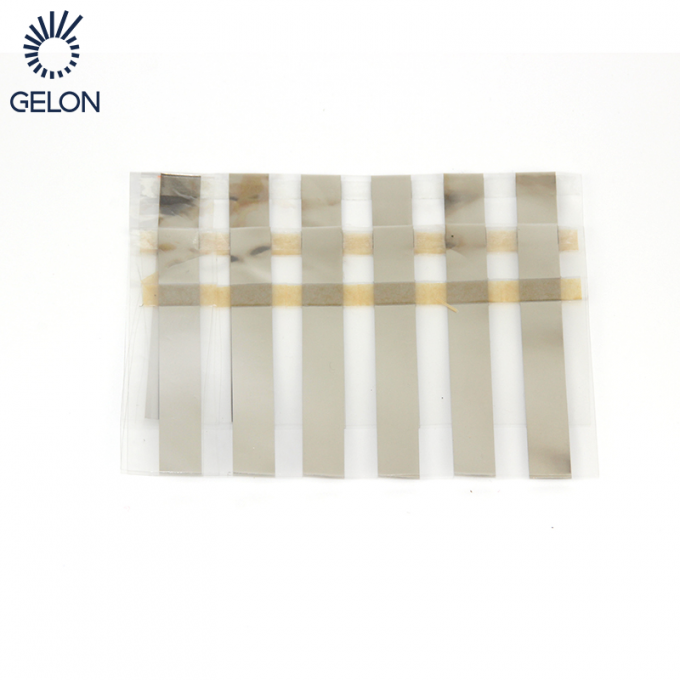

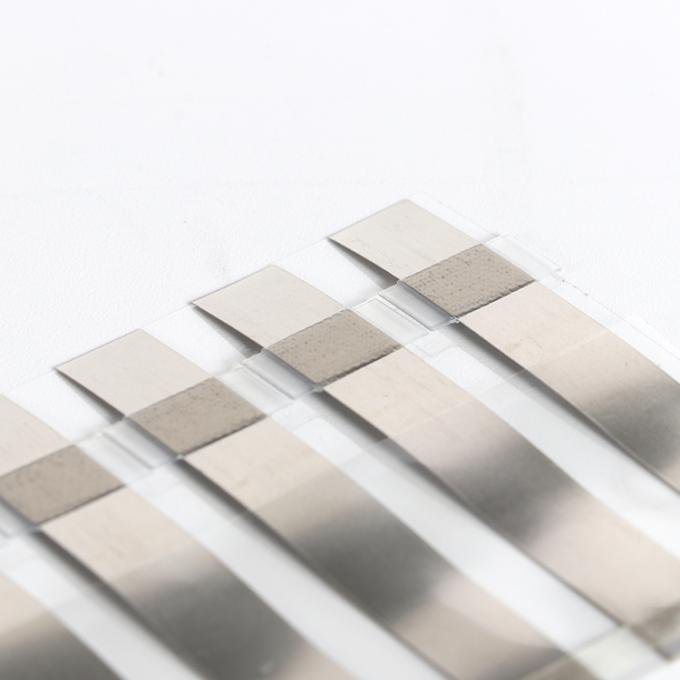

The Battery Tab is an essential component for lithium pouch cell assembly, providing the electrical connection between the electrode and the external circuit. We offer high‑quality aluminum and nickel tabs in thicknesses ranging from 0.1mm to 0.2mm, with fully customizable width and length to meet your specific cell design requirements.
Our battery tabs feature imported PP adhesive glue (PPa‑N black glue, PPa‑F yellow glue, and PP white glue) using advanced technology that ensures excellent bonding performance between the tab metal and the pouch film. The advanced manufacturing process delivers superior stick performance between the tab material and copper‑coated nickel, copper, or aluminum metal.
Furthermore, our battery tabs offer:
- Precision thickness control – 0.1mm, 0.15mm, 0.2mm, 0.3mm options
- Customizable width – from 1mm to 100mm
- Customizable length – according to your requirements
- Multiple glue colors – white, black, yellow
- Glue lengths – 4mm, 5mm, 6mm, 7mm, 8mm, 10mm, 12mm, 14mm, 20mm
- Glue thickness – 0.072mm or 0.1mm
With CE certification and a supply capacity of 1500kg per month, we ensure consistent quality and reliable availability for your battery production needs.
Business & Logistics Information
| Parameter | Details |
|---|---|
| Place of Origin | China |
| Brand Name | Gelon |
| Model Number | Battery Tabs |
| Certification | CE |
| Price | USD 0.2 – 0.7 per piece |
| Minimum Order Quantity | 5 kg |
| Packaging Details | Standard Packing |
| Delivery Time | 4‑6 weeks |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 1500 kg per month |
Key Product Features
1. Precise Thickness Options
Our battery tabs are available in multiple thicknesses to suit different cell designs:
- 0.1mm
- 0.15mm
- 0.2mm
- 0.3mm
Thickness can be adjusted according to customer requirements.
2. Customizable Width and Length
- Width range: 1mm to 100mm – fully customizable
- Length range: Customizable to your specific requirements
- Perfect for different pouch cell formats and capacities
3. Imported PP Adhesive Glue
We use high‑quality imported PP adhesive with three color options:
| Glue Type | Color | Application |
|---|---|---|
| PPa‑N | Black | High‑performance sealing |
| PPa‑F | Yellow | Standard sealing |
| PP | White | General purpose |
Glue length options: 4mm, 5mm, 6mm, 7mm, 8mm, 10mm, 12mm, 14mm, 20mm
Glue thickness options: 0.072mm, 0.1mm
4. Excellent Bonding Performance
- Advanced technology ensures good stick performance between the tab and copper‑coated nickel, copper, or aluminum metal
- Reliable seal integrity for long battery life
- Prevents electrolyte leakage and moisture ingress
5. High-Quality Metal Materials
- Aluminum tab – for cathode connections
- Nickel tab – for anode connections
- Nickel‑plated copper tab – optional for enhanced conductivity
6. Fast Lead Time
- Within 7 days for standard orders
- Quick turnaround for urgent production needs
Technical Specifications
| Parameter | Value | Remarks |
|---|---|---|
| Product Name | Battery Tab | Pouch cell assembly material |
| Material | Aluminum, Nickel, Nickel‑plated copper | |
| Thickness Options | 0.1mm, 0.15mm, 0.2mm, 0.3mm | Customizable |
| Width Range | 1 – 100 mm | Customizable |
| Length | Customerization | According to request |
| Glue Colors | White, Black, Yellow | |
| Glue Lengths | 4, 5, 6, 7, 8, 10, 12, 14, 20 mm | |
| Glue Thickness | 0.072mm, 0.1mm | |
| Lead Time | Within 7 days | For standard orders |
| Certification | CE |
Applications
- Pouch Cell Assembly: Positive and negative tab connections for soft‑pack lithium batteries
- Lithium Battery Manufacturing: High‑quality tabs for consumer, EV, and ESS batteries
- R&D Laboratories: Custom dimensions for prototype cell development
- Small‑Batch Production: Reliable tabs for pilot lines
- Custom Battery Designs: Flexible sizing for specialized applications
Why Choose Gelon Battery Tabs
- Precision Thickness Control: With options from 0.1mm to 0.3mm, you can select the exact thickness needed for your cell design and current requirements.
- Fully Customizable Dimensions: Unlike standard tabs, we offer width from 1mm to 100mm and any length you require, ensuring perfect fit for your pouch cell format.
- Imported PP Adhesive: Our imported PP glue (PPa‑N black, PPa‑F yellow, PP white) delivers excellent bonding performance, ensuring reliable seals and long battery life.
- Advanced Manufacturing Technology: The advanced production process ensures good stick performance between the tab and copper‑coated nickel, copper, or aluminum metal – critical for seal integrity.
- Multiple Glue Options: Choose from white, black, or yellow glue with lengths from 4mm to 20mm and thicknesses of 0.072mm or 0.1mm to match your sealing process.
- Fast Lead Time: With delivery within 7 days for standard orders, we help you maintain production schedules.
- CE Certified: Our battery tabs meet international quality and safety standards.
- Complete Battery Solutions: As a full‑service supplier, Gelon provides complete sets of lithium battery materials and equipment for turn‑key projects.
Complete Battery Solutions from Gelon
Gelon is a leading manufacturer in the lithium cell industry with extensive experience in battery material production, battery manufacturing, and equipment production. We offer a one‑stop solution (turn‑key project) for your battery needs:
1. Full Set of Lithium Battery Materials
- Cathode Materials: LFP, LMO, LCO, NMC, NCA
- Anode Materials: Graphite (MCMB), natural graphite, LTO
- Current Collectors: Aluminum foil, copper foil, carbon coated copper foil
- Separators: Battery separator
- Battery Tabs: Aluminum, nickel, nickel‑plated copper
- Electrolyte: Various formulations
2. Full Set of Lithium Battery Production Equipment
Complete laboratory and production equipment including:
- Mixing machine → Coating machine → Oven → Rolling machine
- Slitting machine → Stacking machine → Winding machine → Welding machine
- Sealing machine → Glove boxes → Battery testers → And more…
3. Turn-Key Project Solutions
Based on extensive battery production experience, we offer turn‑key solutions for:
- Lithium battery laboratories
- Mobile battery pilot lines
- EV battery production lines
Frequently Asked Questions (FAQ)
Q: What thickness options are available for these battery tabs?
A: We offer thicknesses of 0.1mm, 0.15mm, 0.2mm, and 0.3mm. Other thicknesses can be customized upon request.
Q: Can the width and length be customized?
A: Yes. Width can be adjusted from 1mm to 100mm, and length is fully customizable according to your requirements.
Q: What glue colors are available?
A: We offer white (PP), black (PPa‑N), and yellow (PPa‑F) glue options.
Q: What glue lengths are available?
A: Standard glue lengths include 4mm, 5mm, 6mm, 7mm, 8mm, 10mm, 12mm, 14mm, and 20mm.
Q: What is the glue thickness?
A: Glue thickness options are 0.072mm and 0.1mm.
Q: What is the minimum order quantity?
A: The minimum order quantity is 5 kg.
Q: What is the typical lead time?
A: Standard delivery is within 7 days. Total delivery time including shipping is 4-6 weeks.
Q: Are these battery tabs CE certified?
A: Yes, our battery tabs are CE certified.
Q: What materials are the tabs made from?
A: We offer aluminum tabs (for cathodes), nickel tabs (for anodes), and nickel‑plated copper tabs (optional).
Q: Can I get samples for testing?
A: Please contact our sales team to discuss sample availability for your qualification process.
Q: Do you supply other battery materials?
A: Yes! Gelon supplies a complete range of lithium battery materials, production equipment, and turn‑key solutions.
Shipping and Packaging Information
- Packaging: Standard packing ensures safe delivery
- Lead Time: Within 7 days for production, plus shipping time
- Shipping Methods: We offer various shipping options based on your location and timeline
