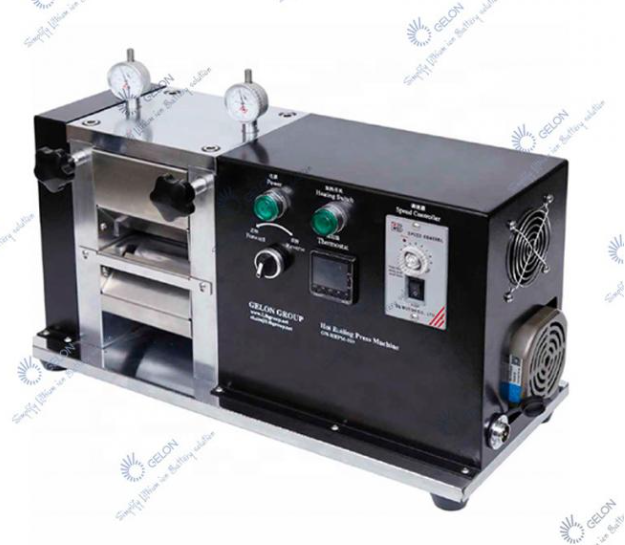

Desktop Heating Rolling Press Calender Machine for Pouch Cell Pilot Line
PRODUCT PARAMETERS
Description
The Gelon desktop heating rolling press calender machine is designed for laboratory and pilot-line battery electrode calendering. It is suitable for lithium battery pouch cell research, electrode density improvement, foil thinning, and small-batch production. With a 300mm roll width, 0-2mm adjustable calendering thickness, HRC62 rollers, and adjustable heating control, this compact calender machine delivers stable and precise pressing performance for battery materials and other nonferrous metals.
Product Overview
This desktop heating rolling press calender machine is mainly used for battery materials in laboratories, including a small amount of gold, silver, copper, aluminum, and other nonferrous materials under certain temperature electric hot rolling. It is especially suitable for clean energy materials, lithium plate thinning, and density increasing.

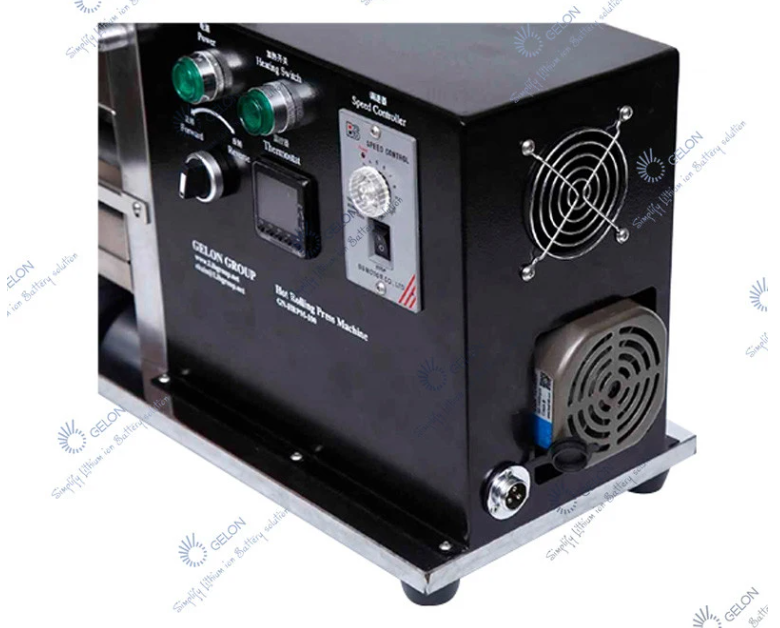

The machine features heating rolling, adjustable thermostat temperature control, and digital display. It can work with or without heating. The vertical design makes it easy to feed materials and slice after rolling. The electric rolling system enables automated forming and reversing operation, making it flexible and quick for daily lab work and pouch cell pilot line research.
Key Features

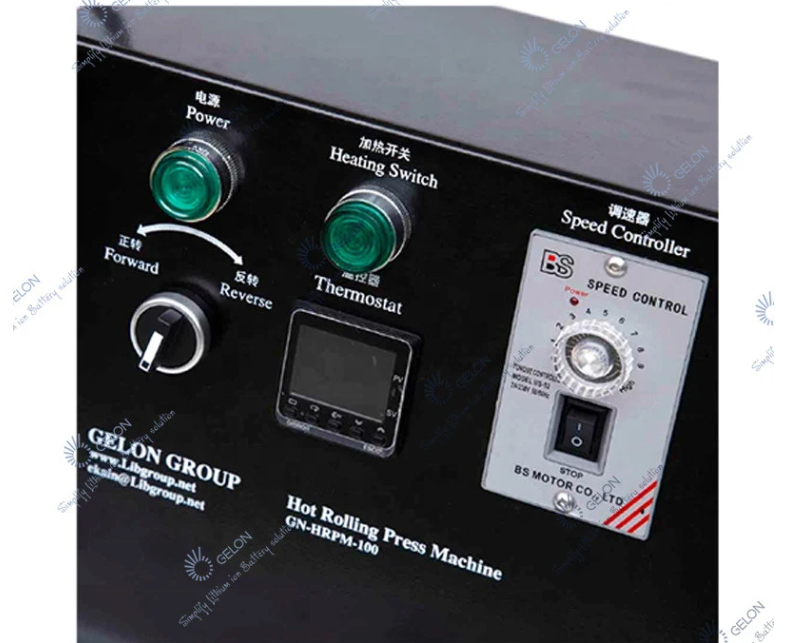

- Heating rolling with adjustable thermostat temperature control and digital display
- Optional with or without heating operation
- Roll hardness up to HRC62, surface hard chrome plated, rust-resistant
- Ramp to adjust compression gap, high precision adjustment
- Rolling high precision cylindrical roller ≤ ±2um
- Vertical design, easy to slice with material feed rolling
- Gear rotation to achieve roll repression
- Tablet thickness, speed, and heating temperature adjustable
- Electric rolling, automated forming, reversing operation
- Small size, easy to operate, flexible and quick
- CE certified, 1-year warranty
Technical Specifications
| Item | Unit | Data |
|---|---|---|
| Size (LWH) | mm | 585 x 245 x 355 |
| Weight | kg | 65 |
| Roll Width | mm | 300 |
| Hot Rolling Width | mm | 300 |
| Roller Diameter | mm | 2~Φ96 |
| Calendering Thickness | mm | 0~2 |
| Dial Gauge Accuracy | mm | -0.005 |
| Rolling Speed | m/min | 0~1.5 |
| Surface Hardness of Rollers | HRC62 | |
| Total Power | AC220V, 200W | |
| Heating Temperature | °C | 130°C adjustable digital display, customizable |
| Operation | Electric | |
| Place of Origin | China | |
| Brand | Gelon | |
| Certification | CE | |
| Warranty | 1 Year | |
| MOQ | 1 Set | |
| Delivery Time | 20~25 Days | |
| Payment Terms | L/C, D/A, D/P, T/T | |
| Packaging | Standard packing / Wood packing | |
| Price | Contact for Quote |
The heating temperature is based on the original product description. Final specifications can be customized according to customer requirements.
Applications
This battery electrode calendering machine is widely used in:
- Lithium-ion battery electrode calendering
- Pouch cell pilot line research
- Laboratory battery materials research
- Gold, silver, copper, aluminum, and other nonferrous materials hot rolling
- Clean energy materials density improvement
- Lithium plate thinning and density increasing
- Small-batch battery electrode production
It is particularly suitable for universities, research institutes, battery R&D centers, and pouch cell pilot line engineers.
Customization Options
Gelon supports customization for different battery research and pilot-line requirements. Customizable options include:
- Roll width
- Machine size
- Voltage and frequency
- Heating temperature
- Calendering thickness
- Rolling speed
- Other special requirements
Standard roll width is 300mm. Customer size is available.
Why Choose Gelon?
- China-based battery equipment manufacturer
- CE certified lab calender machine
- 1-year warranty
- MOQ: 1 set
- Delivery time: 20~25 days
- Standard packing / wood packing
- Payment terms: L/C, D/A, D/P, T/T
- Customization supported
- Reliable performance for battery electrode calendering and pouch cell pilot line
FAQ
1. What is this desktop heating rolling press calender machine used for?
It is mainly used for battery electrode calendering, lithium plate thinning, density increasing, and laboratory hot rolling of copper, aluminum, gold, silver, and other nonferrous materials.
2. What is the roll width?
The standard roll width is 300mm. Customized roll width is available.
3. What is the calendering thickness?
The calendering thickness is 0~2mm, adjustable.
4. Does it support heating?
Yes. It supports heating rolling with adjustable thermostat temperature control and digital display. The standard heating temperature is 130°C adjustable, and it can be customized.
5. What is the roller hardness?
The surface hardness of rollers is HRC62, with hard chrome plating for rust resistance.
6. Is it suitable for pouch cell pilot line?
Yes. It is designed for lab and pouch cell pilot line electrode calendering.
7. What is the MOQ?
MOQ is 1 set.
8. What is the delivery time?
Delivery time is about 20~25 days.
9. What is the warranty?
1-year warranty.
10. What payment terms do you accept?
L/C, D/A, D/P, T/T.
Request a Quote
Looking for a reliable desktop heating rolling press calender machine for your pouch cell pilot line or battery laboratory?
Contact Gelon today to get a customized solution, technical support, and quotation.
