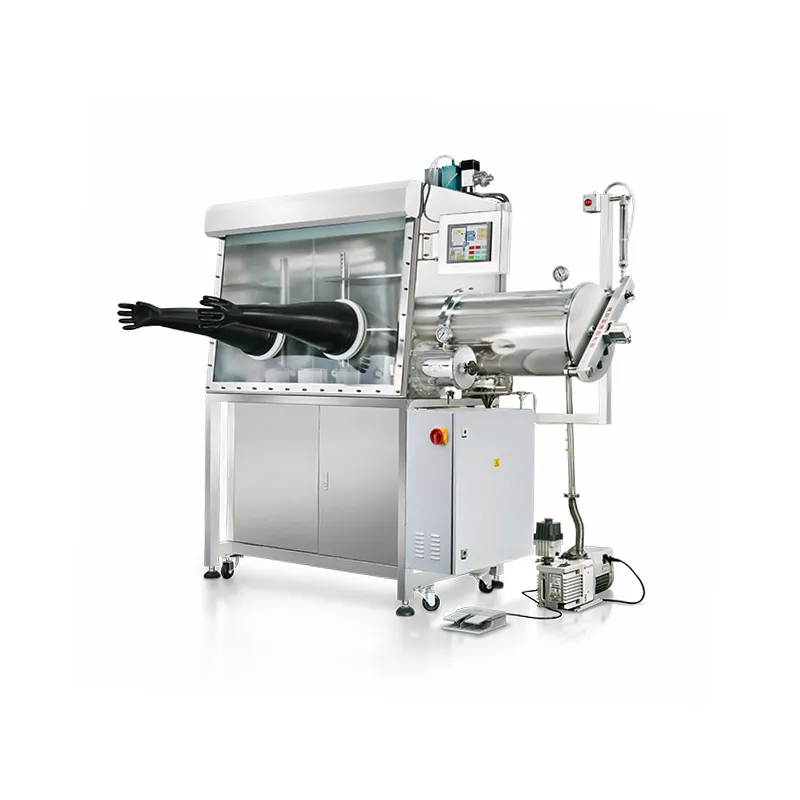

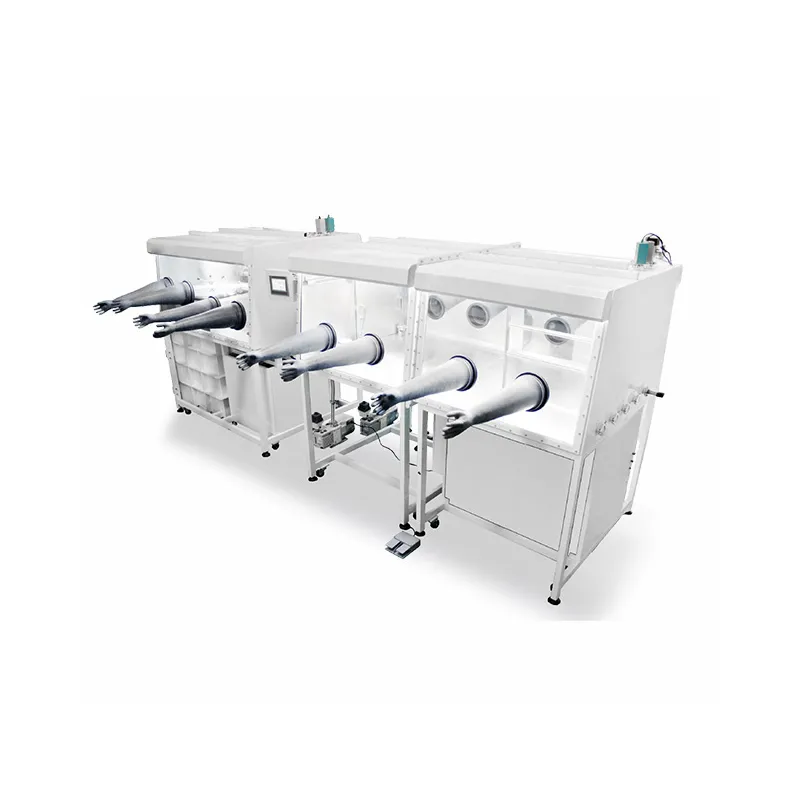

Glove Box for Lithium Battery | Single Station Vacuum Glove Box | GN-01 | CE/ISO Certified
Product Overview
The GN-01 Glove Box for Lithium Battery is a precision-engineered single-station inert atmosphere system designed specifically for lithium battery research, development, and assembly. We developed this advanced glove box to provide the ultra-low moisture and oxygen environment essential for handling moisture-sensitive battery materials such as electrolytes, electrodes, and separators.
This high-quality glove box features a closed recirculation system that continuously removes water and oxygen from the inert gas atmosphere. The integrated purification unit automatically regenerates the filter materials via program control, ensuring consistent performance with minimal maintenance. Furthermore, the system achieves water and oxygen levels below 1 ppm – ideal for lithium battery applications requiring <11 ppm moisture.
With a spacious 304 stainless steel chamber (1220×750×900mm), integrated airlock chamber, precision PLC control, and comprehensive safety features, this glove box for lithium battery provides the perfect environment for:
- Lithium battery assembly
- Electrolyte filling
- Electrode handling
- Moisture-sensitive material processing
- Coin cell and pouch cell fabrication
Business & Logistics Information
| Parameter | Details |
|---|---|
| Place of Origin | China |
| Brand Name | Gelon |
| Model Number | GN-01 |
| Certification | CE, ISO |
| Minimum Order Quantity | 1 pc |
| Packaging Details | Wood |
| Delivery Time | 5-8 work days |
| Payment Terms | T/T, Western Union, MoneyGram |
| Supply Ability | 100 pcs per day |
| Warranty | 1 Year |
Key Design Features
1. Ultra-Low H₂O/O₂ Environment
This glove box for lithium battery achieves exceptional purity:
- Water and oxygen levels: <1 ppm under standard conditions (20°C, 65% RH, 1 atm, with 99.999% inert gas source)
- Meets and exceeds lithium battery requirements (<11 ppm moisture)
- Ideal for moisture-sensitive materials and processes
2. Closed Recirculation System
- Inert gas recirculates through circulating fan and purifier
- Continuous removal of water and oxygen
- Maintains consistent atmosphere purity throughout operation
3. Automatic Regeneration Control
- Program-controlled regeneration of purification materials
- Automatically restores filter capacity when saturated
- Minimizes maintenance downtime and ensures consistent performance
4. Automatic Cleaning Function
- Cleaning valves control gas replacement in the glove box
- Easy atmosphere exchange when needed
- Simplified operation for changing between different inert gases
5. PLC Pressure Control
- Pressure freely settable within ±10mbar
- Automatic protection activates if pressure exceeds ±12mbar
- Maintains safe, stable operating conditions
6. Automatic Vacuum Pump Operation
- Vacuum pump starts automatically when required by the system
- Integrated into the control logic for seamless operation
7. High-Quality 304 Stainless Steel Construction
- Case material: 304 stainless steel sheet
- Inner dimensions: 1220mm (L) × 750mm (D) × 900mm (H)
- Corrosion-resistant, durable, and easy to clean
8. Integrated Airlock Chamber
- Airlock dimensions: OD360 × 600mm
- Allows material transfer without compromising main chamber atmosphere
- Efficient sample introduction and removal
9. High-Performance Gloves
- Glove port size: 70mm diameter
- 2″ gloves included with:
- Increased stretching, bending ability, and tear strength
- Strong resistance to aromatics, hydrocarbons, solvents, fats, and acids
- Clamps and sealing flanges included for secure installation
10. Transparent Front Panel
- Dimension: 1200mm (L) × 700mm (W)
- Made of transparent plastic for excellent visibility
- Removable for placing larger devices inside the chamber
11. Advanced Purification System
- Automatic moisture removal to <1 ppm
- Precision Humidity Analyzer with KF40 flange, accuracy ±0.1 ppm
- Regeneration Temperature Controller built-in for automatic filter regeneration
- Automatic pressure control maintains constant level
12. PLC Touch Panel Control
- Removable control panel – can be placed anywhere for easy operation
- Set and display humidity and pressure levels
- User-friendly interface for monitoring and control
13. Purification Pipeline
- 304 stainless steel construction
- KF40 port for connections
14. Heavy-Duty Vacuum Pump
- Capacity: 90 m³/h, frequency conversion
- Specification: 8 m³/h (12 m³/h optional), rotary pump with oil mist filter
- Includes filter for faster vacuum and moisture removal
- Stainless steel vacuum bellow and valve included
15. Low Leakage Rate
- Leakage rate in glove box chamber: <3 Torr/hour
- Ensures atmosphere integrity over extended periods
Technical Specifications
| Parameter | Value | Remarks |
|---|---|---|
| Product Name | Single Working Station Vacuum Glove Box | |
| Model | GN-01 | |
| Working Voltage | 220V 50/60Hz, Single Phase | |
| Case Material | 304 stainless steel sheet | |
| Inner Dimensions (L×D×H) | 1220 × 750 × 900 mm | |
| Max. Positive Pressure | 810 Torr | Flowing gas only, not designed for vacuum |
| Airlock Chamber Dimensions | OD360 × 600 mm | With airlift |
| Glove Port Size | 70 mm (diameter) | |
| Gloves | 2″ included | Chemical resistant |
| Transparent Front Panel (L×W) | 1200 × 700 mm | Removable |
| Purification System | Automatic moisture removal | <1 ppm H₂O/O₂ |
| Humidity Analyzer | Precision with KF40 flange | Accuracy ±0.1 ppm |
| Regeneration | Automatic with temperature controller | |
| Pressure Control | PLC automatic | ±10mbar settable, protection at ±12mbar |
| Control Panel | PLC touch screen | Removable |
| Purification Pipeline | 304 stainless steel | KF40 port |
| Vacuum Pump Capacity | 90 m³/h | Frequency conversion |
| Vacuum Pump Specification | 8 m³/h (12 m³/h optional) | Rotary pump with oil mist filter |
| Leakage Rate | <3 Torr/hour | |
| Working Gasses | Atmospheric Gases, N2, Argon | |
| Regeneration Gas | 95% N2 + 5% H2 | |
| Gas Filling | Float meter on front | Accurate gas filling |
| Warranty | One-year limited | Lifetime support |
How This Glove Box for Lithium Battery Works
Step 1: Inert Gas Introduction
You introduce your chosen inert gas (N₂, Argon, or atmospheric gases) into the glove box. The system is designed for 99.999% pure inert gas sources for optimal performance.
Step 2: Closed Recirculation Purification
The circulating fan continuously moves inert gas through the purifier, which removes water and oxygen. This closed-loop system maintains ultra-low impurity levels.
Step 3: Atmosphere Monitoring
The precision humidity analyzer continuously monitors moisture levels with ±0.1 ppm accuracy. The PLC touch panel displays real-time humidity and pressure data.
Step 4: Automatic Regeneration
When the purifier materials become saturated, the system automatically initiates program-controlled regeneration, restoring filter capacity without manual intervention.
Step 5: Pressure Control
The PLC pressure control system maintains your set pressure within ±10mbar. If pressure exceeds ±12mbar, automatic protection activates for safety.
Step 6: Material Transfer
Use the airlock chamber to transfer materials in and out without compromising the main chamber atmosphere. The airlock can be evacuated and refilled with inert gas before opening to the main chamber.
Step 7: Battery Assembly
With the atmosphere maintained at <1 ppm H₂O/O₂, you can safely handle moisture-sensitive materials and perform lithium battery assembly operations through the glove ports.
Applications
- Lithium Battery Assembly: Pouch cell, coin cell, and cylindrical cell fabrication
- Electrolyte Filling: Moisture-sensitive electrolyte handling
- Electrode Processing: Handling cathodes, anodes, and separators
- Materials Research: Studying air-sensitive battery materials
- Solid-State Battery Development: Processing moisture-sensitive solid electrolytes
- University Laboratories: Battery research and education
- R&D Facilities: Developing new battery chemistries and formats
Why Choose Gelon GN-01 Glove Box for Lithium Battery
- Ultra-Low Impurities: Achieves <1 ppm H₂O and O₂ – exceeding lithium battery requirements (<11 ppm) and providing confidence in your experimental results.
- 304 Stainless Steel Construction: The chamber is built from high-quality 304 stainless steel for durability, corrosion resistance, and easy cleaning – essential for battery research environments.
- Automatic Regeneration: Unlike manual systems, the program-controlled regeneration maintains purifier performance automatically, reducing maintenance and ensuring consistent atmosphere quality.
- Precision PLC Control: The removable touch panel puts full control at your fingertips. Set and monitor pressure and humidity levels with ease.
- Spacious Work Area: The 1220×750×900mm chamber provides ample space for equipment and materials, while the removable front panel allows easy insertion of larger devices.
- Integrated Airlock: The 360×600mm airlock chamber enables efficient material transfer without compromising the main atmosphere.
- Chemical-Resistant Gloves: Included 2″ gloves resist aromatics, hydrocarbons, solvents, fats, and acids – ideal for battery electrolyte handling.
- Low Leakage Rate: With <3 Torr/hour leakage, you can maintain stable conditions for extended experiments.
- CE/ISO Certified: We certified this equipment to meet stringent international safety and quality standards.
- Fast Delivery: With 5-8 work days delivery and 100 units per day supply capacity, we ensure rapid availability.
- Comprehensive Warranty: One-year limited warranty with lifetime support (rusting and damage due to improper storage or maintenance excluded).
Complete Battery Solutions from Gelon
The GN-01 Glove Box for Lithium Battery is part of Gelon’s comprehensive lithium battery equipment line. We offer a complete ecosystem for battery research and production:
1. Full Set of Lithium Battery Materials
- Cathode Materials: LiMn₂O₄, LTO, LiNiMnCoO₂ (NMC), LiCoO₂
- Anode Materials: Graphite (MCMB), natural graphite
- Current Collectors: Aluminum foil, copper foil, carbon coated copper foil
- Separators: Battery separator
- Aluminum Laminated Film: For pouch cell cases
- Electrolyte: Various formulations
2. Full Set of Lithium Battery Production Equipment
Complete laboratory and production equipment including:
- Mixing machine → Coating machine → Oven → Rolling machine
- Slitting machine → Stacking machine → Winding machine → Sealing machine
- Glove box for lithium battery → Battery testers → And more…
3. Full Set of Lithium Battery Technology
- Laboratory Design: We can design your battery lab according to your requirements
- Production Line Design: Complete production line layout and configuration
- Process Support: Technical guidance for battery manufacturing
Frequently Asked Questions (FAQ)
Q: What purity levels can this glove box for lithium battery achieve?
A: Under standard conditions (20°C, 65% RH, 1 atm, with 99.999% inert gas source), the system achieves <1 ppm for both water and oxygen – well below the <11 ppm requirement for lithium battery assembly.
Q: What are the inner dimensions of the main chamber?
A: The inner dimensions are 1220mm (L) × 750mm (D) × 900mm (H) , providing ample workspace.
Q: What material is the chamber made from?
A: The chamber is constructed from 304 stainless steel sheet for durability and corrosion resistance.
Q: Does it include an airlock?
A: Yes. It features an airlock chamber with airlift, dimensions OD360 × 600mm.
Q: What gloves are included?
A: We include 2″ chemical-resistant gloves with excellent resistance to aromatics, hydrocarbons, solvents, fats, and acids. Glove port size is 70mm diameter.
Q: How is the atmosphere purified?
A: The system uses closed recirculation through a purifier, with automatic regeneration of purification materials via program control.
Q: How is humidity monitored?
A: A precision humidity analyzer with KF40 flange and ±0.1 ppm accuracy continuously monitors moisture levels.
Q: How is pressure controlled?
A: The PLC pressure control system allows free setting within ±10mbar, with automatic protection at ±12mbar.
Q: What vacuum pump is included?
A: We include a heavy-duty vacuum pump with 90 m³/h capacity (frequency conversion), 8 m³/h specification (12 m³/h optional), rotary pump with oil mist filter. Stainless steel vacuum bellow and valve are included.
Q: What is the leakage rate?
A: The leakage rate in the glove box chamber is <3 Torr/hour, ensuring atmosphere integrity.
Q: What gases can be used?
A: The system works with atmospheric gases, N2, and Argon. Regeneration gas is 95% N2 + 5% H2.
Q: Is the front panel removable?
A: Yes. The transparent front panel (1200×700mm) is removable for placing larger devices inside the chamber.
Q: Is the control panel movable?
A: Yes. The PLC touch panel is removable and can be placed anywhere for easy operation.
Q: Is the glove box CE and ISO certified?
A: Yes, this equipment is CE and ISO certified, meeting international safety and quality standards.
Q: What is the warranty?
A: We provide a one-year limited warranty with lifetime support. Rusting and damage due to improper storage or maintenance are not covered.
Q: What is the delivery time?
A: Standard delivery is 5-8 work days after order confirmation.
Shipping and Packaging Information
- Packaging: Wood packaging ensures safe international delivery
- Shipping Methods: We offer various shipping options based on your location and timeline
