High Accuracy Slot Die Coating Machine for Roll to Roll Pouch Cell Electrode Production | GN-S360
PRODUCT PARAMETERS
Description
Slot Die Coating Machine for Pouch Cells | High Accuracy Roll to Roll Coater | GN-S360 | CE/ISO Certified
Product Overview

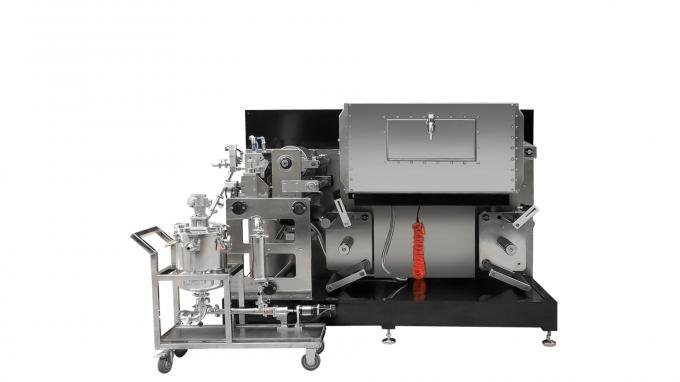

The GN-S360 Slot Die Coating Machine is a high-precision, all-in-one roll-to-roll coating system designed specifically for lithium battery electrode production. We engineered this advanced slot die coating machine to meet the demanding requirements of R&D laboratories and pilot production lines, where accuracy, flexibility, and repeatability are essential for developing high-quality pouch cells.
This versatile slot die coating machine supports two coating methods – doctor blade coating and slot die extrusion coating – allowing you to switch between techniques by changing the coating mode and coating head assembly. This flexibility makes it ideal for exploring different coating processes and optimizing electrode formulations.
Furthermore, this slot die coating machine offers exceptional precision:
- Coating accuracy: ±2.5μm
- Coating thickness range: 8 – 400μm
- Coating width: 300mm (customizable)
- Coating speed: 0.1 – 1.0 m/min (with mechanical speed up to 7.5 m/min)
With integrated drying oven, tension control, and user‑friendly operation, this slot die coating machine delivers the performance required for professional battery research and development.
Business & Logistics Information
| Parameter | Details |
|---|---|
| Place of Origin | China |
| Brand Name | Gelon |
| Model Number | GN-S360 |
| Certification | CE, ISO |
| Minimum Order Quantity | 1 set |
| Price | USD 85,380 – 105,380 per set |
| Packaging Details | Plywood box |
| Delivery Time | 30 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 5 sets per month |
| Warranty | 1 Year |
Key Design Features
1. Dual Coating Methods in One Machine
We engineered this slot die coating machine to support two coating techniques:
| Coating Method | Description | Applications |
|---|---|---|
| Doctor Blade Coating | Continuous coating with wider process window | Rapid prototyping, material screening |
| Slot Die Extrusion Coating | Precision coating with die head, screw pump feed, and coating valve | Continuous coating, gap coating, stripe coating, grid coating |
This dual‑method design eliminates the need for separate equipment, saving space and investment.
2. Exceptional Coating Precision
This slot die coating machine delivers industry‑leading accuracy:
- Coating accuracy: ±2.5μm
- Coating thickness range: 8 – 400μm
- Coating tolerance: ≤±1.0mm
- Average length tolerance: ≤±1.0mm
- Average width tolerance: ≤±1.0mm
3. Wide Material Compatibility
Substrate Parameters
| Parameter | Cathode | Anode |
|---|---|---|
| Substrate | Aluminum foil | Copper foil |
| Width | 100 – 320 mm | 100 – 320 mm |
| Thickness | 0.010 – 0.030 mm | 0.006 – 0.030 mm |
Slurry Parameters
| Parameter | Cathode | Anode |
|---|---|---|
| Materials | LCO, LFP, LMO, NMC | Graphite, LTO, etc. |
| Solvent | NMP (Oily) / DI‑water (Water‑based) | |
| Slurry Density (g/cm³) | 1.5 – 3.0 | 1.0 – 2.0 |
| Viscosity (cps) | 2000 – 20,000 | 1000 – 10,000 |
| Binder | PVDF / SBR |
4. Versatile Coating Capabilities
The slot die extrusion system enables multiple coating patterns:
- Continuous coating – uniform coating across the entire substrate
- Gap coating – patterned with spaces
- Stripe coating – multiple parallel stripes
- Grid coating – precise patterned grids
5. Integrated Drying System
- Drying oven length: 1.0m per section (total 1.0m)
- Oven temperature: Up to 150°C, ±5°C uniformity
- Heat source: Electric heating with hot air circulation
- Construction: Stainless steel inner tank (SUS304) with SUS201 housing
6. Flexible Speed Control
- Mechanical tape speed: 0.5 – 7.5 m/min
- Coating speed: 0.1 – 1.0 m/min (adjustable based on slurry properties)
- Speed can be customized for specific applications (e.g., ultracapacitors can reach ~2 m/min)
7. High-Quality Construction
- Maximum coating roll width: 360mm
- Maximum coating width: 300mm
- Power supply: 380V 50Hz, 6KW
- Weight: 1200kg
Technical Specifications
| Parameter | Value | Remarks |
|---|---|---|
| Product Name | High Accuracy Roll to Roll Pouch Cell Coating Machine | Slot die coating |
| Coating Method | Slot die coating / Doctor blade coating | Dual‑method design |
| Coating Thickness | 8 – 400 μm | Viscosity dependent |
| Coating Accuracy | ±2.5 μm | |
| Coating Width (Max) | 300 mm | Customizable |
| Coating Roll Width (Max) | 360 mm | |
| Coating Tolerance | ≤±1.0 mm | |
| Average Length Tolerance | ≤±1.0 mm | |
| Average Width Tolerance | ≤±1.0 mm | |
| Mechanical Tape Speed | 0.5 – 7.5 m/min | |
| Coating Speed | 0.1 – 1.0 m/min | Customizable |
| Drying Oven Length | 1.0 m (1 part × 1.0m) | |
| Oven Temperature (Max) | 150°C | ±5°C uniformity |
| Power Supply | 380V 50Hz, 6KW | |
| Weight | 1200 kg |
How This Slot Die Coating Machine Works
Step 1: Substrate Loading
First, you load the substrate (aluminum foil for cathodes or copper foil for anodes) onto the unwinding station. The machine accepts widths from 100mm to 320mm.
Step 2: Coating Method Selection
You select the desired coating method:
- Doctor blade coating for simple continuous coating
- Slot die extrusion with die head and screw pump feed for precision patterned coating
Step 3: Parameter Setup
You set the coating parameters via the control system:
- Coating thickness: 8 – 400μm
- Coating speed: 0.1 – 1.0 m/min
- Coating pattern: Continuous, gap, stripe, or grid
Step 4: Precision Coating
The substrate passes through the coating head. The slot die coating system applies slurry with ±2.5μm accuracy, ensuring uniform thickness across the entire 300mm coating width.
Step 5: Drying
The coated electrode enters the 1.0m drying oven with hot air circulation at up to 150°C (±5°C uniformity) . Solvent is removed efficiently, preparing the electrode for the next stage.
Step 6: Rewinding
After drying, the finished electrode is rewound onto a roll, ready for calendaring and assembly.
Applications
- Lithium Battery Electrode R&D: Developing new cathode and anode formulations
- Pilot Production: Small‑scale electrode manufacturing for prototype cells
- Material Characterization: Testing slurry properties and coating parameters
- University Research: Studying coating behavior and electrode performance
- Ultracapacitor Coating: Faster coating speeds up to 2 m/min
Why Choose Gelon GN-S360 Slot Die Coating Machine
- Dual Coating Methods: Unlike single‑method coaters, this slot die coating machine supports both doctor blade and slot die extrusion, giving you maximum flexibility for R&D.
- Exceptional Precision: With ±2.5μm coating accuracy and tolerances ≤±1.0mm, you achieve consistent, repeatable results – critical for battery performance.
- Wide Material Compatibility: Handles aluminum foil (0.010‑0.030mm) and copper foil (0.006‑0.030mm) with widths up to 320mm.
- Versatile Coating Patterns: Slot die extrusion enables continuous, gap, stripe, and grid coating – perfect for advanced electrode designs.
- Integrated Drying System: The 1.0m oven with hot air circulation and ±5°C uniformity ensures efficient solvent removal.
- User‑Friendly Operation: Intuitive controls and dual‑mode design make this slot die coating machine easy to operate and maintain.
- CE/ISO Certified: We certified this equipment to meet stringent international safety and quality standards.
- Fast Delivery: With 30 working days delivery and 5 sets per month supply capacity, we ensure rapid availability.
Complete Battery Solutions from Gelon
The GN-S360 Slot Die Coating Machine is part of Gelon’s comprehensive lithium battery equipment line. We offer a complete ecosystem for battery research and production:
1. Full Set of Lithium Battery Materials
- Cathode Materials: LiMn₂O₄, LTO, LiNiMnCoO₂ (NMC), LiCoO₂
- Anode Materials: Graphite (MCMB), natural graphite
- Current Collectors: Aluminum foil, copper foil, carbon coated copper foil
- Separators: Battery separator
- Electrolyte: Various formulations
2. Full Set of Lithium Battery Production Equipment
Complete production equipment including:
- Mixing machine → Slot die coating machine → Oven → Rolling machine
- Slitting machine → Stacking machine → Winding machine → Sealing machine
- Glove boxes → Battery testers → And more…
3. Turn-Key Project Solutions
We offer one‑stop turn‑key solutions for:
- Lithium battery laboratories
- Mobile battery pilot lines
- EV battery production lines
Frequently Asked Questions (FAQ)
Q: What coating methods does this slot die coating machine support?
A: It supports both doctor blade coating (continuous) and slot die extrusion coating (continuous, gap, stripe, grid). Switching between methods is easy by changing the coating mode and head assembly.
Q: What is the coating accuracy?
A: The machine delivers ±2.5μm coating accuracy with tolerances ≤±1.0mm.
Q: What substrate materials can it handle?
A: It handles aluminum foil for cathodes (0.010‑0.030mm thickness) and copper foil for anodes (0.006‑0.030mm thickness), with widths from 100‑320mm.
Q: What is the maximum coating width?
A: Maximum coating width is 300mm, with a maximum coating roll width of 360mm. Custom widths are available on request.
Q: What coating speed can I achieve?
A: Coating speed ranges from 0.1 to 1.0 m/min. Mechanical tape speed can reach 7.5 m/min. For ultracapacitors, speeds up to 2 m/min are possible.
Q: What is the drying oven configuration?
A: The machine includes a 1.0m drying oven (1 part × 1.0m) with hot air circulation. Maximum temperature is 150°C with ±5°C uniformity.
Q: What power supply is required?
A: The machine requires 380V 50Hz with 6KW power consumption.
Q: How much does it weigh?
A: The machine weighs approximately 1200kg.
Q: Is the machine CE and ISO certified?
A: Yes, this equipment is CE and ISO certified, meeting international safety and quality standards.
Q: What is the delivery time?
A: Standard delivery is 30 working days after order confirmation.
Shipping and Packaging Information
- Packaging: Plywood box ensures safe international delivery
- Shipping Methods: We offer various shipping options based on your location and timeline
