High Precision Roll To Roll Integrated Calendaring & Slitting Machine for Lithium Ion Batteries
PRODUCT PARAMETERS
Description
Integrated Calendaring and Slitting Machine for Lithium Battery Electrodes | 700mm Width | 400T Pressure | CE Certified
Product Overview

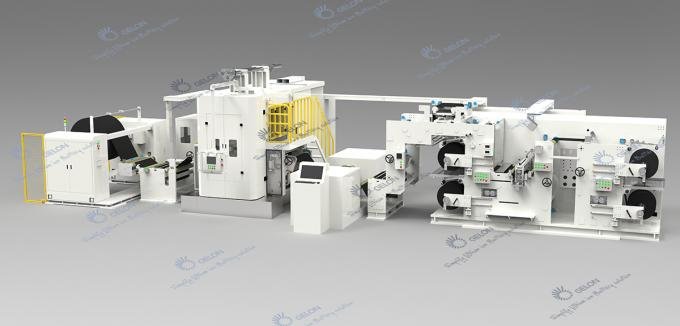

The Gelon Integrated Calendaring and Slitting Machine is a state-of-the-art, high-precision system engineered to combine two critical electrode production processes – calendaring and slitting – into a single, efficient roll-to-roll operation. We developed this advanced machine to streamline lithium-ion battery manufacturing by eliminating the need for separate equipment, reducing handling, and improving overall production efficiency.
This integrated machine first continuously calenders the positive or negative electrodes after coating using a powerful hydraulic roller system, achieving the precise thickness required by your process. Immediately afterward, it slits the calendared electrode into 2 to 4 strips of the desired width and rewinds them with precise alignment – all in one continuous pass.
With an effective rolling width of 700mm, 800×800mm rollers, and a massive 400-ton maximum working pressure, this machine delivers industrial-scale performance. Furthermore, it achieves exceptional precision with calendaring accuracy ≤ ±2μm, width cutting accuracy ≤ ±0.3mm, and correction accuracy ≤ 0.1mm. The result is a high-quality electrode ready for the next stage of battery assembly.
Business & Logistics Information
| Parameter | Details |
|---|---|
| Place of Origin | China |
| Brand Name | Gelon |
| Model Number | Automatic Calendaring and Slitting Machine |
| Certification | CE |
| Minimum Order Quantity | 1 set |
| Packaging Details | Standard packing / Wood packing |
| Delivery Time | 20 – 35 days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 20 sets per month |
| Warranty | 1 Year |
Why Choose an Integrated Calendaring and Slitting Machine?
Traditional electrode production requires separate calendaring and slitting machines, which means additional floor space, extra material handling, and potential alignment issues between processes. Our integrated calendaring and slitting machine solves these challenges by:
- Combining two processes – calendaring and slitting in one continuous line
- Reducing labor and handling – fewer transfers between machines
- Saving valuable floor space – one machine instead of two
- Improving alignment accuracy – no re-alignment needed between steps
- Increasing throughput – continuous operation from coated roll to slit rolls
- Ensuring consistent quality – integrated control of both processes
Key Design Features
1. High-Pressure Hydraulic Calendaring System
We equipped this integrated machine with a powerful hydraulic roller press that delivers up to 400 tons of working pressure. The 800×800mm rollers with hardness of HRC66-68 ensure uniform compression across the entire 700mm effective rolling width.
2. Exceptional Calendaring Precision
The system achieves ≤ ±2μm calendaring accuracy, ensuring consistent electrode density and thickness – critical factors for battery performance and cycle life.
3. Integrated Precision Slitting
Immediately after calendaring, the electrode passes to the integrated slitting station where it is cut into 2 to 4 strips with width cutting accuracy ≤ ±0.3mm. The cutting burrs are strictly controlled:
- Foil burrs: ≤10μm
- Vertical direction of coating area: ≤7μm
4. High-Accuracy Correction System
The machine features a correction accuracy of ≤ 0.1mm, ensuring the electrode remains perfectly aligned throughout both calendaring and slitting processes.
5. Wide Electrode Compatibility
- Incoming electrode width: 50 – 800mm
- Flexible to handle various electrode formats
- Suitable for both cathode and anode electrodes
6. Robust Industrial Construction
- Roll diameter: Φ800 × 800mm (customizable)
- Roll hardness: HRC66-68 for long service life
- Power: 120KW
- Voltage and frequency: AC380V / 50Hz
7. Fully Automatic Operation
The roll-to-roll design ensures continuous, uninterrupted production with minimal operator intervention.
Technical Specifications
| Parameter | Value | Remarks |
|---|---|---|
| Product Name | Roll To Roll Integrated Calendaring & Slitting Machine | / |
| Brand | Gelon | / |
| Effective Rolling Width | 700 mm | / |
| Roll Size | Φ800 × 800 mm | Can be customized |
| Max Working Pressure | 400 T | / |
| Roll Hardness | HRC66 – 68 | / |
| Calendaring Accuracy | ≤ ±2 μm | / |
| Correction Accuracy | ≤ 0.1 mm | / |
| Width Cutting Accuracy | ≤ ±0.3 mm | / |
| Cutting Burrs | Foil: ≤10μm, Coating area vertical: ≤7μm | / |
| Incoming Electrode Width | 50 – 800 mm | / |
| Number of Slit Strips | 2 – 4 | / |
| Power | 120 KW | / |
| Voltage / Frequency | AC380V / 50Hz | / |
| Warranty | 1 Year | / |
How the Integrated Calendaring and Slitting Machine Works
Step 1: Electrode Feeding
The coated electrode roll (cathode or anode) is loaded onto the unwinding station. The incoming electrode width can range from 50mm to 800mm.
Step 2: Precision Calendaring
The electrode passes through the 800×800mm hydraulic rollers under up to 400 tons of pressure. The rollers, with hardness HRC66-68, compress the coating to the target density with ≤ ±2μm accuracy.
Step 3: Continuous Slitting
Immediately after calendaring, the electrode enters the integrated slitting station. Here, it is precisely cut into 2 to 4 strips with width cutting accuracy ≤ ±0.3mm. The cutting burrs are strictly controlled to ≤10μm on foil and ≤7μm on coating vertical direction.
Step 4: Alignment and Rewinding
Throughout the process, the correction system maintains alignment with ≤0.1mm accuracy. The slit strips are rewound onto separate rolls, perfectly aligned and ready for the next production stage.
Step 5: Quality Assurance
All parameters – pressure, thickness, slit width, alignment – are continuously monitored to ensure consistent, high-quality output.
Applications
- Lithium Ion Battery Electrode Production: Calendaring and slitting of both cathode and anode electrodes
- Electric Vehicle Batteries: High-volume production of automotive-grade electrodes
- Energy Storage Systems: Consistent quality for stationary storage applications
- Consumer Electronics: Precision electrodes for laptops, phones, and tablets
- Large-Format Prismatic Cells: Wide electrodes up to 800mm width
Why Choose Gelon Integrated Calendaring and Slitting Machine
- Two Machines in One: By combining calendaring and slitting, this integrated machine saves valuable floor space, reduces material handling, and improves production efficiency.
- Ultra-High Precision: With ≤ ±2μm calendaring accuracy, ≤ ±0.3mm slitting accuracy, and ≤0.1mm correction accuracy, you achieve electrode quality that meets the strictest battery manufacturing standards.
- Industrial-Grade Power: The 400-ton hydraulic system and 120KW power deliver the force needed for high-density electrode compression, even for thick coatings.
- Exceptional Durability: HRC66-68 roller hardness and robust construction ensure years of reliable service in demanding production environments.
- Wide Format Flexibility: Handles incoming electrode widths from 50mm to 800mm, accommodating a broad range of cell formats.
- Tight Burr Control: Cutting burrs limited to ≤10μm on foil and ≤7μm on coating – critical for preventing internal short circuits.
- CE Certified: We certified this equipment for international markets, meeting stringent safety and quality standards.
- Comprehensive Support: Every machine comes with a 1-year warranty and access to our technical support team.
Complete Battery Solutions from Gelon
This Integrated Calendaring and Slitting Machine is part of Gelon’s comprehensive lithium battery equipment line. We offer a complete ecosystem for battery production:
1. Full Set of Lithium Battery Materials
- Cathode Materials: LiMn₂O₄, LTO, LiNiMnCoO₂ (NMC), LiCoO₂
- Anode Materials: Graphite (MCMB), natural graphite
- Current Collectors: Aluminum foil, copper foil
- Separators: Battery separator
- Electrolyte: Various formulations
2. Full Set of Lithium Battery Production Equipment
Complete production equipment including:
- Mixing machine → Coating machine → Oven → Integrated calendaring and slitting machine
- Welding machine → Stacking machine → Winding machine → Sealing machine
- Vacuum ovens → Glove boxes → And more…
3. Full Set of Lithium Battery Technology
- Laboratory Design: We can design your battery lab according to your requirements
- Production Line Design: Complete production line layout and configuration
- Process Support: Technical guidance for battery manufacturing
Frequently Asked Questions (FAQ)
Q: What is the main advantage of an integrated calendaring and slitting machine?
A: The primary advantage is combining two processes into one continuous line, which saves floor space, reduces material handling, eliminates alignment issues between steps, and increases overall production efficiency.
Q: What is the maximum electrode width this machine can handle?
A: The incoming electrode width ranges from 50mm to 800mm, with an effective rolling width of 700mm.
Q: What calendaring accuracy can I expect?
A: The machine achieves ≤ ±2μm calendaring accuracy, ensuring consistent electrode thickness and density.
Q: What is the slitting accuracy?
A: Width cutting accuracy is ≤ ±0.3mm, and cutting burrs are controlled to ≤10μm on foil and ≤7μm on coating vertical direction.
Q: How many strips can it slit at once?
A: The machine can slit the calendared electrode into 2 to 4 strips of the desired width.
Q: What is the maximum working pressure?
A: The hydraulic system delivers up to 400 tons of working pressure.
Q: What are the roller specifications?
A: Roller size is Φ800 × 800mm (customizable) with hardness of HRC66-68.
Q: What power supply is required?
A: The machine requires AC380V / 50Hz with 120KW power.
Q: What is the correction accuracy?
A: The correction system maintains alignment with ≤0.1mm accuracy throughout the process.
Q: Is the machine CE certified?
A: Yes, this equipment is CE certified, meeting international safety and quality standards.
Q: What is the delivery time?
A: Standard delivery is 20 to 35 days after order confirmation.
Q: Do you offer turn-key solutions?
A: Yes. We provide one-stop solutions (turn-key projects) including full sets of lithium battery materials, equipment, and technology. We can design your laboratory or production line according to your requirements.
