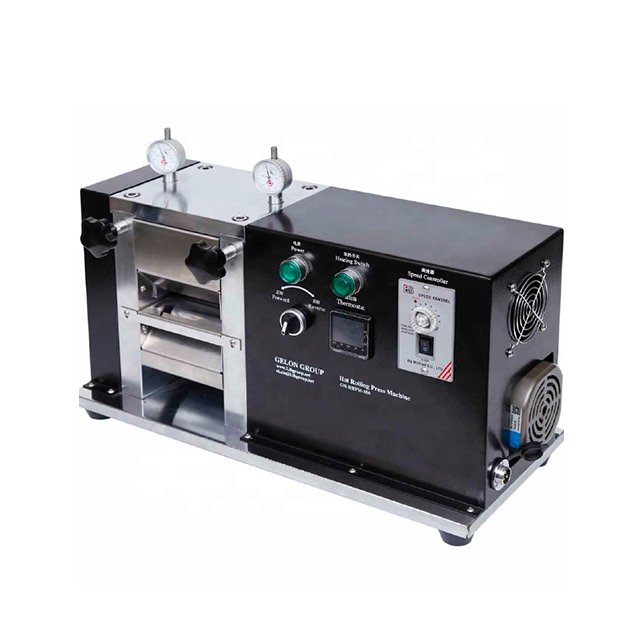

Hot Roller Press Machine for Battery Electrode Calendaring
PRODUCT PARAMETERS
Description
Hot Roller Press Machine for Battery Electrode Calendaring | 100mm Width | MR-100H | CE Certified
Product Overview
The MR-100H Hot Roller Press Machine is a precision-engineered calendaring system designed specifically for lithium battery electrode production in R&D laboratories and small-scale manufacturing environments. We developed this compact roller press to deliver professional-grade electrode compression with the added benefit of integrated heating capability.
This versatile machine features dual Φ96mm cylindrical rollers with exceptional ≤±2um precision and surface hardness of HRC62. The rollers receive a high-quality chrome plating that achieves a finish greater than 0.8, ensuring smooth, consistent electrode compression without surface defects.
Furthermore, we designed this hot roller press with flexibility in mind. You can operate it with or without heating, depending on your material requirements. The adjustable thermostat temperature control allows you to optimize the calendaring process for different electrode chemistries. With a rolling width of 0-100mm, adjustable gap from 0-2mm, and feed speed up to 40mm/s, this machine accommodates a wide range of electrode sizes and materials.
Business & Logistics Information
| Parameter | Details |
|---|---|
| Place of Origin | China |
| Brand Name | Gelon |
| Model Number | MR-100H |
| Certification | CE |
| Minimum Order Quantity | 1 PC |
| Packaging Details | Standard Export Packaging |
| Delivery Time | 5-10 work days |
| Payment Terms | T/T, L/C, Western Union, MoneyGram |
| Supply Ability | 10 Pcs/Week |
| Warranty | 1 Year |
Key Design Features
1. Precision Cylindrical Rollers
We equipped this hot roller press with dual Φ96mm cylindrical rollers that achieve ≤±2um precision. This exceptional accuracy ensures consistent electrode thickness across the entire rolling width – critical for battery performance and uniformity.
2. Superior Roller Hardness and Finish
The rollers feature:
- Surface hardness: HRC62 – provides exceptional wear resistance
- Surface finish: Greater than 0.8 – ensures smooth, defect-free electrode surfaces
- Chrome plating: Prevents rust and corrosion, extending roller life

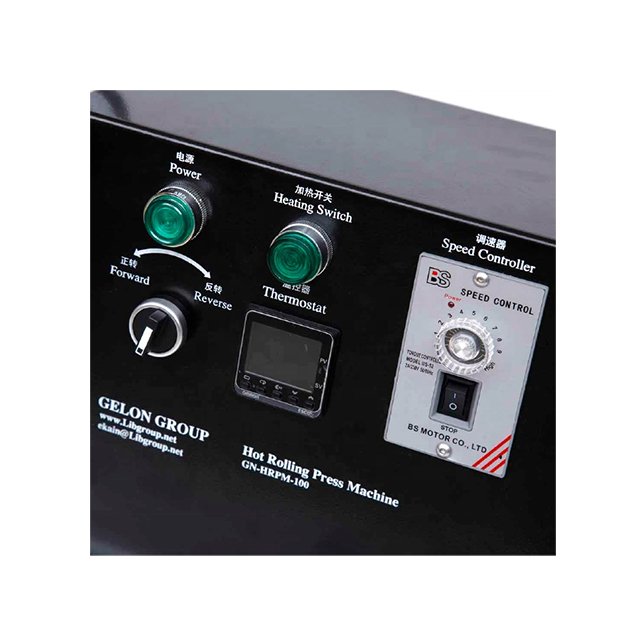

3. Integrated Heating System
The adjustable thermostat temperature control allows you to perform hot roller pressing. You can:
- Optimize electrode density through warm calendaring
- Improve material adhesion and coating integrity
- Choose to operate with or without heating based on your material requirements
- Achieve consistent temperature distribution across the roller surface
4. Precise Gap Adjustment
We incorporated a ramp adjustment mechanism that provides:
- 0-2mm adjustable rolling thickness
- High precision adjustment for fine control
- Easy, repeatable setup for different electrode thicknesses
5. Variable Speed Control
The feed speed adjusts from 0 to 40mm/s, giving you control over the calendaring process. You can slow down for delicate materials or increase speed for routine production.
6. Compact Benchtop Design
With its small footprint and vertical roller placement, this hot roller press:
- Occupies minimal bench space
- Proves easy to operate and maintain
- Offers flexibility for quick material changes
7. Energy-Efficient Operation
At only 120W power consumption, this machine delivers professional results while minimizing energy costs – ideal for laboratory environments.
Technical Specifications
| Parameter | Value | Remarks |
|---|---|---|
| Product Name | Hot Roller Press Machine | |
| Roll Diameter | 2-Φ96 mm | Dual roller design |
| Rolling Width | 0 – 100 mm | |
| Roll Placement | Vertical | Space-saving design |
| Roll Precision | ≤ ±2 um | Cylindrical roller accuracy |
| Roll Hardness | HRC62 | Surface hardened |
| Rolls Finish | > 0.8 | Smooth surface finish |
| Rolling Thickness | 0 – 2 mm | Gap adjustable |
| Feed Speed | 0 – 40 mm/s | Adjustable |
| Heating System | Adjustable thermostat | Up to 200°C (typical) |
| Operation | Electric with heating option | |
| Power | 120 W | |
| Voltage | AC220V / 50Hz | |
| Weight | 55 kg | |
| Certification | CE |
How the Hot Roller Press Process Works
Step 1: Parameter Setup
First, you set the desired parameters based on your electrode requirements:
- Roll gap: Adjust from 0-2mm using the precision ramp mechanism
- Temperature: Set thermostat for hot roller pressing (or choose unheated operation)
- Speed: Adjust feed rate from 0-40mm/s
Step 2: Electrode Feeding
Next, you feed the coated electrode between the dual Φ96mm rollers. The vertical roller placement makes loading simple and intuitive.
Step 3: Hot Roller Pressing
The electrodes pass through the heated rollers, which apply controlled pressure and temperature to compress the coating to the target density. The ≤±2um roller precision ensures consistent thickness across the entire 0-100mm rolling width.
Step 4: Heat-Assisted Compression
The adjustable thermostat maintains your set temperature throughout the process. Heat improves material flow and density, particularly beneficial for certain electrode chemistries. The hot roller press ensures uniform temperature distribution for consistent results.
Step 5: Collection
The calendared electrode exits the rollers, now optimized with proper density and thickness for subsequent battery assembly steps.
Applications
- Pouch Cell Electrode Production: Hot roller pressing of cathodes and anodes for soft-pack batteries
- Lithium Battery R&D: Developing and testing new electrode formulations with heat assistance
- University Research: Studying electrode compression and temperature effects
- Small-Batch Manufacturing: Producing electrodes for prototype and pilot-scale batteries
- Material Characterization: Evaluating coating adhesion and compressibility under heat
- Quality Control: Verifying electrode thickness and uniformity
Why Choose Gelon MR-100H Hot Roller Press Machine
- Exceptional Roller Precision: The ≤±2um accuracy of our cylindrical rollers ensures consistent electrode thickness – a critical factor for battery performance and reliability.
- Integrated Heating Capability: Unlike standard roller presses, this hot roller press features an adjustable thermostat that lets you optimize the calendaring process with heat. You can choose to operate with or without heating based on your specific requirements.
- Superior Durability: With HRC62 hardness and chrome plating, these rollers resist wear and corrosion, providing years of reliable service.
- Precise Thickness Control: The 0-2mm adjustable gap with precision ramp mechanism gives you fine control over final electrode thickness.
- Compact and Practical: At just 55kg with a small footprint, this hot roller press fits easily into any laboratory while delivering production-grade performance.
- Energy Efficient: With only 120W power consumption, you can operate this machine continuously without significant energy costs.
- User-Friendly Design: The vertical roller placement and intuitive controls make operation simple. You can quickly change materials and adjust parameters.
- CE Certified: We certified this equipment for international markets, meeting stringent safety and quality standards.
- Fast Delivery: With 5-10 work days delivery and 10 units/week supply capacity, you receive your machine quickly.
Complete Battery Solutions from Gelon
The MR-100H Hot Roller Press Machine is part of Gelon’s comprehensive lithium battery equipment line. We offer a complete ecosystem for battery research and production:
1. Full Set of Lithium Battery Materials
- Cathode Materials: LiMn₂O₄, LTO, LiNiMnCoO₂ (NMC), LiCoO₂
- Anode Materials: Graphite (MCMB), natural graphite, and more
- Current Collectors: Aluminum foil, copper foil
- Separators: Battery separator
- Electrolyte: Various formulations
2. Full Set of Lithium Battery Equipment
Complete laboratory and production equipment including:
- Mixing machine → Coating machine → Oven → Hot roller press machine
- Slitting machine → Stacking machine → Winding machine → Sealing machine
- Glove boxes → And more…
3. Full Set of Lithium Battery Technology
- Laboratory Design: We can design your battery lab according to your requirements
- Production Line Design: Complete production line layout and configuration
- Process Support: Technical guidance for battery manufacturing
Frequently Asked Questions (FAQ)
Q: What is the difference between this hot roller press and a standard roller press?
A: The MR-100H features an integrated heating system with adjustable thermostat, allowing you to perform heat-assisted calendaring. This proves particularly beneficial for certain electrode chemistries that require elevated temperatures for optimal density.
Q: What is the maximum electrode width this machine can handle?
A: The rolling width ranges from 0 to 100mm, making it ideal for R&D and small-batch pouch cell production.
Q: What is the roller precision?
A: The cylindrical rollers achieve ≤±2um precision, ensuring exceptional thickness uniformity.
Q: What temperature range can I achieve?
A: The adjustable thermostat typically reaches up to 200°C, though optimal temperatures depend on your specific electrode materials.
Q: Can I use this machine without heating?
A: Yes. You can choose to operate with or without heating based on your material requirements.
Q: What is the roller hardness?
A: The rollers feature HRC62 surface hardness with chrome plating for wear resistance and rust prevention.
Q: What is the rolling thickness range?
A: The gap adjusts from 0 to 2mm, allowing you to achieve various electrode thicknesses.
Q: What is the feed speed range?
A: Feed speed adjusts from 0 to 40mm/s, giving you control over the calendaring process.
Q: What power supply is required?
A: The machine operates on AC220V/50Hz with only 120W power consumption.
Q: How much does it weigh?
A: The machine weighs approximately 55kg.
Q: Is the machine CE certified?
A: Yes, this equipment is CE certified, meeting international safety and quality standards.
Q: What is the delivery time?
A: Standard delivery is 5-10 work days after order confirmation.
Shipping and Packaging Information
- Packaging: Standard Export Packaging ensures safe international delivery
- Shipping Methods: We offer various shipping options based on your location and timeline
