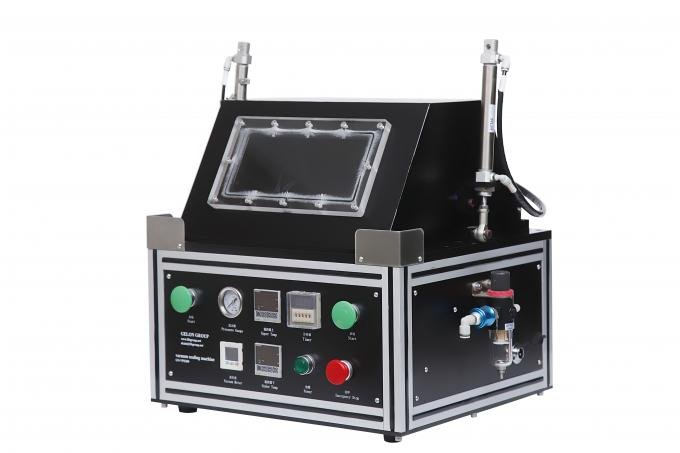

Laboratory Vacuum Sealer Pouch Cell Vacuum Pre-Sealing Machine In A Glove Box
PRODUCT PARAMETERS
Description
Gelon’s Laboratory Vacuum Sealer is a compact pouch cell vacuum pre-sealing machine designed for lithium battery R&D labs and glove box integration. It is mainly suitable for the vacuum-pumping and hot-pressing packaging of flexible packaging, medium and small size lithium batteries after liquid injection.
The compact body design allows the machine to be easily placed inside a glove box, helping prevent contamination of electrolyte materials during cell assembly. With simple operation and safety protection, customers can master the sealing procedure within 5 minutes.
Brand: Gelon
Model: Vacuum Pre-Sealing
Certification: CE
Place of Origin: China
MOQ: 1 set
Delivery Time: 20–25 days
Price: Request a Quote
Why Choose Gelon Pouch Cell Vacuum Pre-Sealing Machine?
1. Designed for Pouch Cell After Electrolyte Injection
This equipment is mainly suitable for the vacuum-pumping and hot-pressing packaging of flexible packaging medium and small size lithium batteries after liquid injection.
2. Glove Box Compatible Compact Design
The compact body allows it to be easily placed inside a glove box, preventing contamination of electrolyte materials during cell assembly.
3. Copper Sealing Head for Better Heat Transfer
The sealing head is made of copper material with good heat transfer effect, saving electricity consumption, improving work efficiency, and saving energy compared with similar products.
4. Adjustable Sealing Pressure
The pressure of the upper and lower sealing heads can be adjusted by the pressure regulating valve to meet the requirements of different process parameters.
5. Accurate Guidance and Parallelism
The upper and lower sealing heads are driven by cylinders and guided by two linear guide sleeves. The upper and lower movement is flexible, and the guidance is accurate to ensure the parallelism of the product after sealing.
6. Automatic Puncture & Waste Liquid Recovery
The machine features an automatic puncture function and a waste liquid recovery device.
7. Stable Cover Cavity Movement
The cover cavity is driven by a cylinder and guided by a linear guide sleeve. It moves flexibly up and down with accurate guidance to ensure product sealing requirements.
8. Easy Operation with Safety Protection
Simple operation with safety protection feature allows customers to master the sealing procedure within 5 minutes.
Applications
- Lithium battery R&D laboratories
- Pouch cell assembly after electrolyte injection
- Glove box integrated battery production
- Medium and small size flexible packaging lithium battery
- Battery pilot line and small batch production
- Laboratory vacuum sealing and hot-pressing packaging
Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Gelon |
| Type | Pre-Sealing Machine |
| Model Number | Vacuum Pre-Sealing |
| Used For | Sealing Function |
| Max. Sealing Dimensions | 200mm(L) x 150mm(W) |
| Other width can be customized | |
| Edge Sealing Width | 5mm |
| Sealing Blade | Hard type, without rubber, only for Al case sealing, not suitable for sealing case with tab in between |
| Sealing Unit with Chamber Closed | 470mm(L) x 430mm(W) x 480mm(H) |
| Sealing Unit with Chamber Opened | 470mm(L) x 430mm(W) x 559mm(H) |
| Control Unit | 420mm(L) x 320mm(W) x 220mm(H) |
| Power Supply | 110V or 208–240V selectable, Single Phase 50/60Hz |
| Max. Power | 600W |
| Vacuum Level | -90 kPa Max. |
| Vacuum pump is not included | |
| Sealing Pressure | 0–7Kg/cm² adjustable |
| Vacuum chamber lid and sealing die need to be driven by compressed high purity inert gases with recommended 60 psi | |
| Air Compressor is not included | |
| Sealing Temperature | 50–250°C adjustable with control accuracy of +/-2°C |
| Heating Timer | 0–99 seconds adjustable |
| Heat Sealing Time | 0–99 seconds adjustable |
| Warranty | One Year limited warranty with lifetime support |
| Net Weight | 68KG |
| Shipping Weight & Dimension | 100KG |
| Packaging Details | Standard packing / Wood packing |
| Minimum Order Quantity | 1 set |
| Delivery Time | 20–25 days |
| Payment Terms | L/C, D/A, D/P, T/T |
| Supply Ability | 1000 sets per month |
| Certification | CE |
| Place of Origin | China |
Important Notes
- Vacuum pump is not included.
- Air Compressor is not included.
- Vacuum chamber lid and sealing die need to be driven by compressed high purity inert gases with recommended 60 psi.
- Other sealing width can be customized.
- Sealing blade is hard type without rubber, only for Al case sealing, not suitable for sealing case with tab in between.
FAQ
What is this machine used for?
It is mainly used for vacuum-pumping and hot-pressing packaging of flexible packaging medium and small size lithium batteries after liquid injection.
Can it be used inside a glove box?
Yes. The compact body design allows it to be easily placed inside a glove box and helps prevent contamination of electrolyte materials during cell assembly.
What is the maximum sealing dimension?
The maximum sealing dimension is 200mm(L) x 150mm(W). Other width can be customized.
What is the edge sealing width?
The edge sealing width is 5mm.
What is the power supply?
110V or 208–240V selectable, Single Phase 50/60Hz. Max power is 600W.
What is the vacuum level?
The vacuum level is -90 kPa Max. The vacuum pump is not included.
What is the sealing pressure?
0–7Kg/cm² adjustable. The vacuum chamber lid and sealing die need to be driven by compressed high purity inert gases with recommended 60 psi. Air Compressor is not included.
What is the sealing temperature and heating timer?
Sealing temperature is 50–250°C adjustable with control accuracy of +/-2°C. Heating timer is 0–99 seconds adjustable.
What is the warranty?
One Year limited warranty with lifetime support.
What is the MOQ and delivery time?
MOQ is 1 set. Delivery time is 20–25 days.
What payment terms do you accept?
L/C, D/A, D/P, T/T.
How is the product packaged?
Standard packing / Wood packing.
