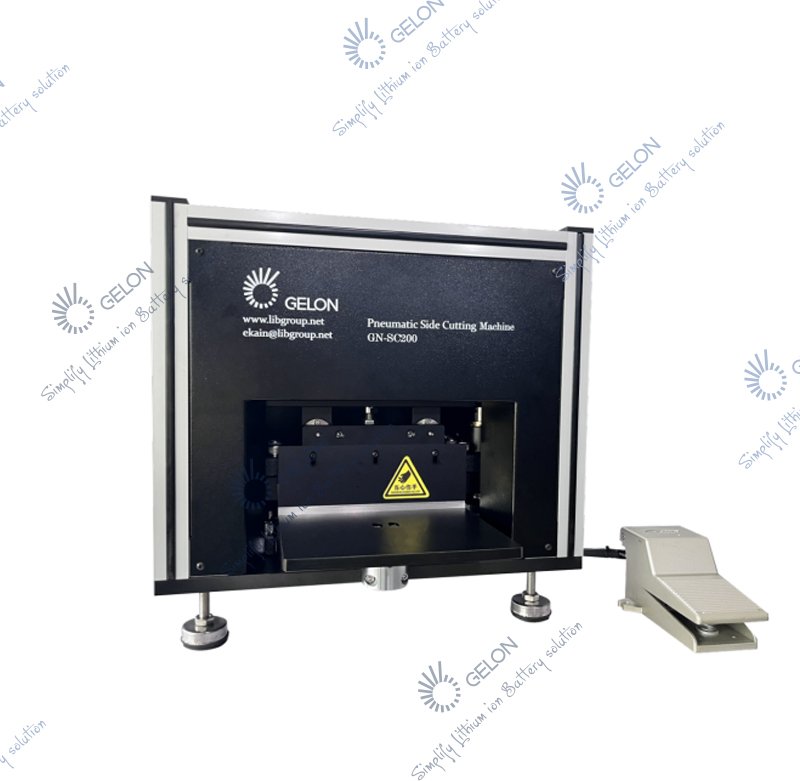

Pneumatic Side Cutting Machine

Pneumatic Side Cutting Machine – Aluminum Laminated Film Cutter for Pouch Batterie

The Pneumatic Side Cutting Machine is a manual mechanical equipment specifically designed for cutting aluminum-laminated films used in pouch lithium batteries. It is particularly suitable for trimming the side edges of vacuum-sealed soft-pack batteries after the packaging process.

Working Principle:

The operator manually places the battery onto the workbench for positioning. Stepping on the foot switch valve activates the pneumatic cylinder, which drives the cutting blade to complete the cut and then automatically resets. After cutting, the operator removes the battery from the workbench. This simple, reliable process ensures consistent cuts with minimal operator effort.

Key Features:

• Dedicated Design: Specifically engineered for cutting aluminum-laminated films of pouch batteries.
• Pneumatic Operation: Smooth, consistent cutting action powered by compressed air (0.6–0.8 MPa).
• Foot Valve Control: Hands-free operation for safety and convenience.
• High Cutting Precision: ±0.2 mm cutting accuracy with cutter parallelism of 0.05 mm.
• Durable Blades: Cutter hardness HRC ≥55° for long-lasting sharpness.
• Compact & Safe: Fully enclosed body protects working parts; dimensions 435×340×390 mm.
• Easy Maintenance: External structure allows simple access for cleaning and blade replacement.

Applications:

• Trimming side edges of vacuum-sealed pouch lithium batteries
• R&D laboratories for battery prototyping
• Small-batch production of soft-pack batteries
• Quality control and battery assembly lines
