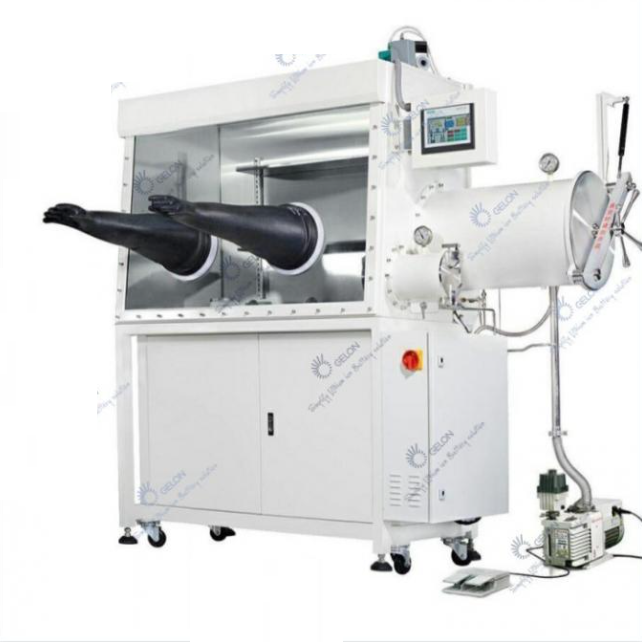

Single Working Station Vacuum Glove Box
PRODUCT PARAMETERS
Description
Single Working Station Vacuum Glove Box for Lithium Ion Battery Manufacturing | GN-GB-1
Product Overview
The GN-GB-1 Single Working Station Vacuum Glove Box is a precision-engineered inert atmosphere enclosure designed specifically for lithium-ion battery manufacturing and R&D. Constructed from 3mm thick 304 stainless steel, this glove box provides complete control over water and oxygen content, creating the perfect environment for moisture-sensitive battery materials and components.
The system features a closed recirculation design with fan and cleaner units that continuously remove water and oxygen from the inert gas (argon or nitrogen). The dehydration and deoxidization materials are automatically regenerated via programmed control, ensuring long-term, maintenance-free operation.
With PLC touch panel control, integrated water and oxygen analyzers, dual pass boxes, and comprehensive safety features, the GN-GB-1 is the ideal solution for battery researchers, pilot lines, and small-scale production facilities requiring a reliable, high-performance inert atmosphere workstation.
Business & Logistics Information
| Parameter | Details |
|---|---|
| Place of Origin | China |
| Brand Name | Gelon |
| Model Number | GN-GB-1 |
| Certification | CE |
| Minimum Order Quantity | 1 pc |
| Packaging Details | Standard exported package: Internal anti-collision protection, external export wooden box packaging |
| Delivery Time | 15 days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 500 pcs/month |
| Warranty | 1 Year |
Key Benefits
| Benefit | Technical Feature | Customer Value |
|---|---|---|
| Complete Atmosphere Control | Closed recirculation with fan/cleaner + water/oxygen analyzers | Maintains ultra-low H₂O/O₂ levels for moisture-sensitive battery materials |
| High-Quality Construction | 3mm thick 304 stainless steel, corrosion-resistant | Long-lasting durability in demanding lab environments |
| Automated Regeneration | Programmed control of dehydration/deoxidization materials | Minimal maintenance, consistent performance over time |
| Precise Pressure Control | PLC-controlled pressure with ±10mbar working range, auto-protection at ±12mbar | Safe operation, prevents over-pressurization or vacuum collapse |
| Dual Pass Box Design | Large pass box (Ø360×600mm) + small pass box (Ø100×300mm) | Flexible material transfer without compromising atmosphere |
| Comprehensive Monitoring | Integrated water and oxygen analyzers | Real-time visibility of atmosphere quality |
| User-Friendly Operation | PLC with touch panel interface | Easy parameter setting, monitoring, and control |
Technical Specifications
| Parameter | Value | Remarks |
|---|---|---|
| Material | 304 Stainless Steel | Thickness: 3mm, corrosion resistant |
| Internal Surface Finish | Stainless steel wiredraw treat | |
| Outside Surface | Painting, White | |
| Inner Dimensions (L×D×H) | 1220mm × 750mm × 900mm | |
| Working Pressure | ±10mbar (freely settable) | Auto-protection at ±12mbar |
| Box Lighting | Fluorescent lamp | Set above the window |
| Filter | 0.3 micron (0.12 micron optional) | 1 gas entrance, 1 gas exit |
Included Components
| Component | Quantity | Description |
|---|---|---|
| Main Box | 1 set | 304 stainless steel, 3mm thickness, corrosion resistant, with gradient worktop and dismountable safe glass window |
| Vacuum Pass Box (Large) | 1 set | Diameter: 360mm, Length: 600mm, mounted on right side |
| Vacuum Pass Box (Small) | 1 set | Diameter: 100mm, Length: 300mm, mounted on right side |
| Glass Window | 1 | With 2 glove ports |
| Butyl Rubber Gloves | 1 pair | High-quality, chemical resistant |
| Lighting System | 1 set | Fluorescent lamp inside box |
| Power Interface | 1 set | Inner box power connection |
| High-Powered Cycling Fan | 1 set | For gas recirculation |
| Vacuum Pump | 1 | |
| PLC & Touch Panel | 1 | Complete control system |
| Blind Flange | 3 | |
| Stand Wheel | 1 set | For mobility |
| Foot Switch | 1 | Hands-free operation |
| Water Analyzer | 1 | Real-time moisture monitoring |
| Oxygen Analyzer | 1 | Real-time oxygen monitoring |
How It Works
- Inert Gas Circulation: The glove box is filled with inert gas (argon or nitrogen). The high-powered fan continuously circulates the gas through the purification system.
- Continuous Purification: As gas passes through the cleaner unit, water and oxygen are removed by specialized dehydration and deoxidization materials.
- Automatic Regeneration: When the purification materials become saturated, the system automatically regenerates them via programmed control, ensuring consistent performance without manual intervention.
- Pressure Control: The PLC system maintains the inner box pressure within the user-set working range (±10mbar). If pressure exceeds ±12mbar, auto-protection activates.
- Material Transfer: Materials are moved in/out via the vacuum pass boxes (large and small) without exposing the main chamber to ambient air.
- Real-Time Monitoring: Integrated water and oxygen analyzers continuously display atmosphere quality on the touch panel.
- Gas Replacement: Automatic controlled cleaning valves facilitate gas replacement when needed.
Equipment Features (Detailed)
- 304 Stainless Steel Construction: 3mm thick, corrosion-resistant stainless steel ensures long-term durability and easy cleaning.
- Closed Recirculation System: Inert gases are continuously circulated through fan and cleaner units, maintaining ultra-low water and oxygen levels.
- Programmed Regeneration: Dehydration and deoxidization materials are automatically regenerated, minimizing maintenance downtime.
- PLC Pressure Control: Working pressure (±10mbar) is freely settable via the touch panel, with auto-protection at ±12mbar for safe operation.
- Dual Pass Box Design:
- Large pass box (Ø360mm × 600mm) for larger equipment/materials
- Small pass box (Ø100mm × 300mm) for quick transfers
- Integrated Analyzers: Water and oxygen analyzers provide real-time atmosphere monitoring.
- Gradient Worktop: Ergonomically designed for comfortable long-duration work.
- Dismountable Safe Glass Window: Provides excellent visibility while ensuring safety; removable for cleaning or component access.
- Comprehensive Accessories: Includes gloves, lighting, power interface, blind flanges, stand wheels, and foot switch.
- Touch Panel Control: Intuitive PLC interface for easy operation and monitoring.
Applications
- Lithium-Ion Battery R&D: Handling moisture-sensitive electrode materials, electrolytes, and separators
- Solid-State Battery Research: Air-sensitive solid electrolyte materials
- Coin Cell Assembly: Assembling half-cells and full cells in inert atmosphere
- Materials Testing: Characterizing air-sensitive battery materials
- University Laboratories: Battery research and education
- Pilot Production: Small-scale battery prototype manufacturing
Why Choose Gelon GN-GB-1 Glove Box
- CE Certified: Meets stringent European safety and quality standards.
- Battery-Specific Design: Engineered specifically for lithium-ion battery research and production, with features tailored to this application.
- Superior Material Quality: 3mm 304 stainless steel construction ensures corrosion resistance and longevity – critical when working with electrolyte materials.
- Complete Monitoring Package: Integrated water and oxygen analyzers provide real-time atmosphere data – no need for separate purchases.
- Automatic Regeneration: The programmed regeneration system means less manual intervention and more consistent performance.
- Flexible Material Transfer: Dual pass boxes accommodate both small items and larger equipment without compromising the inert atmosphere.
- Fast Delivery: 15-day delivery time gets you operational quickly.
- High Supply Capacity: 500 units/month manufacturing capability ensures reliable availability and support.
- Comprehensive Warranty: 1-year warranty with full technical support.
Frequently Asked Questions (FAQ)
Q: What are the inner dimensions of the main chamber?
A: The inner dimensions are 1220mm (Length) × 750mm (Depth) × 900mm (Height), providing ample workspace for battery assembly and material handling.
Q: Does it come with water and oxygen analyzers?
A: Yes. The GN-GB-1 includes both water analyzer and oxygen analyzer for real-time monitoring of atmosphere quality.
Q: How does the regeneration system work?
A: The dehydration and deoxidization materials are automatically regenerated via programmed control when they become saturated. This ensures consistent purification performance without manual intervention.
Q: What is the working pressure range?
A: The working pressure can be freely set within ±10mbar via the PLC. If pressure exceeds ±12mbar, the auto-protection system activates.
Q: What materials can be transferred through the pass boxes?
A: The large pass box (Ø360×600mm) accommodates larger equipment and material batches, while the small pass box (Ø100×300mm) is ideal for quick transfers of smaller items.
Q: What gloves are included?
A: The system includes one pair of high-quality butyl rubber gloves, which offer excellent chemical resistance and durability.
Q: What is the delivery time?
A: Standard delivery is 15 days after order confirmation.
Q: What payment methods do you accept?
A: We accept L/C, D/A, D/P, T/T, Western Union, and MoneyGram.
Q: Is installation support available?
A: While installation guiding is not explicitly listed, our technical support team is available to assist with setup and operation. Please contact us for specific support arrangements.
