2L/5L Slurry Mixing Machine
PRODUCT PARAMETERS
Description

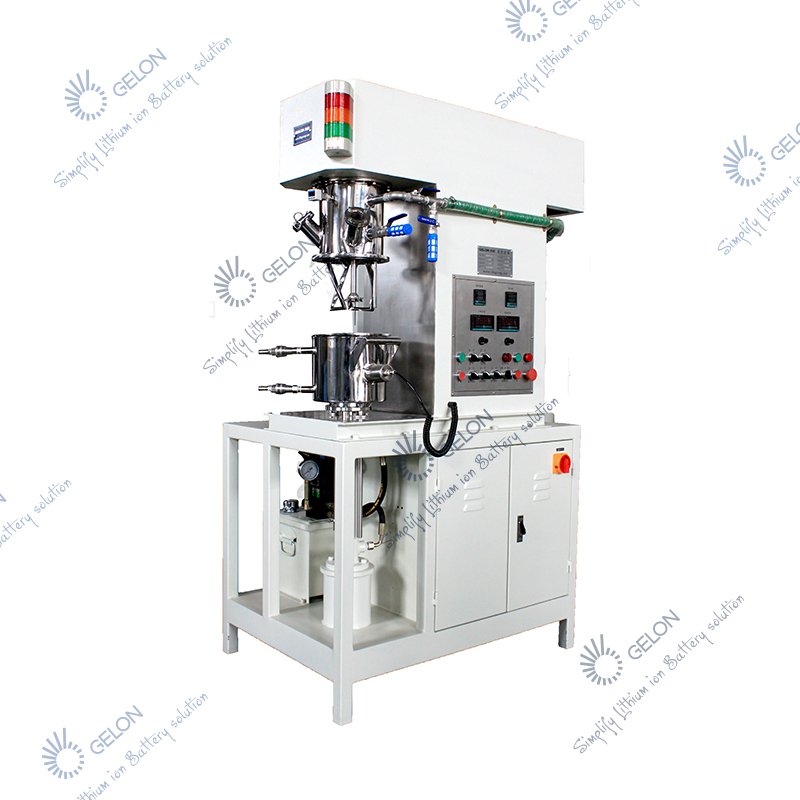

2L/5L Slurry Mixing Machine – Dual-Action Vacuum Mixer for Battery Slurry
This 2L/5L Slurry Mixing Machine is specifically designed for mixing and dispersing powder and liquid materials used in various common battery chemistries. It delivers uniformly mixed battery slurry with exceptional consistency, making it an ideal device for highly viscous processes in battery research and production.
Product Features:
- Dual Mixing Action: Double mixing slurry mechanism combined with multiple serrated disks mounted on a high-speed dispersing shaft. These components rotate and revolve simultaneously for thorough mixing.
- No Dead Angle Design: The low-clearance design of the mixing vessel ensures complete material processing without accumulation zones.
- Powerful Circulation & Dispersion: Combines strong kneading interference and up-down/left-right circulation movement from the low-speed agitator with high-speed shearing and dispersing action from the dispersing plate.
- Complete Dispersion: Materials are fully dispersed and mixed without any deposition, ensuring consistent slurry quality.
- Adjustable Speeds: All speeds can be adjusted to accommodate different material viscosities and processing requirements.
Working Principle:
The machine employs a sophisticated mixing strategy:
- The low-speed agitator creates strong kneading action and circulates material vertically and horizontally.
- The high-speed dispersing shaft with serrated disks applies intense shear forces to break agglomerates.
- The combination of planetary rotation and high-speed dispersion ensures uniform distribution of all components.
Applications:
- Lithium-ion battery electrode slurry preparation (LCO, LFP, NCA, NMC)
- Powder-liquid mixing for various battery chemistries
- Highly viscous material processing
- Laboratory R&D and small-scale production
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | 2L / 5L Slurry Mixing Machine |
| Effective Volume | 2L, 5L |
| Power | 1.85 KW |
| Working Voltage | 380V / 50Hz, 3-phase |
| Main Shaft Speed | 0 – 65 rpm (adjustable) |
| Stirring Speed | 0 – 105 rpm (adjustable) |
| Dispersing Speed | 0 – 3000 rpm (adjustable) |
| Mixing Action | Double mixing + high-speed dispersing |
| Design Feature | Low-clearance, no dead angle |
| Application | Battery slurry preparation for various chemistries |
