Automatic Coating Machine for Pouch Cell Assembly | Intermittent Doctor Blade & Slot Die Coater
PRODUCT PARAMETERS
Description

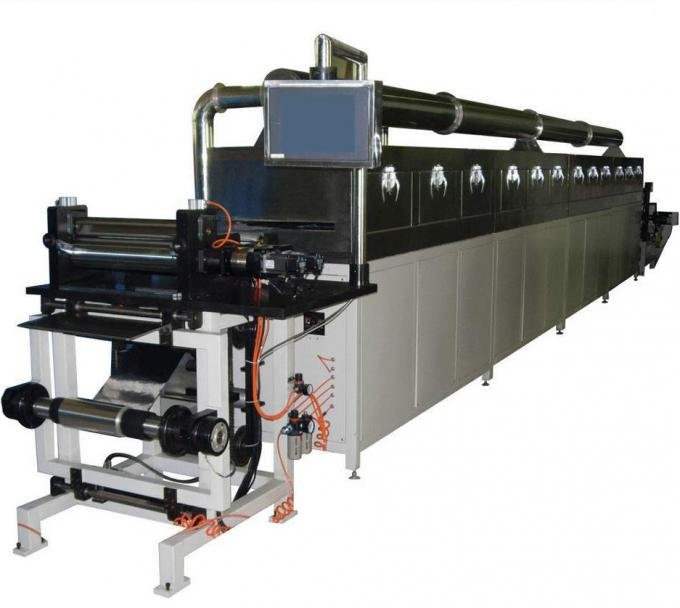

Coating Machine for Pouch Cells | Automatic Slot Die & Doctor Blade Coater | CE Certified
Product Overview
The Gelon Automatic Coating Machine is a state-of-the-art, high-performance coating system designed specifically for lithium battery electrode production. We engineered this advanced coating machine to meet the demanding requirements of pouch cell assembly lines, where precision, consistency, and efficiency are essential for high-quality battery manufacturing.
This versatile coating machine integrates multiple advanced features into a compact, energy‑efficient design. It employs a PLC touch screen to control tension, correction, servo, temperature, and other critical systems, ensuring seamless operation and exceptional repeatability. The high‑integration mechanical structure combined with a closed‑loop control system reduces the equipment footprint while maximizing productivity.
Furthermore, this coating machine supports two coating methods:

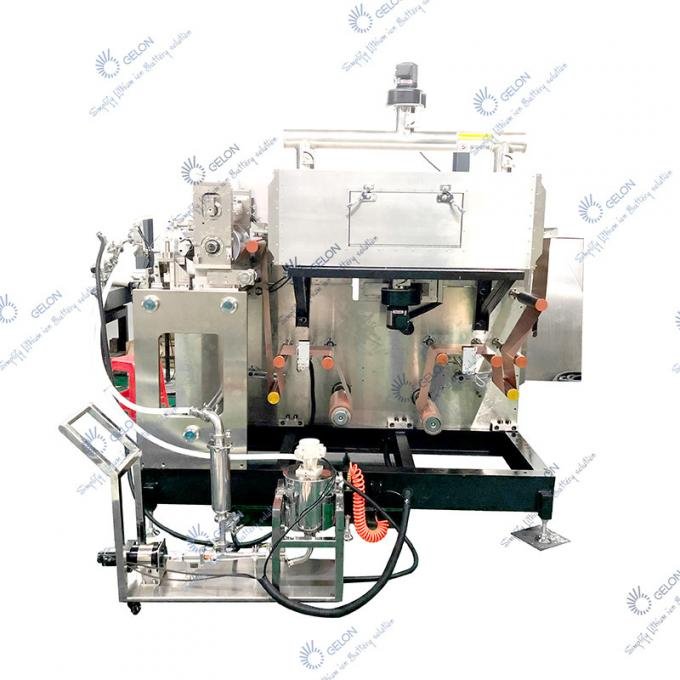

- Slot die extrusion coating for precision, patterned coatings (intermittent, continuous, stripe, grid)
- Doctor blade coating for simple, continuous coating applications
With its robust construction, user‑friendly interface, and high‑speed capabilities, this coating machine is ideal for large‑scale lithium battery production lines.
Business & Logistics Information
| Parameter | Details |
|---|---|
| Place of Origin | China |
| Brand Name | Gelon |
| Model Number | Coating Machine |
| Certification | CE |
| Price | USD 15,000 – 100,000 per set |
| Minimum Order Quantity | 1 set |
| Packaging Details | Standard packing / Wood packing |
| Delivery Time | 20‑25 days |
| Supply Ability | 20 sets per month |
| Warranty | 1 Year |
Key Design Features
1. Dual Coating Methods
This coating machine offers exceptional flexibility with two coating techniques:
| Method | Description | Applications |
|---|---|---|
| Slot Die Extrusion | Precision coating with die head, screw pump feed, and coating valve | Intermittent coating, continuous coating, stripe coating, grid coating |
| Doctor Blade | Simple, continuous coating with applicator knife roller | Continuous coating for standard electrode production |
2. PLC Touch Screen Control
We equipped this coating machine with a 10.4‑inch color touch screen and PLC control system that manages:
- Tension control – constant tension throughout the process
- Correction control – auto rectify deviation for perfect alignment
- Servo control – precise movement and positioning
- Temperature control – multi‑zone drying oven management
- FOS (Fiber Optic Sensor) – high‑precision position sensing
3. Comprehensive Sub‑Systems
Unwinding Structure
- Adjustable‑speed motor
- Unwinding roller with tension control
- Auto rectify deviation system
Coated Floating Roller Tension Structure
- Roller, chain wheel, position sensor, counterweight roller
Coating Structure
- PLC‑controlled feeding system
- Applicator knife roller and backup roll
- Drive motor with FOS
- Precision bearings and high‑performance pneumatic elements
Drying System
- Heater, wind machine, exhaust duct and wind hole
- Heat preservation box, inspection door
Take‑up Structure
- Outlet of oven, float roller tension structure
- Wrap‑up driving device and tension sensor system
Wrap‑up System
- Adjustable‑speed motor, wrap‑up roller
- Auto rectify deviation system
4. Advanced Temperature Control
- Temperature control system with adjustable gauges, thermocouples, heaters, relays
- Multi‑zone drying with hot air circulation
- Precise temperature management for optimal drying
5. Precision Mechanical Components
- Coating roller: Φ117.78×500mm, circle run‑out ≤0.002mm on the surface
- Rubber roller: Φ120×500mm, anti‑corrosion rubber
- Guide wheel: Φ80×500mm, aluminum alloy with surface anodic oxidation
- Inflatable shaft: Φ76×500mm, chromed surface
- Working table: 785×695×48mm, chromed surface
- Large bearing: 267×220×50mm, chromed surface
6. Environmental & Installation Requirements
- Coating part humidity: 45% RH (no condensation)
- Ground requirements: Flatness ±5mm/m², bearing capacity 1500kg/m²
Technical Specifications
| Parameter | Value | Remarks |
|---|---|---|
| Product Name | Coating Machine | Automatic |
| Automatic Grade | Automatic | |
| Core Components | PLC, Engine, Motor, Coating | |
| Material | Copper Foil & Aluminum Foil | |
| Coating Part Humidity | 45% RH | No condensation |
| Ground Requirements | Flatness ±5 mm/m², bearing capacity 1500 kg/m² | |
| Control System | 10.4″ color touch screen, PLC, servo motor, FOS | |
| Coating Methods | Slot die extrusion, doctor blade | Intermittent & continuous |
| Drying System | Hot air circulation with heat preservation | Multi‑zone |
| Unwinding | Adjustable‑speed motor, tension control, auto correction | |
| Take‑up | Float roller tension, tension sensor, auto correction | |
| Warranty | 1 Year |
How This Coating Machine Works
Step 1: Substrate Loading
The substrate (aluminum foil for cathodes or copper foil for anodes) is loaded onto the unwinding structure. The auto rectify deviation system ensures perfect alignment before coating begins.
Step 2: Tension Control
The coated floating roller tension structure maintains constant tension as the substrate moves through the machine, preventing stretching or wrinkling.
Step 3: Coating Application
The coating structure applies slurry using the selected method:
- Slot die extrusion for precision intermittent or patterned coating
- Doctor blade for continuous coating
The PLC‑controlled feeding system ensures consistent slurry delivery, while FOS sensors monitor position for accurate coating start/stop.
Step 4: Drying
The coated electrode passes through the drying system with hot air circulation. Temperature is precisely controlled via thermocouples and heaters, ensuring complete solvent removal.
Step 5: Take‑up and Rewinding
After drying, the take‑up structure with float roller tension and tension sensor maintains consistent tension. The wrap‑up system with auto rectify deviation ensures the finished electrode is rewound perfectly aligned.
Step 6: Quality Monitoring
Throughout the process, the PLC touch screen displays real‑time parameters, and operators can adjust settings as needed. The high‑precision mechanical components guarantee coating accuracy and repeatability.
Applications
- Lithium Battery Electrode Production: Coating cathodes and anodes for pouch cells
- Pouch Cell Assembly Lines: High‑volume manufacturing of soft‑pack batteries
- EV Battery Production: Consistent quality for electric vehicle applications
- R&D and Pilot Lines: Developing new electrode formulations and coatings
- Energy Storage Systems: Large‑scale production for stationary storage
Why Choose Gelon Automatic Coating Machine
- Dual Coating Methods: This single coating machine supports both slot die extrusion and doctor blade coating, giving you maximum flexibility for different electrode designs and production requirements.
- PLC Touch Screen Control: The 10.4‑inch color touch screen with integrated PLC, servo, and FOS systems provides intuitive operation and precise control over all critical parameters.
- High‑Precision Mechanical Components: With coating roller circle run‑out ≤0.002mm, anti‑corrosion rubber rollers, and chromed surfaces, this coating machine delivers exceptional accuracy and durability.
- Integrated Tension and Correction Systems: Automatic tension control and auto rectify deviation throughout unwinding, coating, and rewinding ensure perfect alignment and consistent quality.
- Energy‑Efficient Design: The high‑integration mechanical structure and closed‑loop control system reduce the equipment footprint while maximizing productivity and energy efficiency.
- Customizable Options: We offer customization of components such as the working table, large bearing, coating roller, and inflatable shaft to meet your specific production requirements.
- CE Certified: We certified this equipment for international markets, meeting stringent safety and quality standards.
- Global Support: With successful installations for major manufacturers including TESLA, LG, SONY, and ATL, and turn‑key projects worldwide, Gelon brings proven expertise to your production line.
Complete Battery Solutions from Gelon
This Coating Machine is part of Gelon’s comprehensive lithium battery equipment line. We offer a complete ecosystem for battery production:
1. Full Set of Lithium Battery Materials
- Cathode Materials: LFP, LMO, LCO, NMC, NCA
- Anode Materials: LTO, MCMB, natural graphite
- Current Collectors: Aluminum foil, copper foil, carbon coated copper foil
- Separators: Battery separator
- Electrolyte: Various formulations
- Other Accessories: SBR, CMC, NMP, PVDF, Super-P Li, Al & Ni tabs, battery pack tags
2. Full Set of Lithium Battery Production Equipment
Complete production equipment including:
- Mixing machine → Coating machine → Oven → Rolling machine
- Slitting machine → Stacking machine → Winding machine → Sealing machine
- Glove boxes → Battery testers → And more…
3. Turn-Key Project Solutions
Based on extensive battery production experience, we design and offer turn‑key solutions for:
- Lithium battery laboratories
- Mobile battery pilot lines
- EV battery production lines
4. Global Success Stories
Gelon has successfully supplied automatic equipment for many well‑known battery manufacturers, including TESLA, LG, SONY, ATL , and completed turn‑key projects in Bolivia, Argentina, United Kingdom, Russia, Turkey, Thailand, Indonesia, India, South Africa , and more.
Frequently Asked Questions (FAQ)
Q: What coating methods does this coating machine support?
A: It supports both slot die extrusion coating (intermittent, continuous, stripe, grid) and doctor blade coating (continuous).
Q: What is the control system?
A: The machine features a 10.4‑inch color touch screen with PLC, servo motor, and FOS (Fiber Optic Sensor) for precise, integrated control.
Q: What materials can it coat?
A: It handles copper foil and aluminum foil substrates for lithium battery electrodes.
Q: What are the ground requirements?
A: The ground must have flatness ±5mm/m² and bearing capacity 1500kg/m².
Q: What humidity is required in the coating area?
A: Coating part humidity should be maintained at 45% RH with no condensation.
Q: How is tension controlled?
A: The machine features constant tension control throughout unwinding, coating, and rewinding, with float roller tension structures and tension sensors.
Q: What drying system does it have?
A: It includes a hot air circulation drying system with heat preservation, multi‑zone temperature control, and inspection doors.
Q: What are the key precision components?
A: The coating roller has circle run‑out ≤0.002mm, rubber rollers are anti‑corrosion, and guide wheels are aluminum alloy with anodic oxidation.
Q: Can the machine be customized?
A: Yes. We offer customization of components such as the working table, large bearing, coating roller, rubber roller, guide wheel, and inflatable shaft.
Q: What is the delivery time?
A: Standard delivery is 20‑25 days after order confirmation.
Q: Is the machine CE certified?
A: Yes, this equipment is CE certified, meeting international safety and quality standards.
Shipping and Packaging Information
- Packaging: Standard packing or wood packing ensures safe international delivery
- Shipping Methods: We offer various shipping options based on your location and timeline
