Formation machine
PRODUCT PARAMETERS
Description

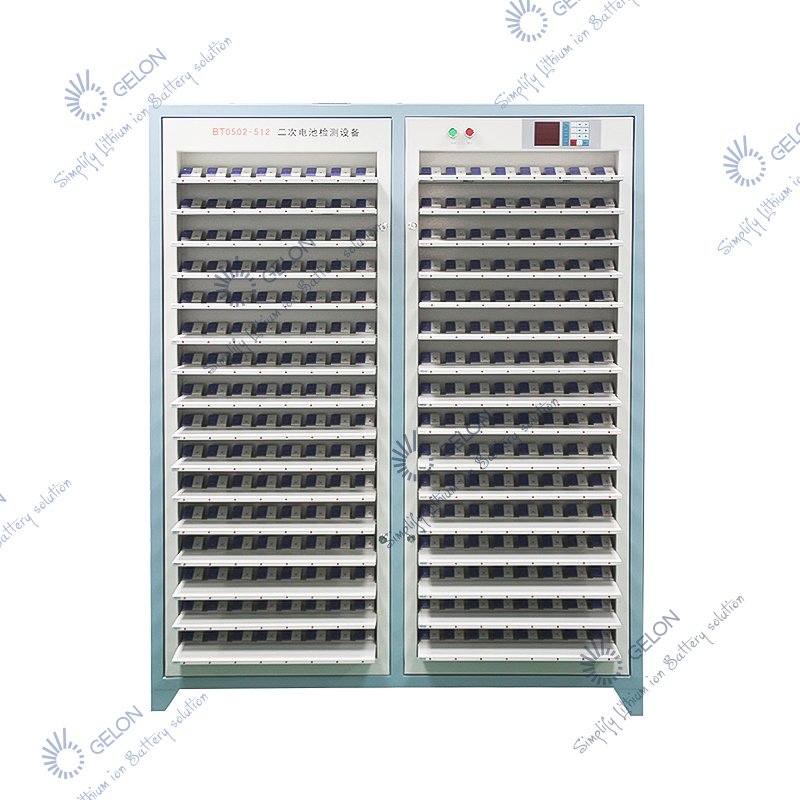

512 Channel Formation Machine – Polymer Li-ion Battery Formation & Capacity Grading System
This 512 Channel Formation Machine is specifically designed for the formation and capacity grading of polymer lithium-ion batteries. It performs charging in constant current (CC), charging in constant current and constant voltage (CCCV), discharging in constant current, stop functions, and cycle testing essential for battery activation and quality assessment.
Key Features:
- Non-Contact Control: Seamless transition from constant current to constant voltage charging without impact, particularly suitable for Li-ion battery formation requirements.
- Unique Constant Current-Constant Voltage Power Supply: Optimized specifically for battery formation processes.
- Modular Structure: Safe and reliable for long-term continuous operation in production environments.
- Four-Line Method Measurement: Polymer Li-ion special fixture eliminates wiring and contact errors for maximum testing accuracy.
- High Precision: Current measuring accuracy ±(0.2% RD ± 0.2%FS) with 1mV voltage resolution.
- RS485 Communication: Baud rate 57600 bit for reliable data transfer and integration with production systems.
Applications:
- Polymer lithium-ion battery formation (initial charge/discharge cycles)
- Capacity grading and sorting
- Battery cycle life testing
- Quality control in battery manufacturing
- Research and development of battery materials
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | AC220V/50Hz |
| Total Power | 8300W |
| Dimensions | 1450 × 380 × 1700 mm |
| Voltage Measuring Range | 0.1 – 5V |
| Voltage Resolution | 1 mV |
| Current Range | 0 – 2A |
| Current Measuring Accuracy | ±(0.2% RD ± 0.2%FS) |
| Source Supply | 220V ±10% / 50Hz |
| Communication Mode | RS485, baud rate 57600 bit |
| Number of Channels | 512 |
| Measurement Method | Four-line method with polymer Li-ion special fixture |
