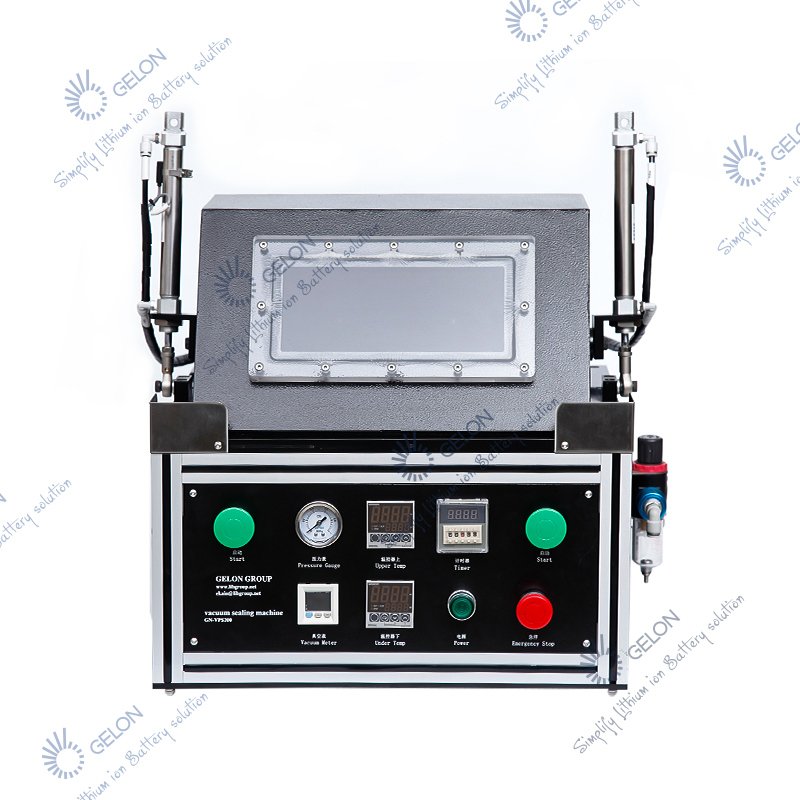

Vacuum Pre-sealing Machine（Integrated）
PRODUCT PARAMETERS
Description
Vacuum Pre-sealing Machine (Integrated) – Pouch Cell Vacuum Sealer for Electrolyte Injection Post-Processing
We designed this integrated vacuum pre-sealing machine specifically for vacuum extraction and hot sealing of medium and small pouch lithium cells after electrolyte injection and standing. It ensures hermetic pre-sealing before final degassing and second sealing operations.
Working Principle
First, after electrolyte injection and standing, you place the pouch cell into the machine. Next, the cover cavity forms a sealed environment. Then, the system applies vacuum to remove gases. Finally, the heated sealing heads perform hot press sealing of the aluminum-plastic film. If you use the machine inside a glove box, this process maintains the inert atmosphere while properly sealing the cell.
Key Features:
- Copper Sealing Heads: Made of copper material for excellent heat transfer, reduced power consumption, and improved energy efficiency compared to similar products.
- Adjustable Sealing Pressure: Upper and lower head pressure can be adjusted via pressure regulating valve to meet various process requirements.
- Precision Guidance: Upper and lower sealing heads are driven by cylinders and guided by two linear guides, ensuring flexible movement and accurate parallelism after sealing.
- Cover Cavity Control: Cavity driven by cylinder with linear guide for flexible movement and precise sealing alignment.
- High Vacuum Capability: Maximum vacuum level ≤ -95KPa (adjustable).
- Flexible Temperature Control: Temperature freely settable up to 250°C.
- Wide Compatibility: Suitable for different battery specifications with easy adjustment.
- User-Friendly Operation: Simple controls with beautiful appearance, small volume, and light weight (57kg).
Applications:
- Pre-sealing of pouch lithium cells after electrolyte injection
- Vacuum sealing for medium and small specification pouch batteries
- Battery R&D laboratories
- Small to medium-scale battery production
- Glove box-based battery assembly
Technical Parameters
| Parameter | Specification | Remarks |
|---|---|---|
| Upper/Lower Die Temperature | Suggested not to exceed 250°C | Temperature freely settable |
| Vacuum Level | ≤ -95KPa (maximum) | Adjustable |
| Sealing Time | Recommended 3–4s | 0–99s adjustable |
| Sealing Thickness | 0 – 0.5 mm | – |
| Sealing Length | Max. 190 mm | – |
| Sealable Battery Size | Max. 180 mm | Including air bag and tabs |
| Sealing Width | 5 mm (standard) | Customizable |
| Gas Source | 0.5–0.8 MPa Argon/Nitrogen (inside glove box) | 0.7 MPa Compressed Air (outside glove box) |
| Power Supply | AC220V/50Hz or AC110V/60Hz | Customizable |
| Power Consumption | 1800W | – |
| Equipment Dimensions | Approx. L570 × W520 × H550 mm | – |
| Equipment Weight | Approx. 57 kg | – |
