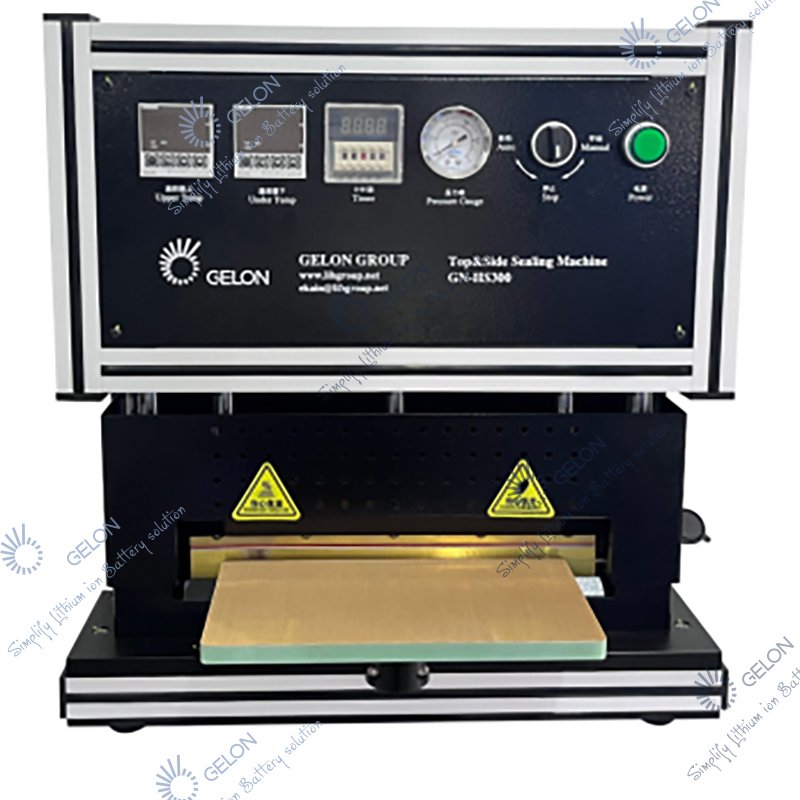

Top and Side Sealing Machine（GN-HS300）
PRODUCT PARAMETERS
Description
Top and Side Sealing Machine GN-HS300 – Pouch Cell Heat Sealer with Independent Temperature Control
The GN-HS300 Top and Side Sealing Machine is specifically designed for heat sealing the top and side edges of pouch lithium batteries. Utilizing resistance heating technology, this equipment delivers precise, consistent seals on aluminum laminated film without requiring head changes between top and side sealing operations.
Working Principle:
Resistance heating tubes transfer heat to the brass sealing head. The thermal conduction effect acts on the aluminum laminated film packaging material. Under controlled pressure, the film heats, softens, and approaches a molten state to complete the pressing and merging. The upper sealing head features hard sealing, while the lower head provides soft sealing, enabling both top and side sealing without changing heads.
Operation Workflow:
- Confirm air switch is open; connect power and air sources.
- Start power supply and set upper/lower temperature controllers to specified values.
- Once temperature reaches set values, switch knob to automatic mode.
- Place battery cell in sealing position.
- Step on foot switch to initiate automatic sealing operation.
Key Features:
- Desktop Design: Equipped with operating platform and sheet metal protective cover for safe, convenient operation.
- Easy Head Disassembly: Sealing heads are simple to remove and replace.
- Excellent Parallelism: Upper and lower die heads maintain good parallelism for stable heat sealing.
- Independent Temperature Control: Upper and lower die heads have separate temperature controllers.
- Adjustable Sealing Time: 0-99 seconds adjustable (recommended 3-6 seconds).
- Dual Operating Modes: Switchable between automatic and manual modes.
- Glove Box Compatible: Compact design suitable for installation inside argon or nitrogen glove boxes.
Applications:
- Top sealing of pouch lithium batteries
- Side sealing of pouch cells
- Battery R&D laboratories
- Small-scale pouch cell production
Technical Parameters
| Parameter | Specification | Remarks |
|---|---|---|
| Soft Seal Setting Temperature | Recommended 200°C – 230°C | – |
| Hard Seal Setting Temperature | Recommended 170°C – 190°C | – |
| Tab and Tab Tape Thickness Range | Tab ≤0.15mm / Tab Tape ≤0.1mm | Customizable beyond specified range |
| Sealing Time | Recommended 3–6s | 0–99s adjustable |
| Seal Thickness | ≤0.5mm | – |
| Sealing Head Length | 300mm | – |
| Sealable Battery Size | Max L280 × W280 × H10mm | Including air bag and tabs |
| Sealing Edge Width | 5mm (standard) | Customizable |
| Gas Source | 0.5–0.8MPa Argon/Nitrogen (inside glove box) | 0.5–0.8MPa Compressed Air (outside glove box) |
| Power Supply | AC220V/50Hz or AC110V/60Hz | Customizable |
| Power Consumption | 1800W | – |
| Equipment Dimensions | ≈ L500 × W330 × H495 mm | – |
| Packaged Dimensions | ≈ L620 × W450 × H700 mm | Wooden box |
| Net Weight | Approx. 48 kg | – |
| Gross Weight | Approx. 63.5 kg | – |
| Usage Site | Can be used inside glove box | Verify space compatibility |
| Warranty | 1 year warranty | Lifetime maintenance |
