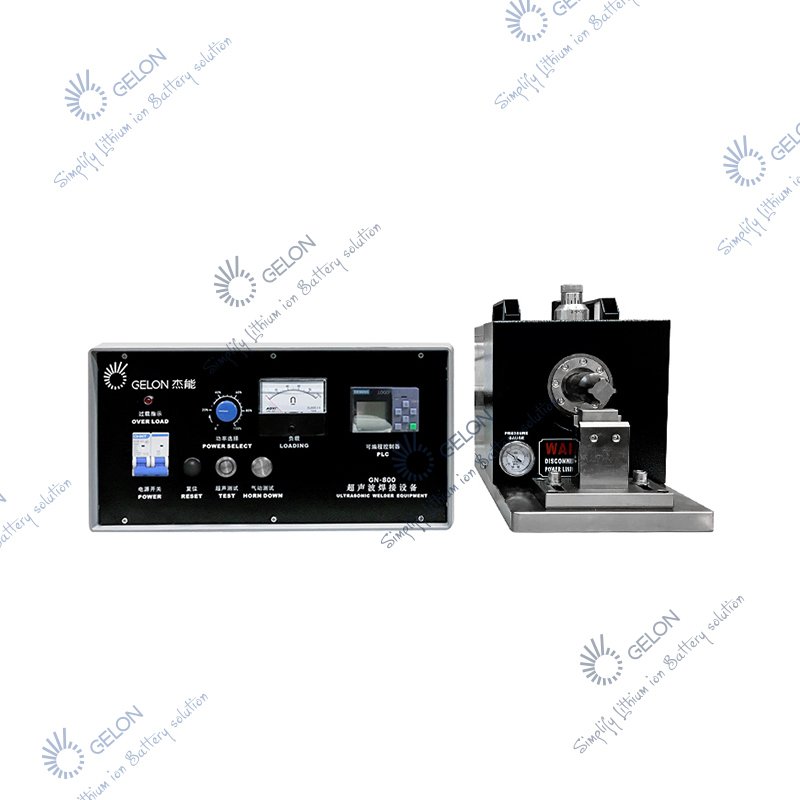

Ultrasonic Welding Machine GN-800 – 800W Metal Welder for Li-Ion Pouch Cell Tab Welding
We designed the GN-800 Ultrasonic Welding Machine specifically for welding stacked electrode sheets and tabs onto current collectors in lithium-ion pouch cell R&D laboratories. Unlike resistance welders, this ultrasonic system creates strong, reliable bonds between copper and aluminum materials without generating excessive heat. Therefore, it preserves the integrity of sensitive electrode coatings.
Working Principle:
The welder generates high-frequency ultrasonic vibrations (30-40 kHz) that create friction and molecular diffusion between metal layers. Consequently, it produces a solid-state bond without melting the materials. This process ensures low electrical resistance and high mechanical strength at the weld interface.
Key Features:
- Multi-Layer Capability: Handles up to 20 layers of stacked electrodes, making it suitable for high-capacity pouch cells.
- Adjustable Frequency: You can tune the ultrasonic frequency from 30 to 40 kHz, so you optimize welding for different material combinations and thicknesses.
- Precision Welding Area: The 4×4mm welding zone provides consistent, localized bonding, thus preventing damage to surrounding areas.
- Pneumatic Control: Air pressure regulation (0.5-0.8MPa) allows you to adjust clamping force for various stack configurations.
- R&D Focus: Compact design and intuitive controls make it ideal for laboratory environments where flexibility and precision matter most.
- Material Versatility: Welds both copper and aluminum tabs to corresponding current collectors, supporting various battery chemistries.
Applications:
- Welding electrode stacks for pouch lithium batteries
- Attaching tabs to cathode and anode current collectors
- R&D laboratories developing new cell designs
- Small-batch production of prototype cells
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | GN-800 |
| Input Voltage | 220V AC, 50Hz |
| Max. Power Consumption | 0 – 800W (adjustable) |
| Welding Area | 4mm (L) × 4mm (W) |
| Ultrasonic Frequency | 30 – 40 kHz (adjustable) |
| Pneumatic Control | Air pressure: 0.5 – 0.8 MPa |
| Air Compressor | Not included (customer provided) |
| Max. Welding Layers | Up to 20 layers |
| Weldable Materials | Copper, aluminum |
