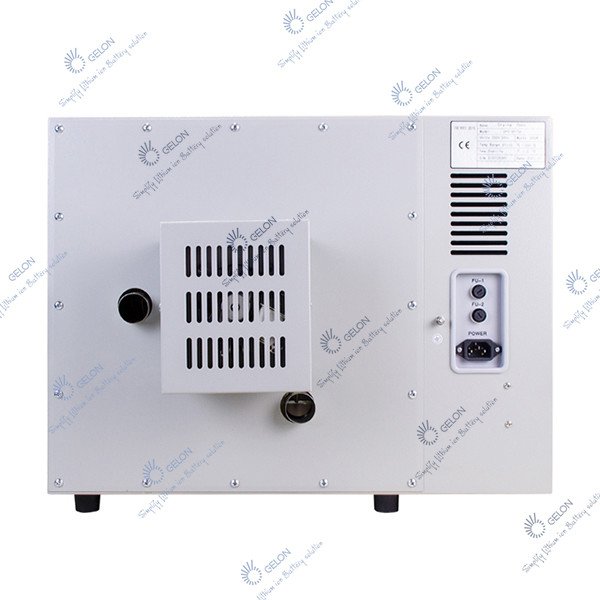

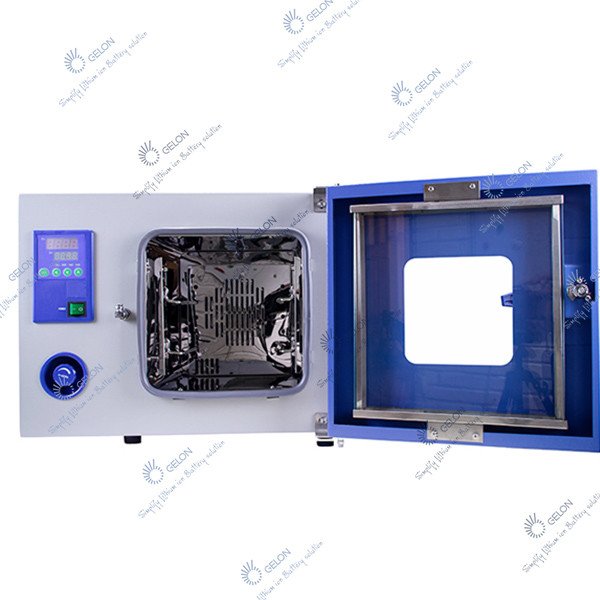

Laboratory Vacuum Heating Drying Oven Machine for Lithium Battery
PRODUCT PARAMETERS
Description
The Gelon DZF series laboratory vacuum heating drying oven machine is designed for lithium battery materials, battery electrodes, cells, and moisture-sensitive components. It combines vacuum drying, programmable PID temperature control, and a #304 stainless steel chamber to remove moisture and solvents at low temperature.
With models from DZF-6020 to DZF-6210, you can choose different chamber sizes, shelf layers, voltage, and vacuum pump configurations. MOQ is 1 set, CE certified, factory direct price from USD $800 to $1,200 per set.
Why Use a Vacuum Drying Oven for Lithium Battery Production?
Moisture control is critical in lithium battery manufacturing. Residual moisture in battery materials, electrodes, and cells can affect performance, cycle life, and safety. A vacuum drying oven reduces the boiling point of water and solvents, allowing low-temperature drying while reducing oxidation risk.
This Gelon vacuum heating drying oven is suitable for:
- Lithium battery materials
- Battery electrodes
- Pouch cells, cylindrical cells, and prismatic cells
- Battery research and development laboratories
- Vacuum embedding, curing, and plating applications
- Electronic components and moisture-sensitive materials
Key Features
- Radiant warm wall heating system provides optimal uniformity and conserves chamber space.
- 3 inch glass wool insulation prevents heat loss from the working chamber.
- Silicone door gasket and positive latch door maintain seal at all vacuum levels.
- Exclusive polycarbonate safety shield protects door glass.
- Easy-to-clean #304 stainless steel chamber interior.
- Vacuum and air lines constructed with corrosion-resistant stainless steel tubing.
- Programmable temperature controller with PID precision control and automatic adjustment.
- Over-temperature / over-radiation protection and anti-theft system.
- Temperature measurement accuracy 0.1°C, uniformity 5°C.
- Built-in 28 programmable programs; time period, temperature, and power can be set separately.
- Vacuum degree displayed from 0 to -0.1 MPa relative pressure.
- Achieved vacuum degree: -133 Pa.
- Time range: 1~9999 minutes.
- 1 year warranty.
Technical Specifications
| Model | DZF-6020 | DZF-6050 | DZF-6090 | DZF-6210* |
|---|---|---|---|---|
| Working Room Size (mm) | 300×300×275 | 415×370×345 | 450×450×450 | 560×600×640 |
| Overall Size (mm) | 605×490×450 | 710×560×550 | 610×660×1400 | 720×820×1750 |
| Loading Shelf / Bracket | 1 layer | 2 layers | 2 layers | 3 layers |
| Temperature Range | RT+10~250°C | RT+10~250°C | RT+10~250°C | RT+10~250°C |
| Temperature Resolution | ±0.1°C | ±0.1°C | ±0.1°C | ±0.1°C |
| Constant Temperature Volatility | ±1°C | ±1°C | ±1°C | ±1°C |
| Achieved Vacuum Degree | -133 Pa | -133 Pa | -133 Pa | -133 Pa |
| Time Range | 1~9999M | 1~9999M | 1~9999M | 1~9999M |
| Total Power | 450W | 1450W | 1400W | 2200W |
| Power Supply | AC220V ±10% 50±0.5Hz single-phase three-wire | AC220V ±10% 50±0.5Hz single-phase three-wire | AC220V ±10% 50±0.5Hz single-phase three-wire | AC220V ±10% 50±0.5Hz single-phase three-wire |
*Please confirm final model code. 220V/110V options are available; please confirm with sales before ordering.
Model Selection Guide
- DZF-6020: Compact 1-layer vacuum drying oven, ideal for small laboratory samples and R&D.
- DZF-6050: 2-layer medium chamber, suitable for battery materials and electrode drying.
- DZF-6090: Larger 2-layer chamber, good for higher sample volume and pilot testing.
- DZF-6210: 3-layer high-capacity model, suitable for larger batch drying and production support.
Applications
- Lithium battery vacuum drying
- Battery material drying
- Battery electrode drying
- Pouch cell, cylindrical cell, and prismatic cell drying
- Laboratory vacuum drying, curing, embedding, and plating
- Moisture-sensitive electronic components
- Chemical and pharmaceutical laboratory drying
OEM & Customization
Gelon supports OEM and customization for laboratory vacuum drying ovens:
- Voltage: 220V / 110V
- Chamber size and shelf layers
- Vacuum pump configuration
- Programmable controller settings
- Logo and label customization
- Wood packing for export
Packaging, Delivery, Payment & MOQ
- Place of Origin: China
- Brand Name: Gelon
- Certification: CE
- Minimum Order Quantity: 1 set
- Price: USD $800~$1,200 per set, depending on model and configuration
- Packaging Details: Standard packing / Wood packing
- Delivery Time: 20~25 days
- Payment Terms: L/C, D/A, D/P, T/T
- Supply Ability: 1000 sets per month
Frequently Asked Questions
1. What is a laboratory vacuum heating drying oven used for?
It is used for low-temperature drying of moisture-sensitive materials under vacuum, including lithium battery materials, electrodes, cells, chemicals, and electronic components.
2. Can this vacuum drying oven be used for lithium battery materials?
Yes. The Gelon DZF series is suitable for lithium battery materials, battery electrodes, and cells. Vacuum drying helps remove moisture and solvents at lower temperatures.
3. What is the temperature range of this vacuum drying oven?
The temperature range is RT+10~250°C, with a temperature resolution of ±0.1°C.
4. What vacuum degree can be achieved?
The achieved vacuum degree is -133 Pa. The vacuum degree is displayed from 0 to -0.1 MPa relative pressure.
5. Does it support programmable temperature control?
Yes. It uses a programmable temperature controller with PID precision control and supports 28 programmable programs. Time period, temperature, and power can be set separately.
6. What is the difference between DZF-6020, DZF-6050, DZF-6090, and DZF-6210?
They mainly differ in working room size, overall size, loading shelf layers, and total power. DZF-6020 is compact, while DZF-6210 is the high-capacity model.
7. Is 110V or 220V available?
The standard specification is AC220V ±10%, 50±0.5Hz, single-phase three-wire system. 110V is available as an option; please confirm with sales.
8. What is the MOQ and price?
MOQ is 1 set. Price is USD $800~$1,200 per set, depending on model, chamber size, voltage, shelves, and vacuum pump configuration.
9. What is the delivery time and payment term?
Delivery time is 20~25 days. Payment terms include L/C, D/A, D/P, and T/T.
10. Does it have CE certification and warranty?
Yes. It is CE certified and comes with a 1-year warranty.
