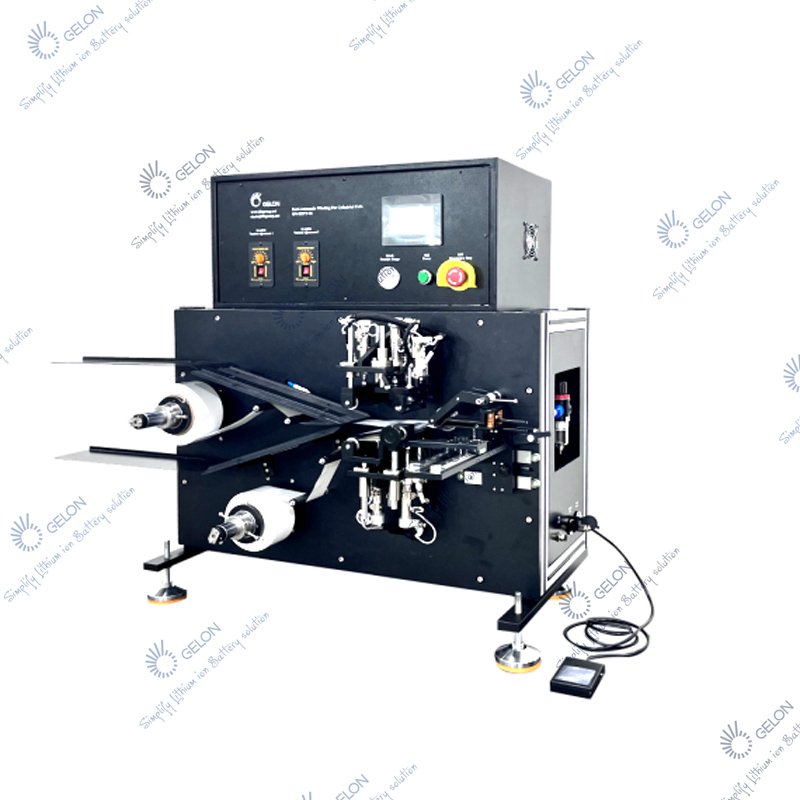

Semi-automatic Winding Machine
PRODUCT PARAMETERS
Description
Semi-automatic Winding Machine – Lithium-Ion Battery Electrode Winder for 18mm Cylindrical Cells
This Semi-automatic Winding Machine is specifically designed for the electrode winding process of lithium-ion batteries. It enables researchers and small-scale producers to realize cylindrical cell winding with precision and repeatability. The machine employs manual feeding, guide groove positioning, cutting, and manual unloading, making it particularly suitable for laboratory process exploration and product development.
Working Principle:
Operators manually feed the electrode and separator materials through the guide system. The guide groove ensures precise positioning before winding. A double insertion circular needle (standard diameter 3.5mm) forms the winding core. After winding, the cell is manually unloaded. The adjustable guide plate and pallet accommodate different material widths and cell sizes.
Key Features:
- Precision Winding: Achieves separator and electrode alignment accuracy of ≤±0.5mm.
- Standard Cell Size: Produces cylindrical cells with diameter Φ18mm and length 70mm (excluding tabs).
- Double Insertion Circular Needle: Standard needle diameter 3.5mm ensures consistent winding core formation.
- Adjustable Guide System: Guide plate length 300mm with adjustable width 30–70mm for material flexibility.
- Variable Winding Speed: Speed adjustable up to 50r/min for process optimization.
- Manual Operation: Simple manual feeding, positioning, cutting, and unloading ideal for R&D.
- Compact Design: Suitable for laboratory benchtops with footprint 1021×655×753mm.
Applications:
- Lithium-ion battery electrode winding process development
- Cylindrical cell prototyping (18mm diameter)
- Small-batch production of wound cells
- Academic and industrial battery research
Simplified Specifications
| Parameter | Specification |
|---|---|
| Winding Needle Type | Double insertion circular needle |
| Standard Needle Diameter | 3.5mm |
| Cell Diameter | Φ18mm |
| Cell Length (excluding tabs) | 70mm |
| Separator Alignment Accuracy | ≤±0.5mm |
| Electrode Alignment Accuracy | ≤±0.5mm |
| Guide Plate Size | Length 300mm, guide width 30–70mm (adjustable) |
| Pallet Size (standard) | Length 400mm, width 100mm (other sizes customizable) |
| Guide Roll Width | 100mm |
| Winding Speed | Max. 50r/min (adjustable) |
| Air Source | 0.6–0.8MPa |
| Power Supply | AC220V/50Hz or AC110V/60Hz (customizable) |
| Power Consumption | 1000W |
| Equipment Dimensions | 1021 (including feeding plate) × 655 × 753mm |
| Weight | Approx. 70kg |
