Manual Top Sealing Machine (Split)
PRODUCT PARAMETERS
Description

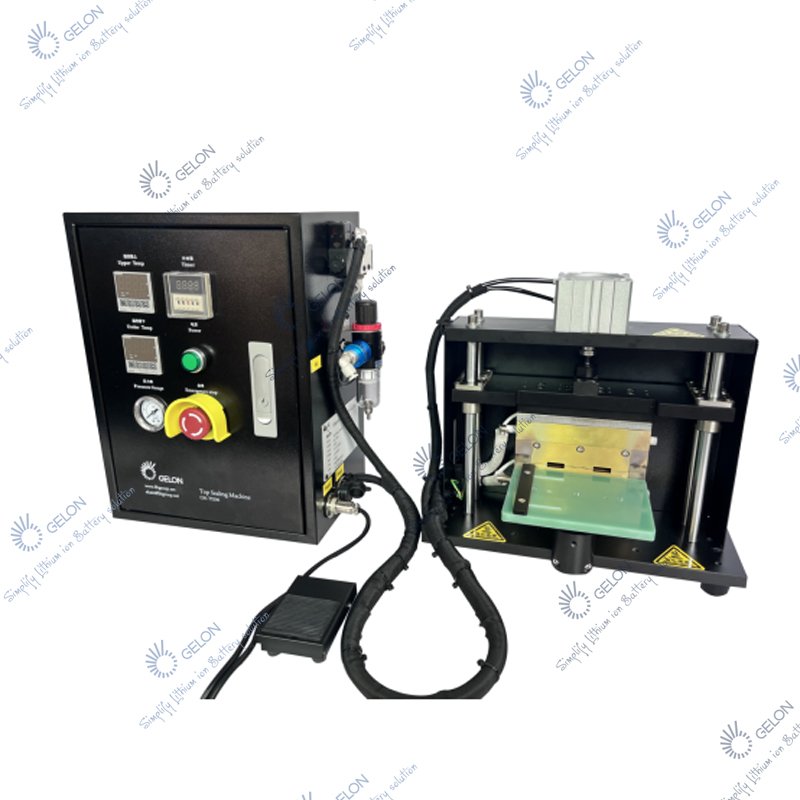

Manual Top Sealing Machine (Split) – Pouch Lithium Battery Aluminum Film Top Edge Sealer
This Manual Top Sealing Machine (Split) is a precision mechanical equipment specifically designed for the melting and sealing of the top edge of aluminum-plastic film used in pouch lithium batteries. It provides a unique practical effect and a user-friendly operating platform for reliable battery encapsulation.
Working Principle:
Heating elements raise the upper and lower sealing heads to a preset temperature (recommended 180°C). During operation, the upper and lower heads apply localized heat and pressure to the aluminum-plastic film for a short duration (recommended 3–4 seconds), melting the inner layers and fusing the two sides together. This creates a hermetic seal that encases the battery core within the aluminum-plastic film.
Key Features:
- Dedicated Top Sealing Design: Specifically engineered for top edge sealing of pouch lithium batteries.
- Independent Temperature Control: Separate controllers for upper and lower heads allow precise temperature adjustment (recommended 180°C, customizable based on needs).
- Adjustable Sealing Time: 0–99 seconds adjustable, with recommended 3–4 seconds for optimal results.
- Dual Start Operation Switches: Requires both hands to activate, ensuring operator safety during sealing.
- Temperature Alarm System: Built-in alarm for temperature too high or too low, preventing sealing defects.
- Split Design: Main unit compact for glove box use; separate control components.
- Wide Compatibility: Seals batteries up to L250×W200mm (including air bag and tabs).
- Consistent Seal Quality: Sealing width 5mm (standard), thickness 0–0.5mm.
Applications:
- Pouch lithium battery top edge sealing
- Battery R&D laboratories
- Small-batch pouch cell production
- Glove box-based battery assembly
Technical Parameters
| Parameter | Specification | Remarks |
|---|---|---|
| Upper Die Temperature | Recommended 180°C | Adjustable based on actual needs |
| Lower Die Temperature | Recommended 180°C | Adjustable based on actual needs |
| Sealing Time | Recommended 3–4s | 0–99s adjustable |
| Sealing Thickness | 0–0.5mm | – |
| Sealing Length | 200mm | – |
| Sealable Battery Size | Max L250mm × W200mm | Including air bag and tabs |
| Sealing Width | 5mm (Standard) | Customizable |
| Air Source | 0.6–0.8MPa Compressed Air | – |
| Power Supply | AC220V/50Hz or AC110V/60Hz | Customizable |
| Power Consumption | 1800W | – |
| Equipment Dimensions | L450 × W520 × H380 mm | – |
| Weight | Approx. 52 kg | – |
