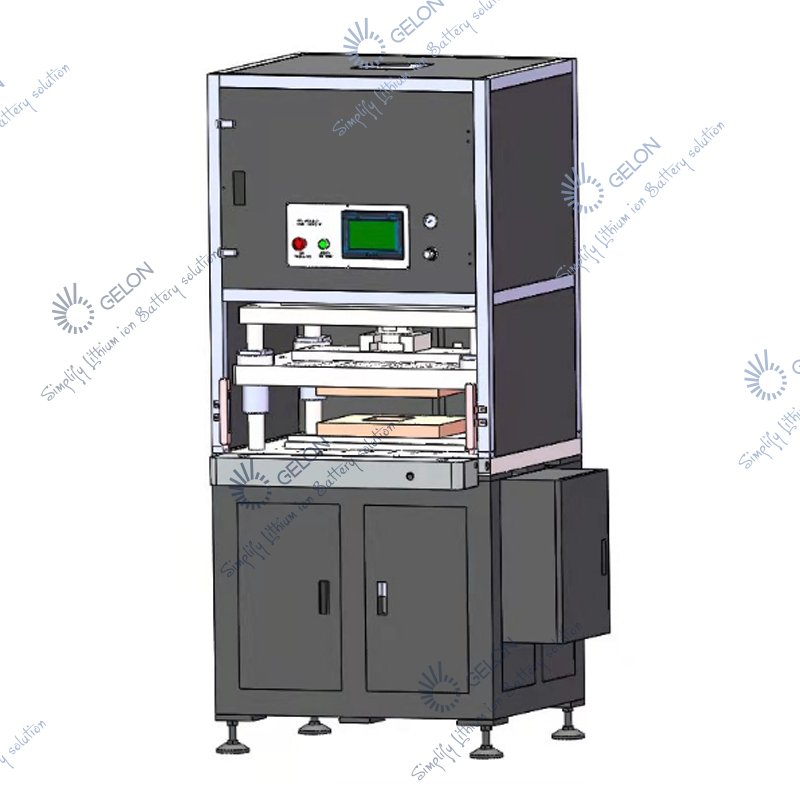

Aluminum Laminated Film Forming Machine ( Manual Type 500)
PRODUCT PARAMETERS
Description
Aluminum Laminated Film Forming Machine (Manual Type 500) – 20T Pouch Battery Deep Drawing Press
The Aluminum Laminated Film Forming Machine (Manual Type 500) is a precision stamping equipment specifically designed for deep drawing and forming of aluminum laminated film used in pouch lithium batteries. It creates precise cavities in the aluminum-plastic film that will later contain the battery electrode stack and electrolyte. With a robust 20-ton forming pressure and high-precision control systems, this machine delivers consistent, high-quality forming results for R&D and small-scale production.
Working Principle:
The machine utilizes a high-precision forming booster cylinder that drives a set of precision forming dies. The work sequence is as follows:
- The upper die positions the aluminum laminated film.
- The lower die rises to meet the film.
- When the lower die reaches the set position, a precisely controlled boosting space is formed.
- As boosting work reaches the programmed range, the lower die performs the stamping and forming operation.
- The machine employs three distinct action structures: upper die movement, pressurization, and lower die movement, all precisely coordinated.
Key Features:
- High-Precision Forming: Booster cylinder technology ensures accurate and repeatable forming results.
- Adjustable Forming Pressure: Maximum pressure 20T, adjustable according to material and depth requirements.
- Flexible Forming Capacity: Accommodates forming size up to L250×W180mm with depth up to 6mm (depth related to film thickness and tensile strength).
- Precision Tolerance: Forming size tolerance ±0.5mm for consistent product quality.
- Touch Screen Interface: User-friendly control panel for easy parameter setting and operation.
- Three-Action Control: Independent control of upper die, pressurization, and lower die for optimal forming sequence.
- Comprehensive Safety Features: All working parts enclosed within the rack protection, plus safety light curtain for operator protection.
- Smooth & Quiet Operation: Additional cylinder drive ensures accurate positioning, stable performance, and low noise.
- Robust Construction: Aluminum frame with black sealing plate, three-dimensional linear design for durability and aesthetics.
Applications:
- Deep drawing of aluminum laminated film for pouch lithium batteries
- Forming battery cavities for electrode stack placement
- R&D laboratories for battery prototype development
- Small-batch production of pouch cell casings
- Material testing for aluminum-plastic film formability
Technical Parameters
| Parameter | Specification | Remarks |
|---|---|---|
| Forming Size | Max. L250 × W180 mm | Customizable |
| Forming Pressure | Max. 20T | Adjustable according to requirements |
| Forming Depth | Max. 6 mm | Related to aluminum-laminated film thickness and tensile strength |
| Forming Size Tolerance | ±0.5 mm | – |
| Aluminum-Laminated Film Thickness | 0.1 – 0.2 mm | – |
| Air Source | 0.6–0.8 MPa Compressed Air | – |
| Power Supply | AC220V/50Hz or AC110V/60Hz | Customizable |
| Power Consumption | 2500W | – |
| Equipment Dimensions | Approx. L1120 × W940 × H2090 mm | – |
| Equipment Weight | Approx. 1 Ton (1000 kg) | – |
