Pneumatic Aluminum-laminated Film Forming Machine
PRODUCT PARAMETERS
Description
Pneumatic Aluminum-laminated Film Forming Machine – 1T Lab Press for Pouch Battery Cases

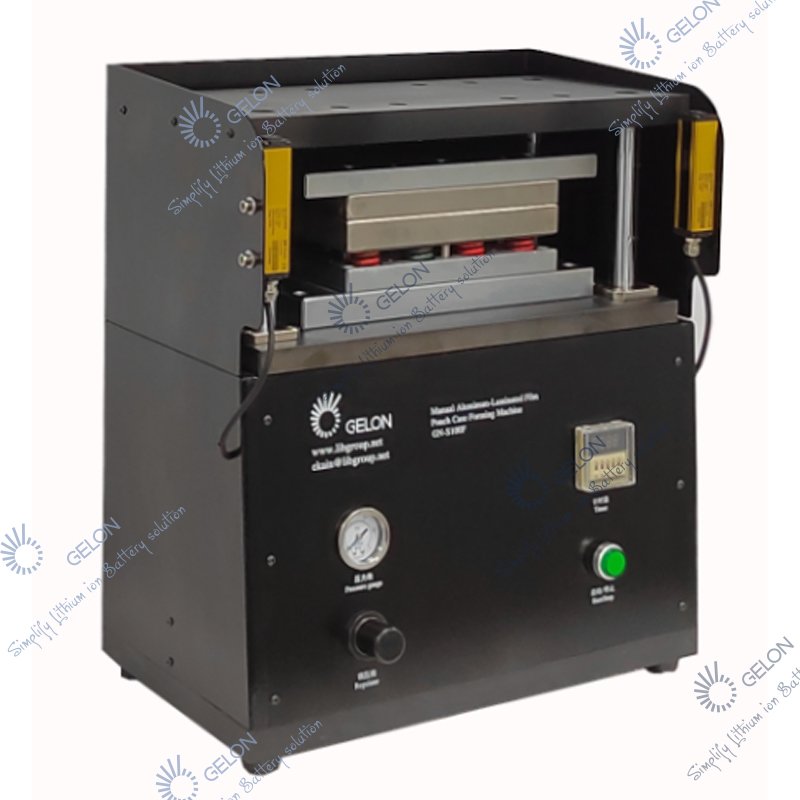

The Pneumatic Aluminum-laminated Film Forming Machine is a specialized mechanical equipment designed for precision forming of aluminum-laminated film cases used in lithium-ion pouch batteries. Utilizing a high-precision actuator cylinder, this machine creates consistent, high-quality cavities in aluminum-plastic film that will later contain the battery electrode stack and electrolyte.
Working Principle:
- The high-precision forming actuator cylinder drives the die upward.
- The die operates within the programmed range to form the pit in the aluminum-laminated film.
- After completing the forming operation, the lower die returns to its original position.
- The machine features two primary action structures: lower die rising and pressure pit forming.
Key Features:
- Precision Forming: High-precision actuator cylinder ensures accurate positioning and consistent forming results.
- Interchangeable Dies: Standard die size L62×W46mm; custom sizes available based on customer requirements.
- Adjustable Forming Pressure: Maximum pressure 1T (at 1MPa compressed air), adjustable for different materials and depths.
- Flexible Forming Depth: Up to 6mm depth (related to film thickness and tensile strength).
- Dimensional Accuracy: Forming tolerance ±0.5mm for reliable battery assembly.
- Comprehensive Safety: All working parts protected by machine frame and safety light curtain.
- Easy Maintenance: Wrinkled painted black sheet metal exterior with three-dimensional linear design for aesthetics and accessibility.
- Smooth Operation: Actuator cylinder drive ensures stable, reliable performance with low noise.
Applications:
- Forming aluminum-laminated film cases for pouch lithium batteries
- Laboratory R&D for battery prototype development
- Small-batch production of battery pouches
- Material testing for aluminum-plastic film formability
Technical Parameters
| Parameter | Specification | Remarks |
|---|---|---|
| Forming Size | Max. L62 × W46 mm | Standard die; customized sizes available |
| Forming Pressure | Max. 1T (1MPa Compressed Air) | Adjustable |
| Punching Depth | Max. 6 mm | Related to film thickness and tensile strength |
| Dimensional Tolerance | ±0.5 mm | – |
| Aluminum-laminated Film Thickness | 0.1 – 0.2 mm | – |
| Air Source | 0.5 – 0.8 MPa Compressed Air | – |
| Power Consumption | 100W | – |
