Battery Tab for Pouch Cell Assembly | Aluminum, Nickel & Ni-Plated Copper Tabs
PRODUCT PARAMETERS
Description

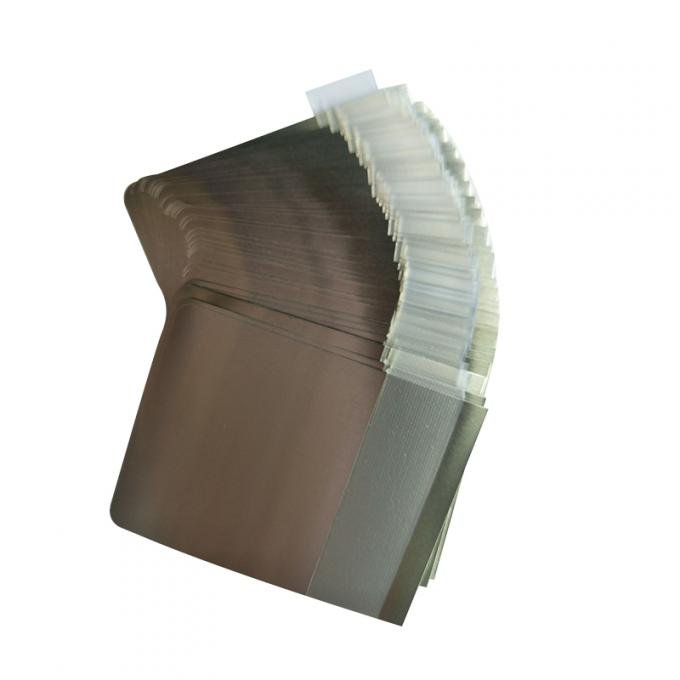

Battery Tab for Pouch Cell Assembly | Aluminum, Nickel & Ni-Plated Copper Tabs | Gelon
Product Overview
The Battery Tab is a critical component for lithium battery assembly, serving as the electrical connection between the electrode and the external circuit. We offer high-quality aluminum tabs, nickel tabs, and nickel‑plated copper tabs designed specifically for pouch cells, cylinder cells, and power cells.
These battery tabs feature PP adhesive tape (available in white, yellow, and black) that allows for immediate hot sealing during cell assembly. With 15+ years of experience in the lithium battery industry, we have perfected the manufacturing process to deliver tabs with exceptional quality, reliability, and performance.
Furthermore, our battery tabs offer:
- Customizable dimensions – width, length, and thickness to your specifications
- High-purity materials – Nickel 99.99%, Aluminum 1060
- Special surface treatment for excellent electrolysis resistance
- Outstanding ultrasonic welding functionality
- Superior tin functionality compared to similar domestic products
As a leading manufacturer in the lithium cell industry, Gelon provides a complete one‑stop solution for battery materials, equipment, and technology.
Business & Logistics Information
| Parameter | Details |
|---|---|
| Place of Origin | China |
| Brand Name | Gelon |
| Model Number | GN-Tab |
| Certification | ISO |
| Price | USD 0.5 – 20 per pair |
| Minimum Order Quantity | 500 pairs |
| Packaging Details | Standard Environmental Packaging |
| Delivery Time | 10-30 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10,000,000 pairs per month |
Key Product Features
1. Multiple Material Options
We offer three types of battery tabs to suit different applications:
| Material | Purity / Specification | Application |
|---|---|---|
| Aluminum Tab | Aluminum 1060 | Cathode connection for pouch cells |

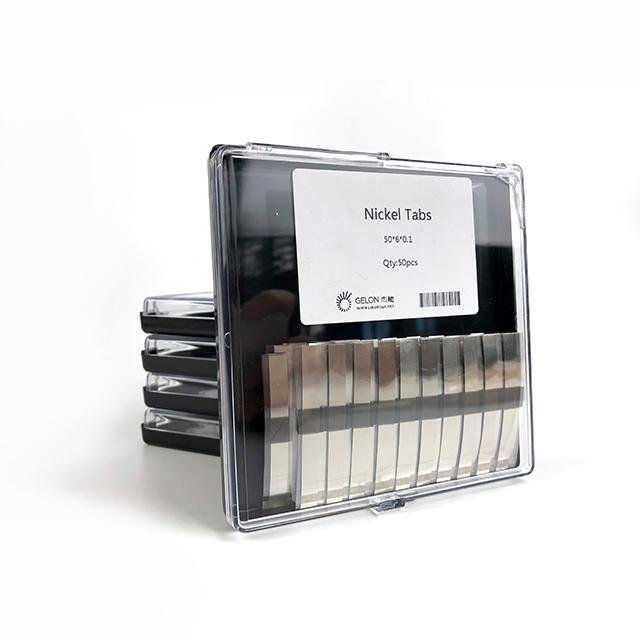

| Nickel Tab | Nickel 99.99% | Anode connection, excellent corrosion resistance |
| Ni-Plated Copper Tab | Copper with nickel plating | High conductivity with corrosion protection |
2. Customizable Dimensions
Our battery tabs can be tailored to your exact requirements:
- Thickness: 0.1mm, 0.2mm, 0.3mm, and up to 5mm
- Width: 3mm, 4mm, 10mm, 15mm, and custom sizes
- Length: Customizable to your specifications
3. PP Adhesive Tape Options
The battery tabs come with PP adhesive tape for hot sealing:
- PP White – standard option
- PP Yellow – alternative color option
- PP Black – alternative color option
- Enables immediate heat sealing during cell assembly
4. Superior Surface Treatment
- Special surface treatment technology on the metal belt
- Excellent electrolysis resistance for long-term reliability
- Ensures consistent performance throughout battery life
5. Outstanding Welding Performance
- Optimized for ultrasonic welding – clean, strong bonds
- Compatible with standard battery tab welding equipment
- Reliable connections for consistent cell performance
6. Superior Tin Functionality
- Better tin functionality than similar domestic products
- Ensures reliable solder connections when required
- Enhanced manufacturability
Technical Specifications
| Parameter | Details | |
|---|---|---|
| Product Name | Battery Tab | Pouch cell assembly materials |
| Material Options | Aluminum 1060, Nickel 99.99%, Nickel-plated Copper | |
| Thickness Range | 0.1mm – 5mm | Customizable |
| Width Options | 3mm, 4mm, 10mm, 15mm, and custom | |
| Tape Options | PP White, PP Yellow, PP Black | For hot sealing |
| Package Options | 50 pairs, 100 pairs, 1000 pairs | Custom packaging available |
| Certification | ISO |
Applications
- Pouch Cell Assembly: Cathode and anode connections for soft‑pack batteries
- Cylinder Cell Assembly: Tab connections for 18650, 21700, and other cylindrical cells
- Power Cell Manufacturing: High‑current applications requiring reliable connections
- EV Battery Production: Automotive‑grade battery tabs
- Energy Storage Systems: Stationary battery applications
- R&D Laboratories: Custom tab dimensions for prototype cells
Why Choose Gelon Battery Tabs
- 15+ Years of Industry Experience: As a leading manufacturer in the lithium cell industry, we have accumulated extensive expertise in battery material production, manufacturing, and equipment. This depth of experience ensures consistent quality and reliability.
- High‑Purity Materials: Our battery tabs use Nickel 99.99% and Aluminum 1060 – premium materials that deliver excellent conductivity and corrosion resistance.
- Customizable Dimensions: Whether you need specific thickness, width, or length, we can tailor our battery tabs to your exact specifications.
- Superior Surface Treatment: The special surface treatment technology ensures excellent electrolysis resistance, extending the service life of your batteries.
- Outstanding Welding Performance: Our tabs are optimized for ultrasonic welding, providing clean, strong, and reliable connections.
- Better Tin Functionality: Compared to similar domestic products, our tabs offer superior tin functionality for reliable solder connections when required.
- Complete One‑Stop Solution: Beyond battery tabs, Gelon supplies full sets of lithium battery materials, production equipment, and technology – making us your ideal partner for turn‑key projects.
- Global Reach: We have worked with many large companies worldwide and have achieved massive projects across every corner of the globe.
Complete Battery Solutions from Gelon
Gelon is a leading manufacturer in the lithium cell industry with 15+ years of experience in battery material production, battery manufacturing, and equipment production. We offer a one‑stop solution (turn‑key project) for your battery needs:
1. Full Set of Lithium Battery Materials
- Cathode Materials: LiMn₂O₄, LTO, LiNiMnCoO₂ (NMC), LiCoO₂
- Anode Materials: Graphite (MCMB), natural graphite
- Current Collectors: Aluminum foil, copper foil, carbon coated copper foil
- Separators: Battery separator
- Battery Tabs: Aluminum, nickel, nickel‑plated copper
- Electrolyte: Various formulations
2. Full Set of Lithium Battery Production Equipment
Complete laboratory and production equipment including:
- Mixing machine → Coating machine → Oven → Rolling machine
- Slitting machine → Stacking machine → Winding machine → Welding machine
- Sealing machine → Glove boxes → Battery testers → And more…
3. Full Set of Lithium Battery Technology
- Laboratory Design: We can design your battery lab according to your requirements
- Production Line Design: Complete production line layout and configuration
- Process Support: Technical guidance for battery manufacturing
Frequently Asked Questions (FAQ)
Q: What materials are available for these battery tabs?
A: We offer aluminum tabs (Aluminum 1060) , nickel tabs (Nickel 99.99%) , and nickel‑plated copper tabs.
Q: What thickness options are available?
A: Thickness can range from 0.1mm to 5mm, customizable to your requirements.
Q: What width options are available?
A: Standard widths include 3mm, 4mm, 10mm, and 15mm. Custom widths are also available.
Q: What PP tape colors are available?
A: We offer PP White, PP Yellow, and PP Black adhesive tape for hot sealing.
Q: What is the minimum order quantity?
A: The minimum order quantity is 500 pairs.
Q: What is the typical delivery time?
A: Standard delivery is 10-30 working days depending on order quantity and customization requirements.
Q: Are these battery tabs suitable for ultrasonic welding?
A: Yes. Our tabs are optimized for ultrasonic welding, providing clean, strong, and reliable connections.
Q: What is the advantage of the special surface treatment?
A: The special surface treatment technology provides excellent electrolysis resistance, ensuring long‑term reliability in battery applications.
Q: How does the tin functionality compare to domestic products?
A: Our battery tabs offer superior tin functionality compared to similar domestic products, ensuring reliable solder connections when required.
Q: Do you offer custom sizes?
A: Yes. We provide customization services according to customer needs for thickness, width, length, and packaging.
Q: Can you supply other battery assembly materials?
A: Yes! Gelon supplies a complete range of lithium battery materials, production equipment, and turn‑key solutions.
Shipping and Packaging Information
- Packaging: Standard Environmental Packaging ensures safe delivery
- Packaging Options: 50 pairs, 100 pairs, 1000 pairs – customizable
- Shipping Methods: We offer various shipping options based on your location and timeline
