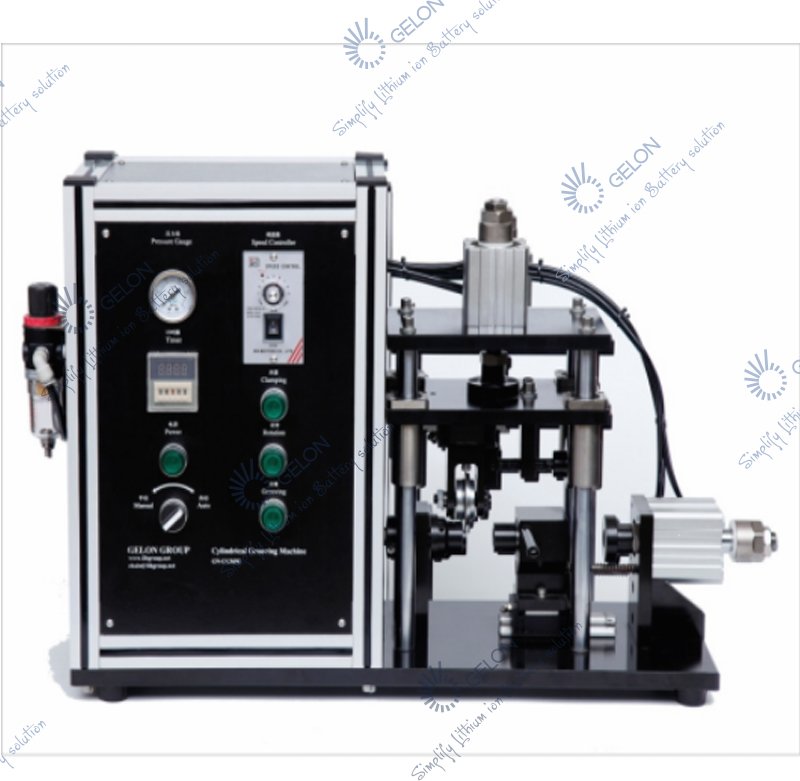

Cylinder Cell Grooving Machine – Pneumatic Groover for 18650/26650/32650 Batteries
The Cylinder Cell Grooving Machine is a precision pneumatic equipment designed for the grooving process of cylindrical lithium-ion batteries. It creates accurate grooves on battery cases made of steel or aluminum, which are essential for sealing and terminal placement. With interchangeable dies, this machine accommodates various cylindrical cell specifications, making it ideal for laboratory R&D and small-scale production.
Working Principle:
The machine uses removable rolling cutters driven by pneumatic high-pressure actuation. During operation:
- The appropriate grooving die is fastened in place based on the battery specification.
- The rolling cutter descends via pneumatic activation.
- The distance between left and right grooves is adjusted.
- After aligning the die with the battery case, screws are tightened.
- A test groove is performed to verify accuracy before normal operation begins.
Key Features:
- Interchangeable Dies: Supports 18650, 26650, 32650 specifications (customizable for other sizes).
- High Precision Grooving: Machining accuracy ±0.1mm with pressure accuracy ±1.5%.
- Adjustable Groove Parameters: Groove depth adjustable 1.2–2.0mm, width 1.1–1.5mm (customizable).
- Durable Rolling Cutters: Hob life ≥1 million cycles under normal use.
- Material Versatility: Applicable to steel and aluminum case materials.
- Axial Deformation Compensation: Built-in function to maintain dimensional stability during grooving.
- Single Station Operation: Manual loading and unloading for simplicity and control.
- Glove Box Compatible: Compact design allows placement inside inert atmosphere glove boxes.
- Production Speed: Approximately 3 pieces per minute (18650 standard).
Applications:
- Grooving cylindrical lithium-ion battery cases (18650, 26650, 32650)
- Laboratory battery material R&D
- Cylindrical capacitor production
- Small-scale factory trial production
- Glove box-based battery assembly
Technical Parameters
| Parameter | Specification | Remarks |
|---|---|---|
| Groove Depth | 1.2 – 2.0 mm adjustable | Can be customized |
| Groove Width | 1.1 – 1.5 mm | Can be customized |
| Machining Accuracy | ±0.1 mm | – |
| Pressure Accuracy | ±1.5% | – |
| Hob Life | ≥1 million times | Normal use |
| Working Speed | Approx. 3 pcs/min | Standard for 18650 |
| Power Supply | AC220V/50Hz or AC110V/60Hz | Can be customized |
| Gas Source | 0.6–0.8 MPa compressed air | – |
| Power Consumption | 300W | – |
| Equipment Dimensions | Approx. L820 × W260 × H480 mm | – |
| Equipment Weight | Approx. 55 kg | – |
