Grading machine
PRODUCT PARAMETERS
Description

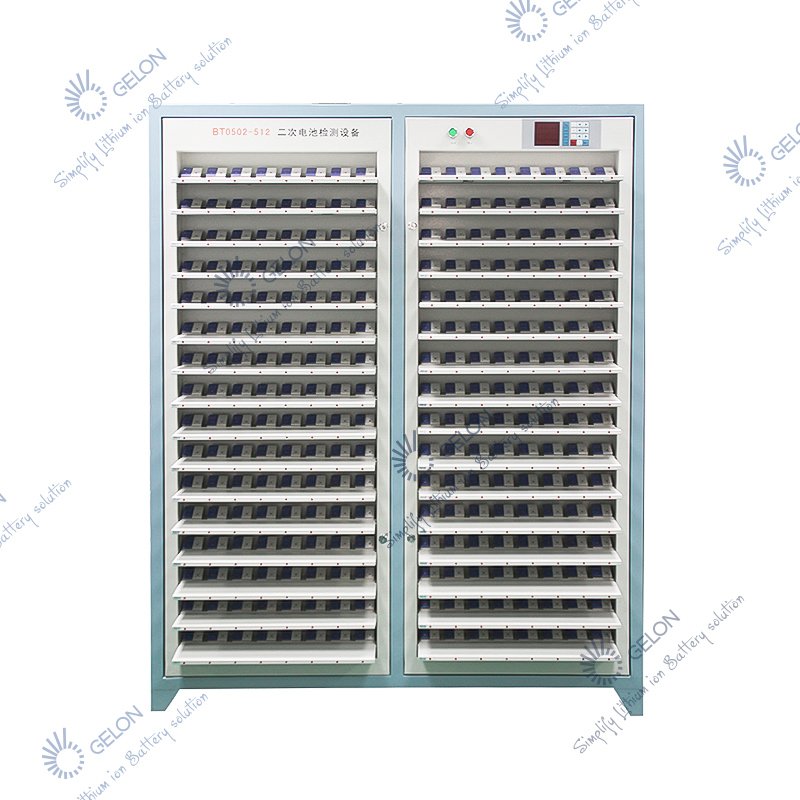

512 Channel Battery Grading Machine – Formation & Capacity Division System for Polymer Li-ion Cells
This 512 Channel Battery Grading Machine is specifically designed for the formation and capacity division of polymer lithium-ion batteries. It performs charging in constant current (CC), charging in constant current and constant voltage (CCCV), discharging in constant current, stop functions, and cycle testing.
Key Features:
- Non-Contact Control: Seamless transition from constant current to constant voltage charging without impact, particularly suitable for Li-ion battery charging requirements.
- Unique Constant Current-Constant Voltage Power Supply: Optimized for battery formation processes.
- Modular Structure: Safe and reliable for long-term continuous operation.
- Four-Line Method Measurement: Polymer Li-ion special fixture eliminates wiring and contact errors for high testing accuracy.
- High Precision: Current measuring accuracy ±(0.2% RD ± 0.2%FS) with 1mV voltage resolution.
- RS485 Communication: Baud rate 57600 bit for reliable data transfer.
Applications:
- Polymer lithium-ion battery formation
- Capacity grading and sorting
- Battery cycle life testing
- Research and development of battery materials
- Quality control in battery production
Technical Specifications
| Parameter | Specification |
|---|---|
| Power Supply | AC220V/50Hz |
| Total Power | 8300W |
| Dimensions | 1450 × 380 × 1700 mm |
| Voltage Measuring Range | 0.1 – 5V |
| Voltage Resolution | 1 mV |
| Current Range | 0 – 2A |
| Current Measuring Accuracy | ±(0.2% RD ± 0.2%FS) |
| Source Supply | 220V ±10% / 50Hz |
| Communication Mode | RS485, baud rate 57600 bit |
| Number of Channels | 512 |
| Measurement Method | Four-line method with polymer Li-ion special fixture |
