Industrial Glove Box for Battery Making | Double & Four Station | GN-GB-2
PRODUCT PARAMETERS
Description

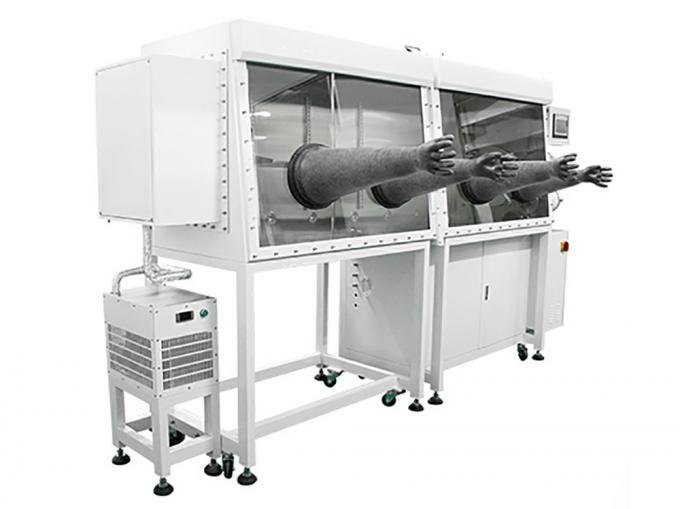

Industrial Glove Box for Battery Making | Double & Four Station | GN-GB-2 | CE Certified
Product Overview
The GN-GB-2 Industrial Glove Box is a high-performance inert atmosphere system designed specifically for lithium battery manufacturing and research. We engineered this advanced glove box to provide the ultra-low moisture and oxygen environment essential for handling sensitive battery materials such as electrolytes, electrodes, and separators.
This versatile glove box is available in double‑station and four‑station configurations, allowing you to choose the setup that best fits your production or research needs. The system features a closed recirculation purification system that continuously removes water and oxygen, maintaining levels below 1 ppm – ideal for lithium battery applications requiring <11 ppm moisture.
Furthermore, this glove box offers advanced intelligent features:
- IoT‑ready intelligent system for mobile control and centralized management
- Real‑time equipment status synchronization
- Equipment data report records with historical data inquiry
- Active alarm notifications for immediate awareness
- Remote debugging and online diagnostics
- Online customer service support
With robust 304 stainless steel construction, 8mm tempered safety glass front window, and comprehensive purification capabilities, this industrial glove box delivers the reliability and performance required for professional battery production lines and R&D laboratories.
Business & Logistics Information
| Parameter | Details |
|---|---|
| Place of Origin | Guangdong, China |
| Brand Name | GELON |
| Model Number | GN-GB-2 |
| Certification | CE |
| Price | USD 35,580 – 39,600 per set |
| Minimum Order Quantity | 1 set |
| Packaging Details | Standard export package |
| Delivery Time | 30 working days |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability | 10 sets per month |
| Warranty | 1 Year |
Key Design Features
1. Double & Four Station Configurations
This glove box is available in two configurations to suit your needs:
- Double station – ideal for single‑operator research applications
- Four station – higher throughput for production environments
- Flexible configuration to match your workflow
2. Ultra‑Low H₂O/O₂ Environment
This industrial glove box achieves exceptional purity:
- Water and oxygen levels: <1 ppm under standard conditions
- Meets and exceeds lithium battery requirements (<11 ppm moisture)
- Ideal for moisture‑sensitive materials and processes
3. Intelligent IoT System
The glove box can be equipped with an advanced Internet of Things (IoT) intelligent system that enables:
- Mobile control and centralized management
- Real‑time synchronization of equipment status
- Equipment data report records with historical data inquiry
- Active alarm notifications for immediate awareness
- Remote debugging and online fault diagnosis
- Online repair and online customer service support
4. High‑Quality 304 Stainless Steel Construction
- Material: 304 stainless steel, thickness 3mm
- Outer surface: 304 stainless steel
- Inner surface: Oil film drawing surface
- Dimensions: Length 1220mm, depth 750mm, height 900mm
- Corrosion‑resistant, durable, and easy to clean
5. Tempered Safety Glass Front Window
- Tilting window design for ergonomic access
- Material: Transparent toughened safety glass
- Thickness: 8mm
- Excellent visibility for monitoring operations
6. High‑Performance Gloves
- Material: Butyl rubber
- Thickness: 0.4mm
- Size: 7″ or 8″ diameter
- Glove mouth: POM or aluminum alloy with O‑ring seal
- Chemical‑resistant for electrolyte handling
7. Comprehensive Filtration System
- Filter specification: 0.3μm
- Configuration: One gas inlet and one gas outlet
- Ensures clean, particle‑free atmosphere
8. Adjustable Stainless Steel Shelves
- Material: Stainless steel
- Configuration: Built‑in 2 layers
- Height adjustable for flexible workspace organization
9. LED Lighting
- Location: LED light installed in lampshade
- Bright, energy‑efficient illumination for clear visibility
10. Versatile Interface Options
- Specification: DN40KF
- Several spare interfaces for future expansion
- 1 power interface (220V) for internal equipment
Technical Specifications
| Parameter | Value | Remarks |
|---|---|---|
| Product Name | Double Station Glove Box | Four station available |
| Model | GN-GB-2 | |
| Suitable Substrate | Cathode and anode electrode of lithium battery | |
| Application | Remove water and oxygen continuously | |
| Box Material | 304 stainless steel | Thickness 3mm |
| Outer Surface | 304 stainless steel | |
| Inner Surface | Oil film drawing surface | |
| Box Dimensions (L×D×H) | 1220 × 750 × 900 mm | |
| Front Window | Tilting window, tempered safety glass | Thickness 8mm |
| Glove Mouth Material | POM or aluminum alloy | O‑ring seal |
| Gloves | Butyl rubber | 0.4mm thickness, 7″ or 8″ |
| Filter | 0.3μm | 1 gas inlet, 1 gas outlet |
| Shelf | Stainless steel | Built‑in 2 layers, height adjustable |
| Cabinet Lighting | LED light | Installed in lampshade |
| Interfaces | DN40KF | Several spare, 1 power interface (220V) |
| Voltage Input | AC220V / 50Hz | |
| Customization | YES | |
| Other Equipment | Coating machine, winding machine, slurry mixer | Available |
| Technical Support | Yes | According to customer request |
How This Industrial Glove Box Works
Step 1: Inert Gas Introduction
You introduce your chosen inert gas (N₂, Argon) into the glove box. The system is designed for high‑purity inert gas sources for optimal performance.
Step 2: Closed Recirculation Purification
The circulating fan continuously moves inert gas through the purifier, which removes water and oxygen. This closed‑loop system maintains ultra‑low impurity levels.
Step 3: Atmosphere Monitoring
The control system continuously monitors moisture and oxygen levels, maintaining them below 1 ppm for reliable lithium battery assembly.
Step 4: IoT Intelligent Control (Optional)
With the IoT system enabled, you can:
- Monitor equipment status in real‑time from mobile devices
- Access historical data reports
- Receive active alarm notifications
- Perform remote diagnostics and debugging
- Connect with online customer service
Step 5: Material Transfer
Use the antechamber (available on select configurations) to transfer materials in and out without compromising the main chamber atmosphere.
Step 6: Battery Assembly
With the atmosphere maintained at ultra‑low H₂O/O₂ levels, you can safely handle moisture‑sensitive materials and perform lithium battery assembly operations through the glove ports.
Applications
- Lithium Battery R&D: Developing new cell chemistries and designs
- Pouch Cell Assembly: Handling electrolytes and electrodes
- Coin Cell Fabrication: Precision assembly of test cells
- Solid‑State Battery Research: Processing moisture‑sensitive solid electrolytes
- University Laboratories: Battery research and education
- Production Lines: Small to medium‑scale battery manufacturing
Why Choose Gelon GN-GB-2 Industrial Glove Box
- Ultra‑Low Impurities: Achieves <1 ppm H₂O and O₂ – exceeding lithium battery requirements and providing confidence in your experimental results.
- Intelligent IoT Ready: The optional Internet of Things system enables mobile control, real‑time monitoring, remote diagnostics, and online support – bringing Industry 4.0 capabilities to your glove box.
- Double & Four Station Configurations: Choose the configuration that best fits your workflow – from single‑operator research to high‑throughput production.
- 304 Stainless Steel Construction: The chamber is built from high‑quality 304 stainless steel (3mm thickness) for durability, corrosion resistance, and easy cleaning – essential for battery research environments.
- Tempered Safety Glass Window: The 8mm thick, tilting safety glass provides excellent visibility while ensuring operator safety.
- Chemical‑Resistant Gloves: Included butyl rubber gloves (0.4mm thickness, 7″ or 8″) resist chemicals commonly used in battery electrolyte handling.
- Adjustable Stainless Steel Shelves: Two built‑in stainless steel shelves with height adjustment provide flexible workspace organization.
- Comprehensive Interface Options: Multiple DN40KF interfaces and a 220V power interface allow for easy integration of internal equipment.
- CE Certified: We certified this equipment for international markets, meeting stringent safety and quality standards.
- Global Support: With successful installations worldwide and turn‑key project experience, Gelon brings proven expertise to your battery manufacturing operations.
Complete Battery Solutions from Gelon
The GN-GB-2 Industrial Glove Box is part of Gelon’s comprehensive lithium battery equipment line. We offer a complete ecosystem for battery research and production:
1. Full Set of Lithium Battery Materials
- Cathode Materials: LFP, LMO, LCO, NMC, NCA
- Anode Materials: LTO, MCMB, natural graphite
- Current Collectors: Aluminum foil, copper foil, carbon coated copper foil
- Separators: Battery separator
- Electrolyte: Various formulations
2. Full Set of Lithium Battery Production Equipment
Complete production equipment including:
- Glove box → Coating machine → Oven → Rolling machine
- Slitting machine → Stacking machine → Winding machine → Sealing machine
- Battery testers → And more…
3. Turn-Key Project Solutions
Based on extensive battery production experience, we offer turn‑key solutions for:
- Lithium battery laboratories
- Mobile battery pilot lines
- EV battery production lines
Frequently Asked Questions (FAQ)
Q: What purity levels can this industrial glove box achieve?
A: The system maintains <1 ppm for both water and oxygen – well below the <11 ppm requirement for lithium battery assembly.
Q: What are the box dimensions?
A: The box dimensions are 1220mm (length) × 750mm (depth) × 900mm (height) , with 3mm thick 304 stainless steel construction.
Q: What material is the front window made from?
A: The front window is 8mm thick tempered safety glass with a tilting design for ergonomic access.
Q: What gloves are included?
A: We include butyl rubber gloves (0.4mm thickness) in 7″ or 8″ diameter, with POM or aluminum alloy glove mouths and O‑ring seals.
Q: Does it include the IoT intelligent system?
A: The IoT system is an optional feature that enables mobile control, remote diagnostics, and centralized management.
Q: What is the filter specification?
A: The filter is 0.3μm with one gas inlet and one gas outlet.
Q: What interfaces are available?
A: The glove box features several DN40KF spare interfaces and one 220V power interface for internal equipment.
Q: Are the shelves adjustable?
A: Yes. The glove box includes two built‑in stainless steel shelves with height‑adjustable positioning.
Q: What is the voltage input?
A: The glove box requires AC220V / 50Hz power supply.
Q: Can the glove box be customized?
A: Yes. We offer customization options to meet your specific requirements.
Q: Is the glove box CE certified?
A: Yes, this equipment is CE certified, meeting international safety and quality standards.
Q: What is the delivery time?
A: Standard delivery is 30 working days after order confirmation.
Shipping and Packaging Information
- Packaging: Standard export package ensures safe international delivery
- Shipping Methods: We offer various shipping options based on your location and timeline
