LTO Anode Material – Lithium Titanate Oxide (Li4Ti5O12) Powder
PRODUCT PARAMETERS
Description
GELON GN-LTO-1 LTO anode material is a high-performance lithium titanate oxide (Li4Ti5O12) anode powder designed for high-rate lithium-ion batteries, fast-charging systems, and long-cycle-life energy storage applications. It offers excellent stability, good safety, and reliable 1C capacity, making it an ideal anode material for demanding battery designs.
As a China-based lithium battery material and equipment supplier, GELON provides battery-grade LTO anode powder, lithium-ion battery raw materials, solid-state battery raw materials, and lithium battery production equipment. OEM and sample orders are available.
MOQ: 1 kg for sample/trial order; 5 kg for bulk trial order.
Price: Contact us for the latest price.
Sample: Available.
Delivery: 7–10 working days.
Product Overview

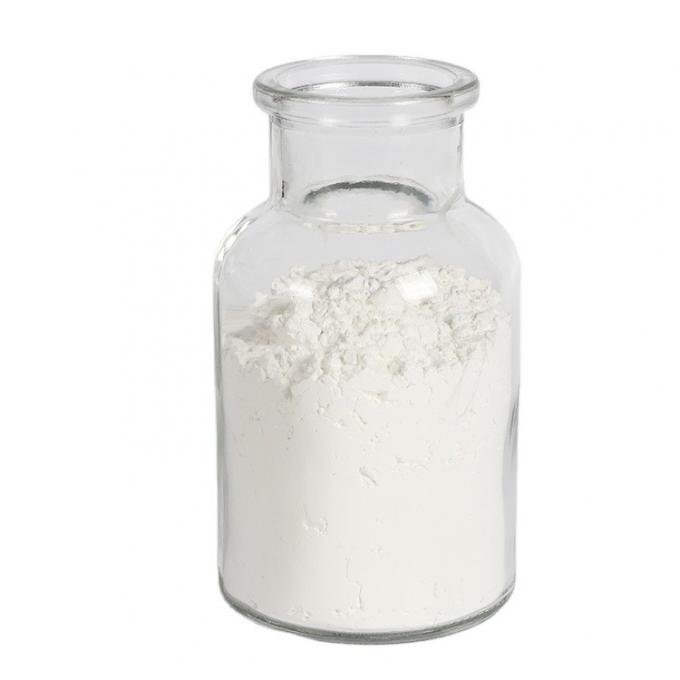

LTO anode material, also known as lithium titanate oxide or Li4Ti5O12 anode powder, is a spinel-structured anode material for lithium-ion batteries. Compared with conventional graphite anodes, LTO material is known for its stable structure, excellent high-rate performance, and long service life. GELON GN-LTO-1 is suitable for high-rate discharge and stable cycling applications.
Key Features of GELON GN-LTO-1 LTO Anode Material
- High-rate discharge performance
- Good structural stability and long cycle life
- Reliable 1C capacity: ≥150.0 mAh/g
- 1C efficiency: ≥88.0%
- Tap density: ≥0.65 g/cm³
- Specific surface area: ≤6.0 m²/g
- Controlled particle size distribution
- Suitable for fast-charging lithium-ion battery systems
- Battery-grade material with consistent quality
- OEM and customized supply support
Technical Specifications
| Item | Specification |
|---|---|
| Product | Li4Ti5O12 |
| Type | GN-LTO-1 |
| Application | High-rate discharge, good stability |
| D10 (μm) | 0.1–0.5 |
| D50 (μm) | 0.7–1.6 |
| D90 (μm) | ≤10.0 |
| Tap Density (g/cm³) | ≥0.65 |
| Specific Surface Area (m²/g) | ≤6.0 |
| 1C Capacity (mAh/g) | ≥150.0 |
| 1C Efficiency (%) | ≥88.0 |
Product Details
| Place of Origin | China |
| Brand Name | GELON |
| Model Number | GN-LTO-1 |
| Certification | CE; RoHS, MSDS and COA available upon request |
| MOQ | 1 kg for sample/trial order; 5 kg for bulk trial order |
| Price | Contact for latest price |
| Packaging | Standard export carton; customized packaging available |
| Delivery Time | 7–10 working days |
| Payment Terms | L/C, D/P, T/T, Western Union |
| Supply Ability | 10,000 kg per month |
| Sample | Yes |
| Warranty | 3 months–1 year |
Applications of LTO Anode Material
GELON GN-LTO-1 lithium titanate oxide anode powder is suitable for high-rate and long-life lithium-ion battery applications, including:
- High-rate discharge lithium-ion batteries
- Fast-charging battery systems
- Hybrid electric vehicles (HEV)
- Electric buses and commercial vehicles
- Energy storage systems (ESS)
- UPS and industrial backup power
- Regenerative braking systems
- Low-temperature battery applications
- Solid-state battery research and development
- Supercapacitor hybrid devices
Why Choose GELON LTO Anode Material?
- Battery material + equipment supplier: GELON supplies lithium-ion battery raw materials, solid-state battery raw materials, and lithium battery production equipment.
- Stable supply capacity: 10,000 kg per month to support pilot lines and volume production.
- Quality control: Battery-grade LTO anode powder with consistent particle size, tap density, and electrochemical performance.
- Sample support: Samples are available for evaluation before bulk orders.
- OEM service: Customized specifications, packaging, and branding support are available.
- Export experience: Standard export carton packaging and international payment terms.
LTO vs Graphite Anode: Key Differences
| Property | LTO Anode | Graphite Anode |
|---|---|---|
| Voltage Plateau | Around 1.55 V vs Li/Li+ | Around 0.1 V vs Li/Li+ |
| Energy Density | Lower | Higher |
| Rate Capability | Excellent | Good |
| Cycle Life | Very long | Good |
| Safety | High | Lower than LTO in fast-charge conditions |
| Cost | Higher | Lower |
| Best For | High power, fast charging, long life, safety | High energy density, cost-sensitive applications |
Quality Control, Packaging & Delivery
Each batch of GELON LTO anode powder is produced under strict quality control. We can provide relevant documents such as COA and MSDS upon request. The product is packed in standard export carton packaging, suitable for international transport. Customized packaging is available for OEM customers.
- Packaging: Standard export carton; inner PE bag available.
- Delivery Time: 7–10 working days after order confirmation.
- Payment Terms: L/C, D/P, T/T, Western Union.
- Supply Ability: 10,000 kg per month.
OEM & Customization
GELON supports OEM and customized requirements for LTO anode material. We can discuss particle size, tap density, specific surface area, packaging, labels, and batch documentation based on your battery design and production needs. Please contact us with your target specification.
Frequently Asked Questions
1. What is LTO anode material?
LTO anode material is lithium titanate oxide, usually Li4Ti5O12. It is used as an anode material for lithium-ion batteries, especially for high-rate, fast-charging, and long-cycle-life applications.
2. What is the MOQ for GELON GN-LTO-1?
MOQ is 1 kg for sample/trial orders and 5 kg for bulk trial orders. For larger quantities, please contact us for details.
3. Can I get a sample of LTO anode powder?
Yes. Samples are available for evaluation. Please contact us with your required quantity and application.
4. What is the price of LTO anode material?
Price depends on quantity, specification, packaging, and shipping terms. Please contact us for the latest price.
5. What is the delivery time?
The standard delivery time is 7–10 working days after order confirmation.
6. Is GELON GN-LTO-1 suitable for high-rate batteries?
Yes. GN-LTO-1 is designed for high-rate discharge and good stability, with 1C capacity ≥150.0 mAh/g and 1C efficiency ≥88.0%.
7. What is the difference between LTO and graphite anode?
LTO offers excellent rate performance, long cycle life, and high safety, but lower energy density and higher cost. Graphite offers higher energy density and lower cost, but may have limitations in fast-charging and safety performance.
8. Do you provide COA, MSDS, and RoHS documents?
Yes. COA, MSDS, and RoHS documents are available upon request. The product is CE certified.
9. Do you support OEM orders?
Yes. GELON supports OEM specifications, packaging, and branding. Please send your requirements to our sales team.
10. Do you also supply lithium battery production equipment?
Yes. GELON supplies lithium-ion battery raw materials, solid-state battery raw materials, and lithium battery production equipment. We can support both material and equipment needs.
Request a Quote for LTO Anode Material
Looking for a reliable LTO anode material supplier? GELON provides battery-grade Li4Ti5O12 lithium titanate oxide anode powder with stable quality, sample support, OEM service, and fast delivery.
Please send us your required quantity, specification, and application. Our team will reply with the latest price, lead time, and shipping details.
