PVDF Binder for Lithium Ion Battery – PVDF-9300 Battery Grade Powder
PRODUCT PARAMETERS
Description
Introduction
PVDF-9300 is a battery-grade polyvinylidene fluoride (PVDF) binder designed for lithium-ion battery electrode preparation. It is widely used for mixing with cathode powder to prepare stable electrode slurry for lithium-ion battery research and production.
Polyvinylidene fluoride, or PVDF, is a fluorinated thermoplastic with outstanding resistance to most mineral and organic acids, aliphatic and aromatic hydrocarbons, alcohols, halogenated solvents, and oxidizing environments. It also offers excellent aging resistance, keeping its properties stable after many years of continuous use.
As a reliable PVDF binder for lithium ion battery applications, Gelon PVDF-9300 provides consistent quality, high purity, and stable performance for battery manufacturers and research laboratories.
Key Features
- Battery-grade PVDF powder for lithium-ion battery cathode
- High purity and stable molecular weight
- Excellent chemical resistance and aging resistance
- Suitable for mixing with cathode powder and conductive carbon
- Vacuum sealed in plastic bag for safe storage and transport
- CE certified
- COA and MSDS can be provided
- MOQ: 1kg, sample available
- Stable supply: 3000 kilograms per month
PVDF-9300 Technical Specifications
| Test Item | Value | Test Method | Test Condition |
|---|---|---|---|
| Product Name | PVDF | — | — |
| Type | PVDF-9300 | — | — |

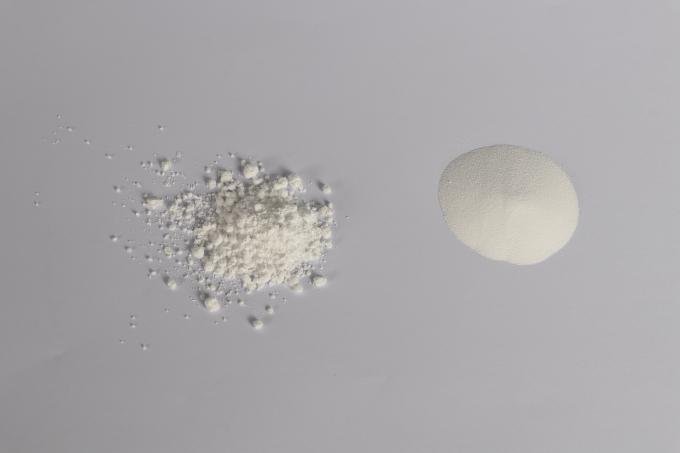

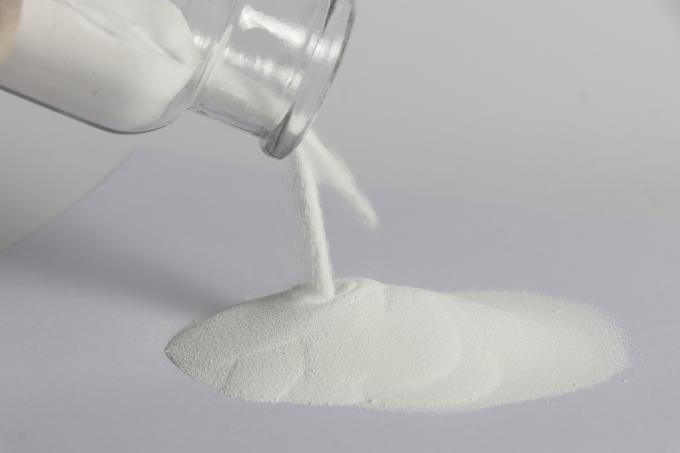

| Appearance | White powder | Visual inspection | Dustless |
| Standard Relative Density | 1.75–1.77 g/cm³ | D792 | @23/23°C |
| Rate of Water Content | ≤0.10% | D570 | 110°C, 0.09MPa, 1.5h |
| Melting Point | 160–170°C | D3418 | — |
| Refractive Index | 1.42 | D542 | At Sodium D line, 23°C |
| Molecular Weight | Approx. 100 × 10⁴ | GPC inspection | — |
| Coefficient of Linear Thermal Expansion | ≤13 × 10⁻⁵ °C⁻¹ | D696 | — |
| Deflection Temperature | 125–140°C | D648 | At 454 kPa |
| Limiting Oxygen Index | 43% | D2868 | — |
| Thermal Decomposition Temperature | ≥380°C | TGA | 1% wt loss, N₂ |
Applications of PVDF Binder in Lithium-Ion Batteries
PVDF-9300 is mainly used as a lithium battery cathode binder. It is mixed with cathode powder and other materials to prepare electrode slurry for lithium-ion battery electrodes.
Typical applications include:
- Lithium-ion battery cathode electrode preparation
- Battery research and development
- Electrode slurry mixing with cathode active materials
- Conductive carbon black and NMP-based slurry systems
- Lithium solid-state battery raw material research
- Laboratory and pilot-scale battery production
For electrode slurry mixing, you may also view our battery slurry mixer and lithium battery electrode coating machine for a complete battery research workflow.
Why Choose Gelon PVDF-9300 Battery Binder?
1. Battery-Grade Quality
PVDF-9300 is produced as a white, dustless powder with controlled molecular weight and low water content, suitable for lithium-ion battery research and production.
2. Excellent Chemical and Thermal Stability
PVDF offers outstanding resistance to acids, hydrocarbons, alcohols, halogenated solvents, and oxidizing environments. It remains stable after long-term continuous use.
3. Reliable Supply
With a monthly supply capacity of 3000 kilograms, Gelon can support sample orders and bulk requirements.
4. Quality Documentation
CE certification is available. COA and MSDS can be provided on request for quality and safety review.
5. Flexible Ordering
MOQ is 1kg. Samples are available for evaluation before bulk purchase.
Packaging, Delivery & Payment

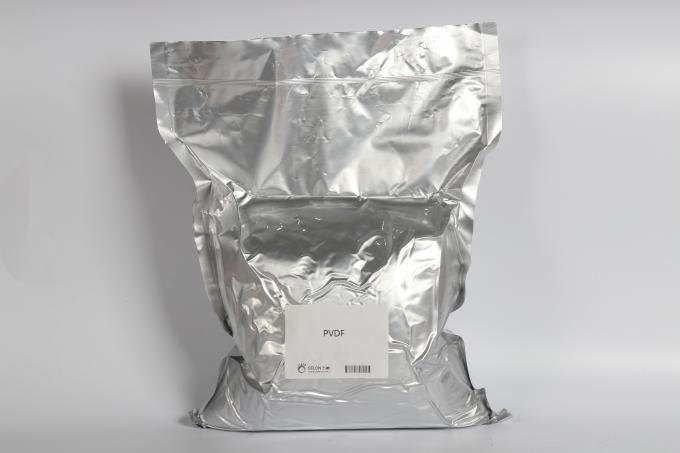

- Packaging: Standard export package; vacuum sealed in plastic bag
- Delivery Time: 7–10 working days
- Shipping: By sea / air / express / land
- Payment Terms: L/C, T/T, Western Union, D/P
- Supply Ability: 3000 kilograms per month
- Place of Origin: China
- Brand Name: Gelon
- Model Number: GN-PVDF / PVDF-9300
Frequently Asked Questions
What is PVDF binder used for in lithium-ion batteries?
PVDF binder is used to mix with cathode powder to prepare lithium-ion battery electrode slurry. It helps bind the active material and conductive carbon to the current collector, improving electrode mechanical stability.
Is PVDF-9300 suitable for lithium battery cathode research?
Yes. PVDF-9300 is a battery-grade PVDF powder designed for lithium-ion battery research, especially for cathode electrode preparation.
What is the MOQ for PVDF-9300?
The MOQ is 1kg. Samples are available for testing.
Do you provide COA and MSDS?
Yes. CE certification is available, and COA and MSDS can be provided on request.
How is PVDF binder packaged?
PVDF-9300 is vacuum sealed in a plastic bag and packed in a standard export package.
What is the delivery time?
Delivery time is usually 7–10 working days after order confirmation.
Can I get a price for PVDF-9300?
Please contact us for a quotation. We will provide a competitive price based on your quantity and delivery requirements.
Do you also supply lithium battery production equipment?
Yes. As a lithium battery equipment manufacturer, we can also support related equipment such as battery slurry mixers, electrode coating machines, and roller presses. Please contact us for more information.
Get a Quote for PVDF-9300 Battery Binder
Looking for a reliable PVDF binder supplier for your lithium-ion battery project?
Gelon provides battery-grade PVDF-9300 with stable quality, flexible MOQ, and fast delivery.
