LLZTO Solid Electrolyte Powder – 99.99% Garnet LLZO for Solid State Battery
PRODUCT PARAMETERS
Description
Gelon GN-LLZTO is a high-purity LLZTO solid electrolyte powder designed for solid state battery, pouch cell, and coin cell research and development. With a Ta-doped garnet-type LLZO composition, Li6.4La3Zr1.4Ta0.6O12, this white powder offers high lithium-ion conductivity, excellent chemical stability against lithium, and reliable performance for advanced lithium-based battery systems.
With 99.99% purity, ~5 microns particle size, and ionic conductivity up to 1.6 × 10⁻³ S/cm, GN-LLZTO is an ideal solid electrolyte material for next-generation solid state battery materials and pouch cell solid state battery applications.
MOQ: 100g
Supply Ability: 1000kg/month
Delivery Time: 8–15 days
Product Overview
LLZTO is a Ta-doped Li7La3Zr2O12 garnet-type solid electrolyte. Because of its high lithium-ion conductivity and chemical stability relative to lithium, LLZTO is considered a promising solid electrolyte for lithium-based batteries.
Gelon GN-LLZTO is supplied as a ready-to-use white powder with controlled particle size and high purity. It is suitable for solid-state battery research, composite electrolyte preparation, pouch cell development, coin cell testing, and other advanced lithium-ion battery material studies.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | LLZTO Solid Electrolyte Powder / Lithium Ion Battery Materials LLZTO |
| Brand | Gelon |
| Model Number | GN-LLZTO |
| Composition | Li6.4La3Zr1.4Ta0.6O12 |
| Type | Powder |
| Color / State | White powder |
| Purity | 99.99% |
| Particle Size | ~5 microns |

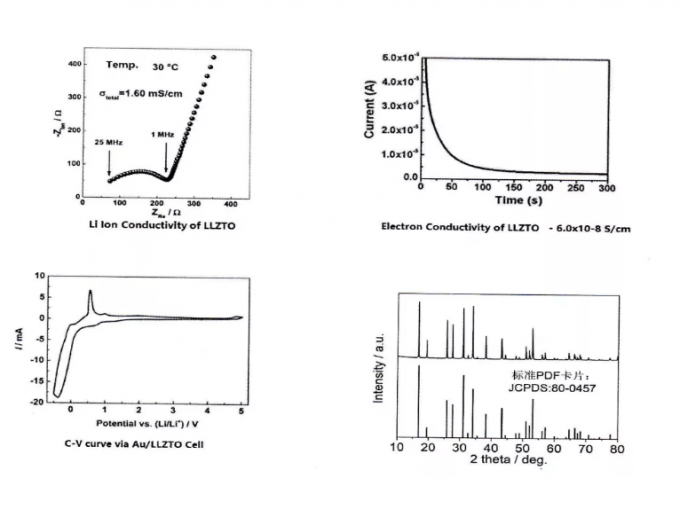

| Ionic Conductivity | 1.6 × 10⁻³ S/cm |
| Sintering Temperature | ~1000 °C |
| Application | Solid state battery / pouch cell / coin cell |
| Battery Type | Solid state battery, pouch cell, coin cell |
| Weight | 100g/bag |
| MOQ | 100g |
| Packaging | Bottle and carton |
| Delivery Time | 8–15 days |
| Supply Ability | 1000kg/month |
| Payment Terms | L/C, D/A, D/P, T/T, Western Union |
| Certification | CE |
| Place of Origin | China |
Key Features
- High Ionic Conductivity: Up to 1.6 × 10⁻³ S/cm
- High Purity: 99.99% LLZTO solid electrolyte powder
- Garnet-Type Structure: Ta-doped Li6.4La3Zr1.4Ta0.6O12
- Controlled Particle Size: ~5 microns
- Chemical Stability Against Lithium: Suitable for lithium-based battery systems
- White Powder Form: Easy to handle and process
- Suitable for Solid State Battery Research: Pouch cell, coin cell, and advanced battery development
- Scalable Supply: 1000kg/month supply ability
- Low MOQ: 100g for sample and laboratory testing
Applications
Gelon GN-LLZTO LLZTO solid electrolyte powder is widely used in:
- Solid state battery materials
- Pouch cell solid state battery development
- Coin cell solid state battery research
- Lithium-ion battery materials research
- Garnet-type solid electrolyte studies
- Composite solid electrolyte preparation
- Next-generation lithium battery R&D
It is especially suitable for researchers and battery manufacturers looking for a high-purity LLZTO solid electrolyte powder with high ionic conductivity and reliable batch consistency.

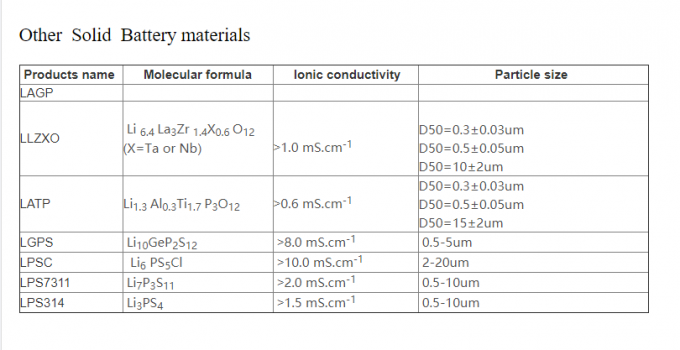

Related Solid Electrolyte Materials
In addition to LLZTO, Gelon also supplies and supports related solid electrolyte materials for solid state battery research and production:
- LLZO Solid Electrolyte
- LATP Solid Electrolyte Powder
- LGPS Solid Electrolyte
- Solid State Battery Materials
- Pouch Cell Solid State Battery Materials
- Coin Cell Battery Materials
For LLZO, LATP, LGPS, or custom solid electrolyte requirements, please contact us for specifications and availability.
Why Choose Gelon GN-LLZTO?
- Professional lithium battery materials supplier
- High-purity 99.99% LLZTO powder
- Stable ionic conductivity and particle size
- CE certified
- MOQ from 100g
- Fast delivery: 8–15 days
- Supply ability: 1000kg/month
- Export experience with flexible payment terms: L/C, D/A, D/P, T/T, Western Union
- Suitable for solid state battery, pouch cell, and coin cell applications
Packaging, MOQ & Delivery
- Packaging: Bottle and carton
- Weight: 100g/bag
- Minimum Order Quantity: 100g
- Delivery Time: 8–15 days
- Supply Ability: 1000kg/month
- Payment Terms: L/C, D/A, D/P, T/T, Western Union
- Place of Origin: China
- Certification: CE
FAQ
1. What is LLZTO solid electrolyte powder?
LLZTO solid electrolyte powder is a Ta-doped garnet-type LLZO material with the composition Li6.4La3Zr1.4Ta0.6O12. It is used as a solid electrolyte for solid state batteries and lithium-based battery research.
2. What is the ionic conductivity of Gelon GN-LLZTO?
The ionic conductivity is approximately 1.6 × 10⁻³ S/cm.
3. What is the particle size?
The particle size is approximately 5 microns.
4. What is the purity?
Gelon GN-LLZTO has a purity of 99.99%.
5. What is the MOQ?
The minimum order quantity is 100g.
6. What is the delivery time?
Delivery time is usually 8–15 days.
7. Can it be used for pouch cells?
Yes. It is suitable for solid state battery, pouch cell solid state battery, and coin cell applications.
8. What payment terms do you accept?
We accept L/C, D/A, D/P, T/T, and Western Union.
9. Is CE certification available?
Yes, Gelon GN-LLZTO is CE certified.
10. Can I request a sample or quotation?
Yes. Please contact us with your required quantity, application, and destination country. We will reply with price, lead time, and shipping details.
Request LLZTO Solid Electrolyte Powder Price
Looking for LLZTO solid electrolyte powder for solid state battery, pouch cell, or coin cell research?
MOQ: 100g
Supply Ability: 1000kg/month
Delivery: 8–15 days
Contact Gelon now to request a quotation, sample, or technical datasheet for GN-LLZTO.
