NCA Nickel Cobalt Aluminum Oxide Powder – High Nickel Single Crystal Cathode Material N8-S
PRODUCT PARAMETERS
Description
GELON GN-NCA-N8-S is a high-nickel single crystal NCA cathode powder designed for lithium-ion battery research and production. It is widely used in pouch and prismatic EV batteries, and can support an upper limit voltage of 4.35V in digital batteries. This NCA cathode material delivers high discharge capacity, high compaction density, long cycle life, improved safety, and inhibited gas generation.
MOQ: 1–5 kg negotiable | Sample available | Fast delivery: 7–10 working days
Product Overview
GELON NCA Nickel Cobalt Aluminum Oxide Powder N8-S is a high-performance cathode raw material for high-energy-density lithium-ion batteries. As a single crystal high nickel NCA material, it is suitable for advanced battery research, pilot lines, and mass production.
GELON is not only a battery cathode material supplier but also a lithium battery equipment manufacturer. We provide a one-stop solution covering:
- Lithium-ion battery raw materials
- Lithium-ion battery production equipment
- Lithium-ion solid-state battery raw materials
This makes GELON a reliable partner for battery factories, research institutes, and EV battery manufacturers.
Key Specifications
| Parameter | Value |
|---|---|
| Model | N8-S |
| Material Type | NCA / Nickel Cobalt Aluminum Oxide |
| D10 | 2.11 µm |
| D50 | 4.37 µm |
| D90 | 9.91 µm |
| SSA | 0.7 m²/g |
| Tap Density | 1.92 g/cm³ |
| pH | 11.2 |
| 0.1C Discharge Capacity | 205.6 mAh/g |
| 0.1C Discharge Efficiency | 85.7% |
| 1C Discharge Capacity | 187.6 mAh/g |
| Brand | GELON |
| Model Number | GN-NCA-N8-S |
| Certification | CE |
| Place of Origin | China |
Electrochemical Performance

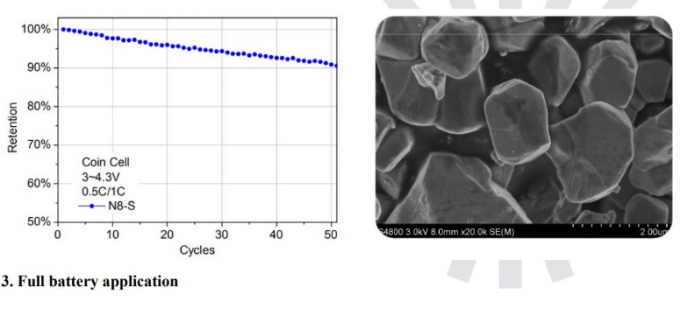

The N8-S NCA cathode powder shows stable cycle performance in coin cells. Under 3–4.3V and 0.5C/1C cycling, the retention remains around 90% after 50 cycles.
The SEM image shows a well-developed single crystal morphology, which contributes to high compaction, long cycle life, and improved safety.
Material Characteristics
- Long cycle life
- High safety
- High compaction density
- Inhibition of gas production
- Single crystal high nickel structure
- Suitable for high voltage applications up to 4.35V
- Designed for lithium-ion battery research and production
Recommended Applications
- Pouch and prismatic EV batteries
The single crystal high nickel material is recommended for pouch and prismatic EV batteries. - Digital batteries
The upper limit voltage of 4.35V can be used in digital batteries. - Graphite anode matching
The anode is matched with graphite, and the gram capacity of the cathode is about 195 mAh/g (2.75–4.35V). - Reference electrolyte
Xinzhoubang single crystal high nickel electrolyte is recommended. - Conductive agent and binder
- SP and CNTs are recommended as conductive agents.
- PVDF (5130) is recommended, with a dosage of 1.2%–1.5%.
Full Battery Application & Slurry Preparation

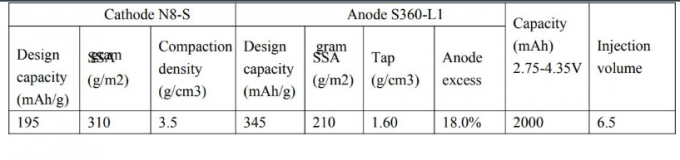

Full Cell Design
| Cathode N8-S | Value | Anode S360-L1 | Value |
|---|---|---|---|
| Design Capacity | 195 mAh/g | Design Capacity | 345 mAh/g |
| SSA / Loading | 310 g/m² | Gram SSA | 210 g/m² |
| Compaction Density | 3.5 g/cm³ | Tap Density | 1.60 g/cm³ |
| Anode Excess | 18.0% | ||
| Capacity (2.75–4.35V) | 2000 mAh | ||
| Injection Volume | 6.5 |

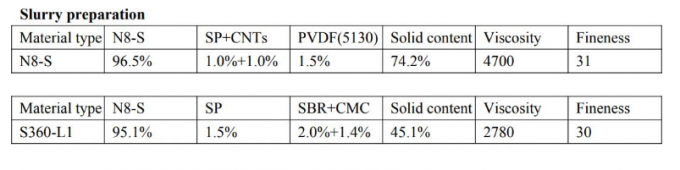

Cathode Slurry Preparation – N8-S
| Material Type | N8-S | SP+CNTs | PVDF (5130) | Solid Content | Viscosity | Fineness |
|---|---|---|---|---|---|---|
| N8-S | 96.5% | 1.0%+1.0% | 1.5% | 74.2% | 4700 | 31 |
Anode Slurry Preparation – S360-L1
| Material Type | S360-L1 | SP | SBR+CMC | Solid Content | Viscosity | Fineness |
|---|---|---|---|---|---|---|
| S360-L1 | 95.1% | 1.5% | 2.0%+1.4% | 45.1% | 2780 | 30 |
Why Choose GELON NCA N8-S?
- Manufacturer direct supply – GELON is a lithium battery equipment manufacturer and material supplier.
- Stable supply capacity – 10,000 kgs per month.
- Sample available – Support small batch testing and research.
- Fast delivery – 7–10 working days.
- Export packaging – Standard carton for export.
- Flexible payment terms – L/C, D/P, T/T, Western Union.
- Warranty – 3 months–1 year.
- One-stop solution – Cathode raw materials + battery production equipment + solid-state battery raw materials.
Packaging, MOQ & Shipping
| Item | Details |
|---|---|
| MOQ | 1–5 kg negotiable; sample available |
| Packaging | Standard carton for export |
| Delivery Time | 7–10 working days |
| Payment Terms | L/C, D/P, T/T, Western Union |
| Supply Ability | 10,000 kgs per month |
| Warranty | 3 months–1 year |
| Certification | CE |
| Brand | GELON |
| Model | GN-NCA-N8-S |
FAQ
1. What is NCA cathode material?
NCA stands for Nickel Cobalt Aluminum Oxide. It is a high nickel cathode material used in lithium-ion batteries for high energy density and long cycle life.
2. What is the MOQ for N8-S NCA cathode powder?
MOQ is 1–5 kg negotiable. Samples are available for testing.
3. Can N8-S be used in EV batteries?
Yes. It is recommended for pouch and prismatic EV batteries. It can also be used in digital batteries with an upper limit voltage of 4.35V.
4. What conductive agent and binder are recommended?
SP and CNTs are recommended as conductive agents. PVDF (5130) is recommended at 1.2%–1.5%.
5. Does GELON provide battery production equipment?
Yes. GELON supplies lithium-ion battery raw materials, battery production equipment, and solid-state battery raw materials.
6. What are the delivery and payment terms?
Delivery time is 7–10 working days. Payment terms include L/C, D/P, T/T, and Western Union.
Request NCA N8-S Cathode Powder Price
Looking for a reliable NCA cathode material supplier in China? Contact GELON for samples, specifications, and bulk pricing.
