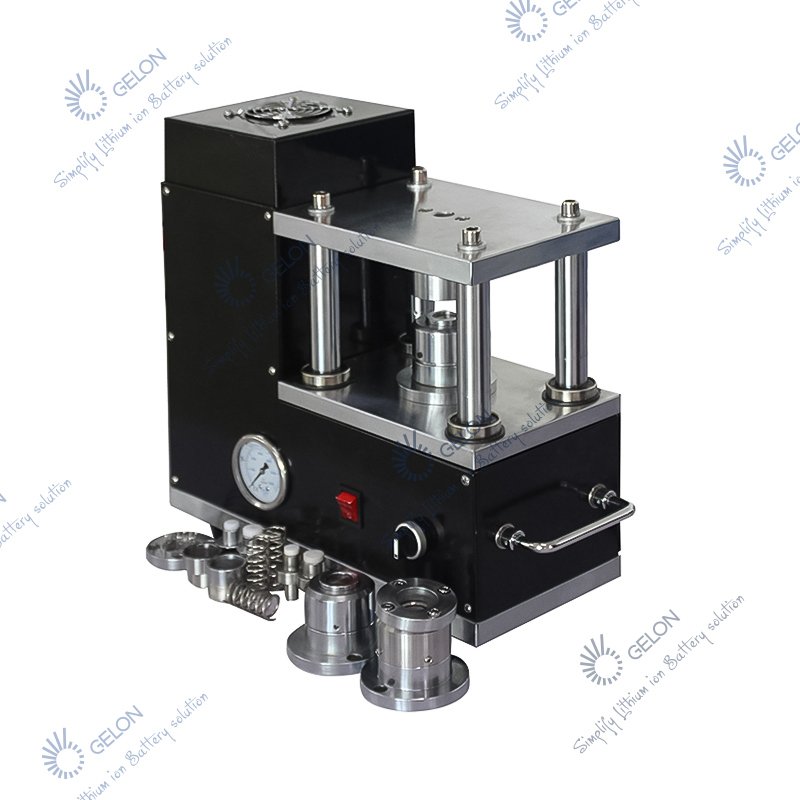

Electric Coin Cell Crimper GN-CC20E
PRODUCT PARAMETERS
Description
Electric Coin Cell Crimper GN-CC20E – Motorized Lab Crimping Machine
The GN-CC20E Electric Coin Cell Crimper is a motor-driven sealing machine designed for efficient and consistent coin cell battery assembly in research laboratories and small-scale production environments. Unlike manual or pneumatic crimpers, this electric model provides automated, repeatable crimping with precise pressure control.
Motor-driven electric coin cell crimper for laboratory battery assembly. Sealing pressure 80–1400 kg, stroke 30mm, pressure precision ±1.5%. Compatible with CR16, CR20, CR24, CR30 series. Ideal for button cell sealing, powder pressing, and riveting applications.
Working Principle:
After placing the battery into the mold, simply start the motor button. The upper and lower molds automatically close with controlled pressure to seal and form the battery. The entire process is motor-driven, eliminating the need for manual force or external gas supply.
Key Features:
- Motor-Driven Operation: Fully automatic mold closing and sealing; simple one-button operation.
- Adjustable Sealing Pressure: Pressure range from 80 kg to 1400 kg with ±1.5% precision, suitable for various battery types and sealing requirements.
- Fast Cycle Time: Approximately 14 seconds per unit (for CR2032), enabling efficient sample preparation.
- Interchangeable Molds: Compatible with CR16, CR20, CR24, CR30 series and other custom mold designs.
- Versatile Applications: Beyond battery sealing, can be used for dry powder pressing, wet powder pressing, nickel foam pressing, forming, and riveting with appropriate molds.
- Compact Design: Lightweight (35 kg) and bench-top friendly for laboratory use.
Applications:
- Coin cell battery sealing (CR2016, CR2025, CR2032, CR2430, CR2450, etc.)
- Capacitor research and sealing
- Small-batch trial production in factories
- Dry and wet powder pressing
- Nickel foam compression
- General pressing forming and riveting tasks
