Pneumatic punching machine
PRODUCT PARAMETERS
Description

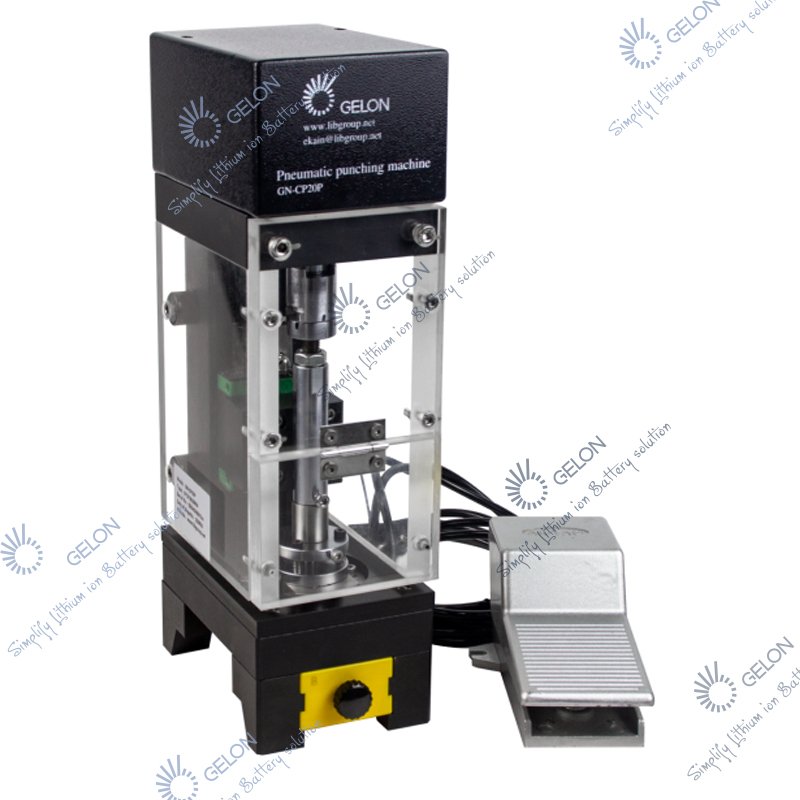

Pneumatic Punching Machine – Lab Electrode & Separator Puncher for Glove Box
The Pneumatic Punching Machine is a precision slicing equipment developed specifically for punching and cutting various materials in the battery research and production industry. It is designed to punch lithium battery cathodes, anodes, and separators with high accuracy and minimal burr formation.
Working Principle:
The material (electrode or separator) is placed on the lower cutting platform. Stepping on the foot valve activates the pneumatic system, causing the upper die to descend and punch through the material in a single, clean motion. The equipment returns to its ready position automatically after each cycle.
Key Features:
- Precision Cutting: Fine workmanship ensures minimal burrs and no indentation after punching.
- Versatile Die Compatibility: Interchangeable dies from Ø8mm to Ø24mm accommodate various battery sizes and components.
- Glove Box Compatible: Compact design (L110×W170×H380mm) allows easy placement inside standard glove boxes.
- Pure Pneumatic Operation: No electricity required; foot valve control for safe, hands-free operation.
- Easy Die Changes: Simple installation, disassembly, and replacement of dies.
- Durable Construction: Main materials SKD11 hardened steel for long-lasting precision.
- Compact & Portable: Small footprint, lightweight (13kg), easy to clean and maintain.
Die Selection Guide:
- Ø15mm – CR20xx series coin cell electrodes
- Ø19mm – CR20xx series coin cell cases & CR2325 anode electrodes
- Ø20mm – CR2450 electrodes, CR2325 cathode electrodes, CR20xx separators
- Ø24mm – CR24xx series electrodes and separators
Applications:
- Punching lithium battery electrodes (cathode/anode)
- Cutting separator materials for coin cells
- Thin sheet material punching and blanking
- Laboratory R&D sample preparation
- Glove box operations requiring inert atmosphere
| Name | Parameters | Remark |
| Final stroke | Max. 20mm | |
| Punchable materials | 0.01mm-0.25mm | Lithium battery separators and electrodes can be punched |
| Work surface | L100mm x W90mm | |
| Punching die diameter | Ø8-Ø24mm | Regular seriesφ10/12/14/15/16/19/20mm |
| Die selection reference | Φ15mm | CR20xx series coin cell electrode |
| Φ19mm | CR20xx series coin cell case and CR2325 coin cell anode electrode | |
| Φ20mm | CR2450 coin cell electrode, CR2325 cathode electrode, CR20xx series coin cell separator | |
| Φ24mm | Electrode sheets and separators for CR24xx series | |
| Main materials | SKD11 | The die is made of hardened steel |
| Working method | Pneumatic (foot start) | This equipment can be used in the glove box |
| Packed size | AboutL320*W260*H400mm | |
| Equipment size | AboutL110*W170*H380mm | Size without foot switch valve |
| Net weight | About 13kg | |
| Gross weight | About 21kg | Including 1 set of die weight |
| Place of use | It can be used in the glove box. For details, please check whether the glove box space matches the overall dimensions of the equipment. |
