Lab Heating Calendering Machine GN-MR100H
PRODUCT PARAMETERS
Description

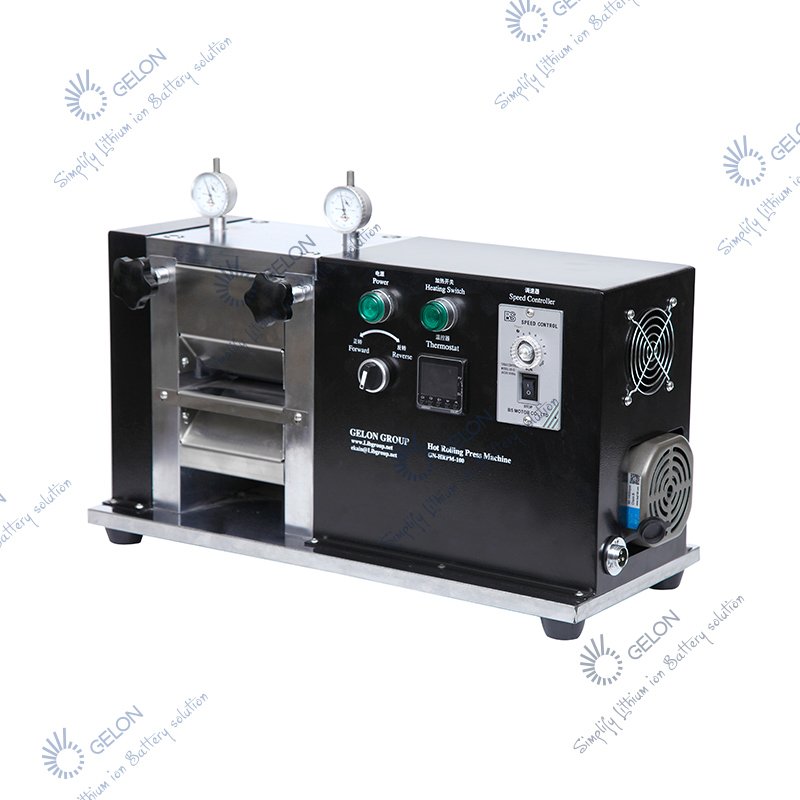

Lab Heating Calendering Machine GN-MR100H – Heated Roll Press for Battery Electrodes
The GN-MR100H Lab Heating Calendering Machine is a compact electric roll press designed for precision rolling of battery materials in research laboratories. It is particularly suitable for thinning and increasing the density of lithium battery electrodes, as well as processing small quantities of precious metals (gold, silver) and non-ferrous materials (copper, aluminum). The integrated heating function allows temperature-controlled rolling for advanced material processing.
Working Principle:
The machine utilizes gear transmission to drive the rollers, providing consistent and adjustable rolling pressure. The rolling gap can be precisely adjusted from 0 to 2 mm using a ramp mechanism, allowing fine control over material thickness. The vertical roller placement ensures stable operation and easy material feeding. Heating elements integrated into the rollers enable temperature-controlled calendering.
Key Features:
- Heated Rollers: Temperature adjustable for optimized rolling of temperature-sensitive materials.
- Precision Rollers: Two hardened chrome-plated steel rollers (Φ96mm diameter) with hardness HRC62 and surface finish above 0.8, ensuring high-quality rolling surface and rust resistance.
- High Precision: Cylindrical roller precision ≤ ±2μm for uniform thickness control.
- Adjustable Rolling Gap: 0–2 mm continuously adjustable via ramp mechanism for high accuracy.
- Variable Speed Control: Rolling speed adjustable from 0 to 40 mm/s.
- Safety Protection: Transparent protective plate for operator safety.
- Automated Operation: Electric rolling with automatic reversing function.
- Compact Design: Small footprint (L385×W245×H355 mm) ideal for laboratory benchtops.
- Easy Operation: Simple controls for gap, speed, and temperature adjustment.
Applications:
- Lithium battery electrode thinning and densification with heating
- Precious metal sheet rolling (gold, silver)
- Non-ferrous metal processing (copper, aluminum)
- Research and development of clean energy materials
- Temperature-controlled calendering experiments
