Vacuum Mixer (150/500ml)
PRODUCT PARAMETERS
Description

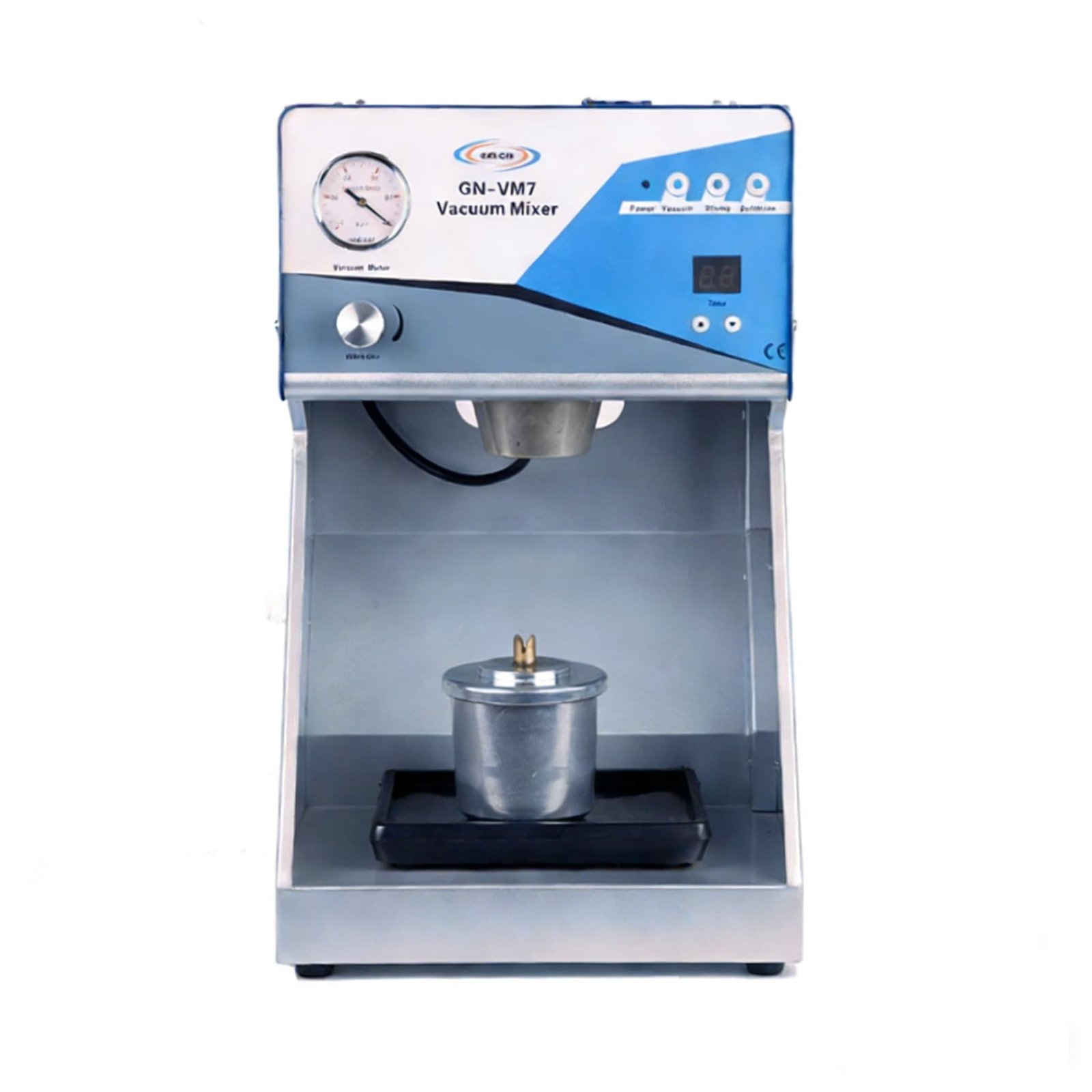

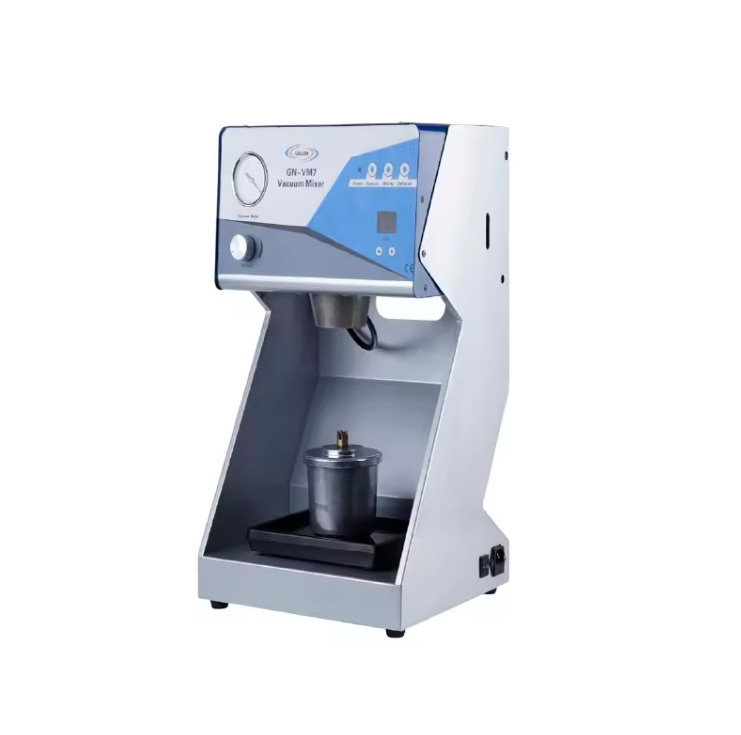

Vacuum Mixer GN-VM7 – 500ml Lab Mixer with Built-in Pump & Vibration Plate
Compact vacuum mixer GN-VM7 for lab-scale slurry preparation. 500ml max capacity, built-in vacuum pump (0.08–0.09 MPa), stepless speed 0–320 rpm. Includes vibration plate (1000 Hz) for bubble removal and dispersion. Ideal for lithium battery electrode paste and ceramic materials.
Working Principle:
The mixer features a built-in vacuum pump that evacuates the mixing container to 0.08–0.09 MPa (600–675 torr). The stepless mixing speed can be varied from 0 to 320 rpm, allowing precise control for different material viscosities. A vibration plate located at the bottom operates at 1000 Hz to remove gas bubbles before vacuum mixing and to further disperse the slurry after mixing, ensuring superior uniformity.
Key Features:
- Built-in Vacuum Pump: No external pump required; achieves 0.08–0.09 MPa vacuum level.
- Stepless Speed Control: 0–320 rpm adjustable for optimal mixing of various materials.
- Vibration Plate: 1000 Hz vibration enhances bubble removal and slurry dispersion.
- Interchangeable Containers: Includes optional 150ml (stainless steel) and 500ml (aluminum) containers.

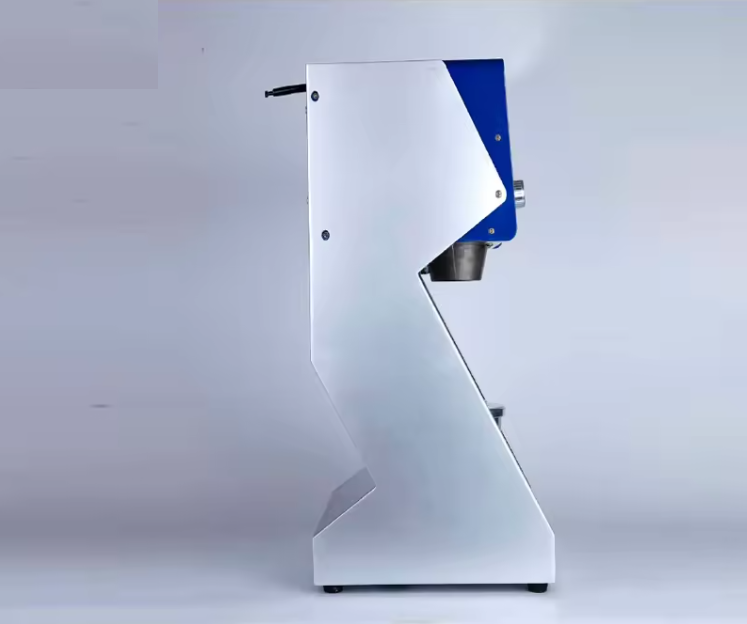

- Compact Footprint: Fits easily on lab benches; dimensions 13″L x 12″W x 21″H.
- Easy Operation: Simple controls for vacuum, mixing speed, and vibration.
Applications:
- Lithium ion battery electrode paste preparation
- Ceramic material slurry mixing
- Chemical and compound blending under inert conditions
- Any lab-scale mixing requiring bubble-free, oxidation-protected results
