Centrifugal Stirring Defoaming Slurry Mixer
PRODUCT PARAMETERS
Description

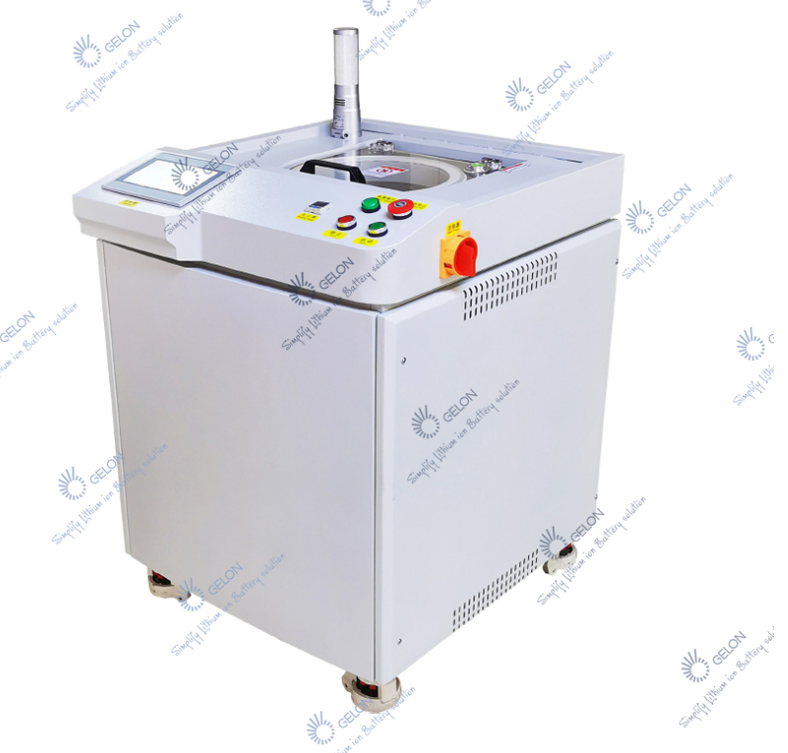

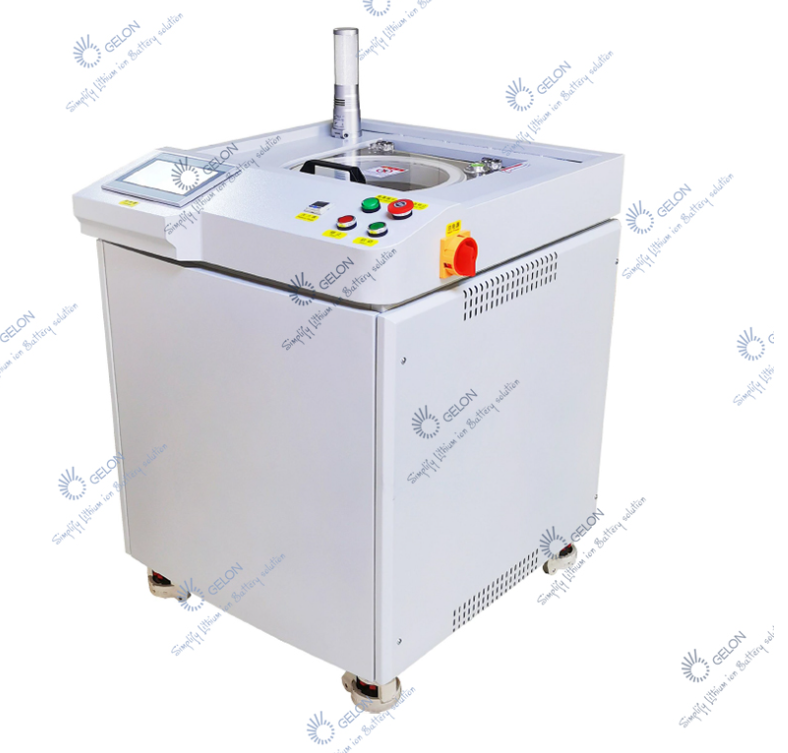

Centrifugal Stirring Defoaming Slurry Mixer – GN-T600A-1.8L
High-performance centrifugal stirring defoaming slurry mixer (model GN-T600A-1.8L) for uniform mixing and bubble removal. Planetary revolution/rotation with vacuum up to -100KPa. 750W servo motor, PLC control, 0-1500 rpm stepless speed. Ideal for lithium battery slurries, epoxy, solder paste, and more. Compact design with safety lock.
Working Principle:
The container undergoes planetary high-speed motion—revolution around the main axis and rotation on its own axis. This generates powerful centrifugal forces that mix materials down to a fine, homogeneous state. Simultaneously, a built-in vacuum pump creates a negative pressure environment (down to -100KPa) within the chamber, drawing out air bubbles from the mixture. The dual action of centrifugal force and vacuum ensures faster and cleaner bubble removal, typically within seconds to minutes depending on material viscosity and volume.
Versatility:
The mixer accommodates various container sizes via customizable fixtures, supporting batch volumes from 1,000 to 20,000 grams. This flexibility makes it suitable for both laboratory R&D and small-scale production.
Key Features:
- User-Friendly Operation: Intuitive PLC touch screen with man-machine dialogue; can store up to 5 programmable groups with 5 stages each (time, speed, vacuum).
- Robust Safety: Mechanical safety door lock prevents opening during operation; explosion-proof chamber made of 8mm aviation aluminum alloy.

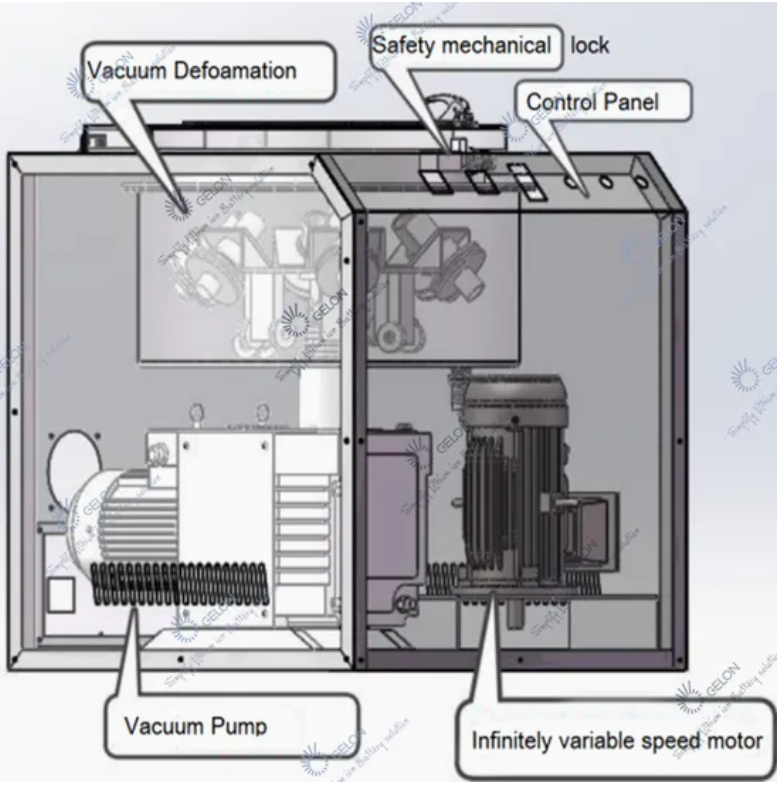

- High-Quality Components: Equipped with Haibao servo motor (750W), Taiwan Shihlin inverter, Delta PLC, Germany Busch vacuum pump, NSK bearings, and durable nylon gears for low noise and long life.
- Elegant Design: Steel plate body with baking varnish (stainless steel optional) and transparent acrylic door for easy monitoring.
Applications:
Ideal for mixing and degassing of:
- Lithium battery cathode/anode slurries
- Silver paste, epoxy resin, solder paste
- Silicone gel, adhesives, conductive adhesives
- Inks, LCD materials, phosphors, LED encapsulants
- Pharmaceuticals, polymer materials, and any other viscous compounds requiring bubble-free homogeneity.
Product Parameters
| Parameter | Specification |
|---|---|
| Model | GN-T600A-1.8L |
| Mixing Method | Revolution / Rotation / Vacuum (non-contact, negative pressure) |
| Control System | PLC touch screen, Chinese interface, stores ≥5 programs, each with 5 stages (time, speed, vacuum) |
| Revolution Speed | 0–1500 rpm, stepless adjustable, accuracy 1 rpm (low speed option: 0–1400 rpm; high speed option: 0–2800 rpm available) |
| Rotation Speed | 0–1500 rpm, fixed 1:1 ratio with revolution (custom ratios available) |
| Vacuum Negative Pressure | -100 KPa (absolute) = -0.999 MPa (relative) = 0.1 mbar; customizable |
| Vacuum Pumping Rate | 21 m³/h |
| Continuous Running Time | 30 min (programmable 0–9999 hours, accuracy 1 sec) |

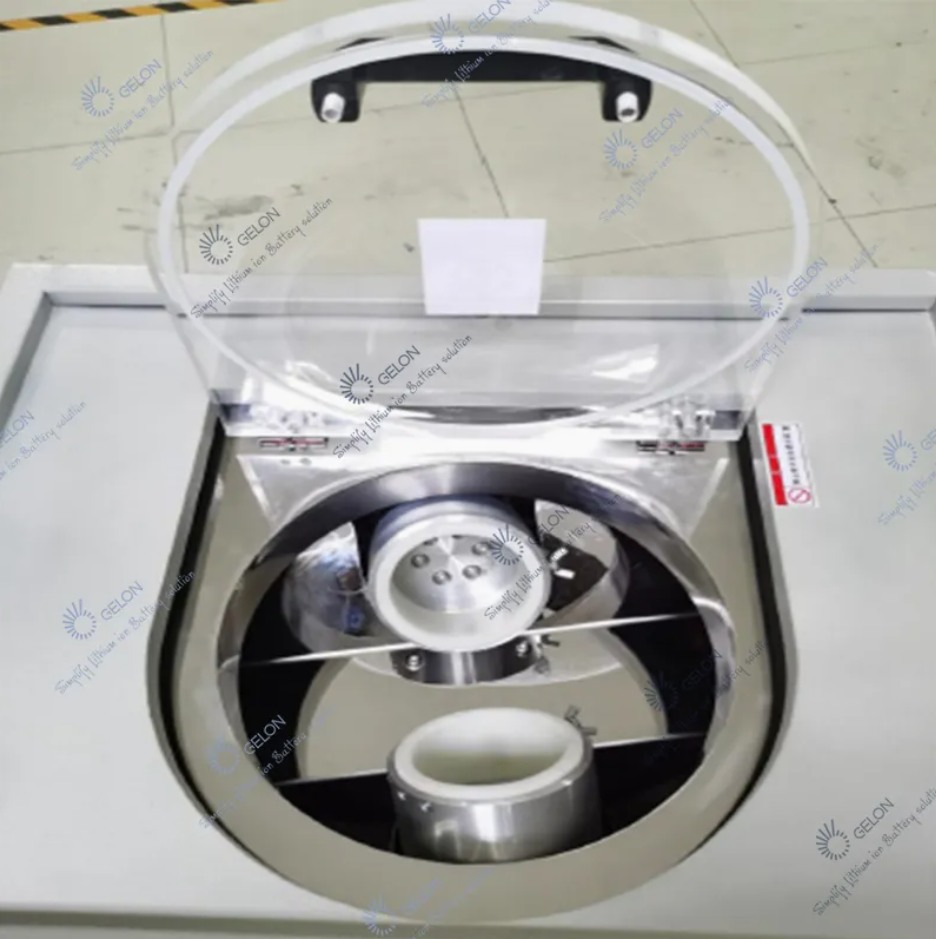

| Max. Stirring Capacity | 900 ml × 2 tanks = 1800 ml (customizable) |

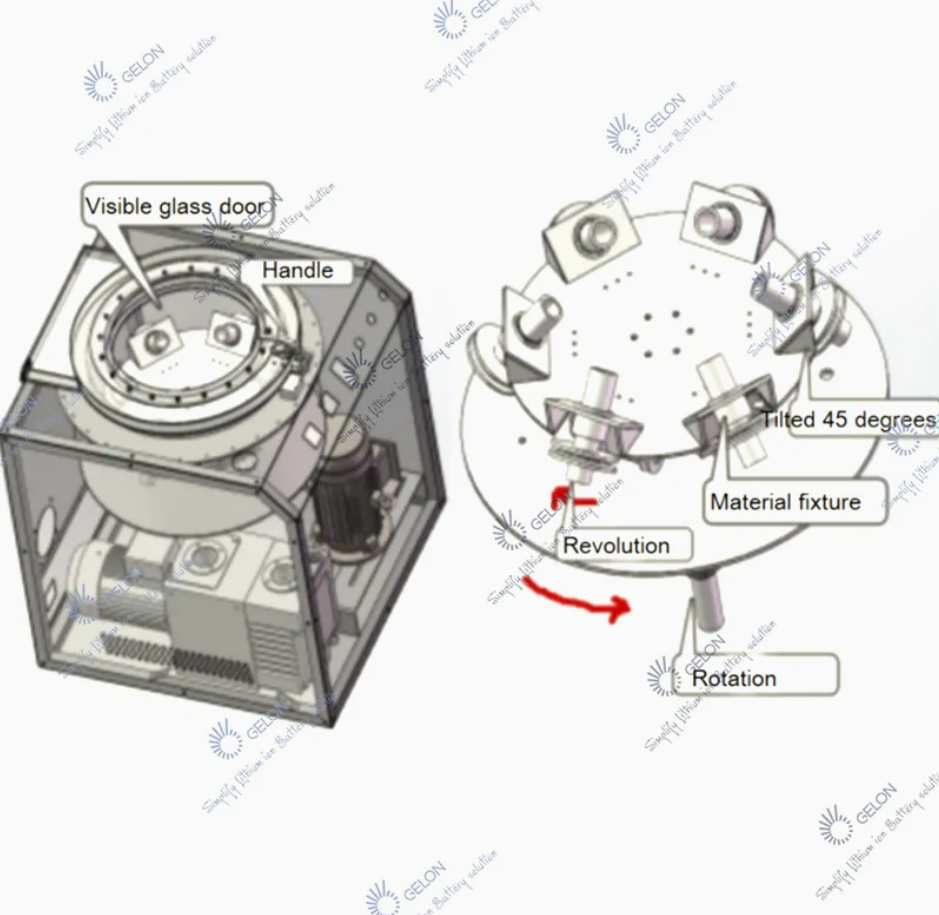

| Number of Tanks | 2 (more tanks optional); left-right balanced double chambers, 45° bevel design |
| Mixing Quality | Uniform dispersion, no layering, no bubbles, no contamination after 12h operation |
| Heating | No (optional) |
| Cooling | No (optional) |
| Power Supply | 220V / 380V (optional), 50–60 Hz |
| Power Consumption | Running: 2.95 kW; Standby: 50 W |
| Dimensions (L×W×H) | 850 × 850 × 1050 mm |
| Weight | 180 kg |
| Safety Features | Emergency stop, mechanical door lock, explosion-proof ≥ DIIBT4 |
| Auxiliary Functions | Three-color operation indicator, self-balancing level, buzzer alarm |
| Construction Material | Body: 3 mm steel plate with baking varnish (stainless steel optional); Door: 20 mm transparent acrylic; Chamber: 8 mm aviation aluminum alloy |
| Key Components | Haibao servo motor (750W), Taiwan Shihlin inverter, Delta PLC, Germany Busch vacuum pump (750W), NSK bearings, TECO electronics, wear-resistant nylon gears |
