Coin Cell Crimping Machine
PRODUCT PARAMETERS
Description

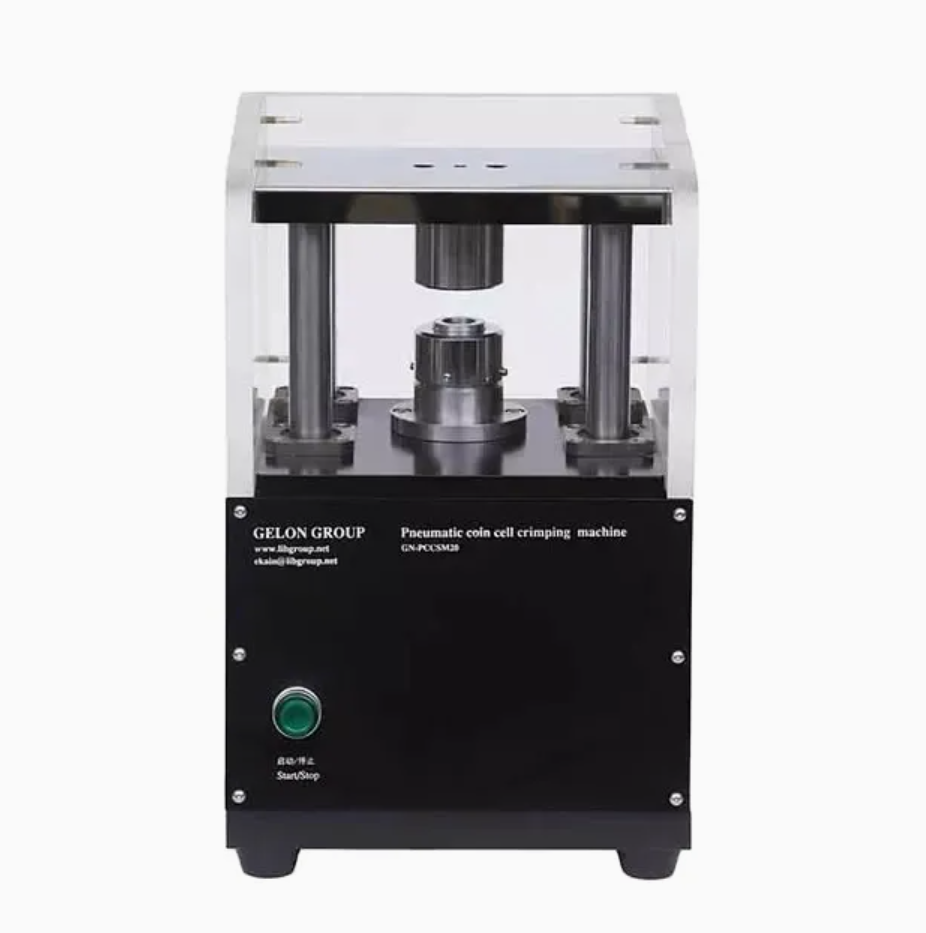

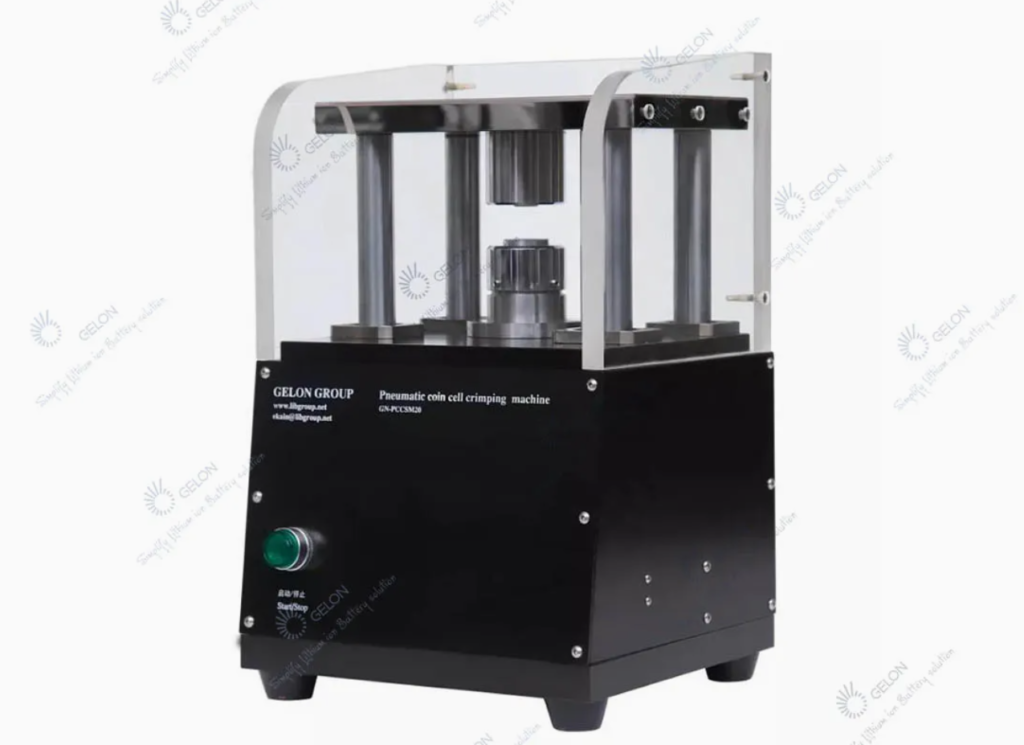

Coin Cell Crimping Machine – Pneumatic CR20XX Crimper for Glove Box
Compact pneumatic coin cell crimping machine driven by compressed gas/air. Compatible with CR2016, CR2025, CR2032 and other sizes. Accurate pressure control (±0.5%), 0.4–0.5 MPa gas source, 30mm stroke. 1000-grade clean room compatible, non-contaminating for glove box. Includes screw ejection mechanism. Ideal for R&D and battery assembly.
Feature：
- Screw Spring Ejection Mechanism: The upper mold sealing cup incorporates a screw spring top center mechanism, preventing battery sticking after sealing. Simply turn the top screw to eject the button cell.
- Dual Gas Supply Options: Compatible with compressed air or inert gas cylinders (argon, nitrogen). External exhaust prevents glove box atmosphere contamination.
- Precision Mold Design: Ensures accurate and reliable sealing; robust steel structure guarantees stable and safe operation.
- Compact Size: Easily fits inside a glove box (Φ360 transition chamber).
- Pure Pneumatic Operation: No electricity required, simple and safe to use.
Technical parameter:
- Gas source：0.4～0.5MPa Argon、Nitrogen cylinder，or compressed air（It is not recommended to use compressed air in the glove box.）
- Sealing pressure：Manual control valve control, maximum pressure 1MPa, recommended pressure 0.9MPa, accuracy ±0.5%
- Sealing stroke：30mm

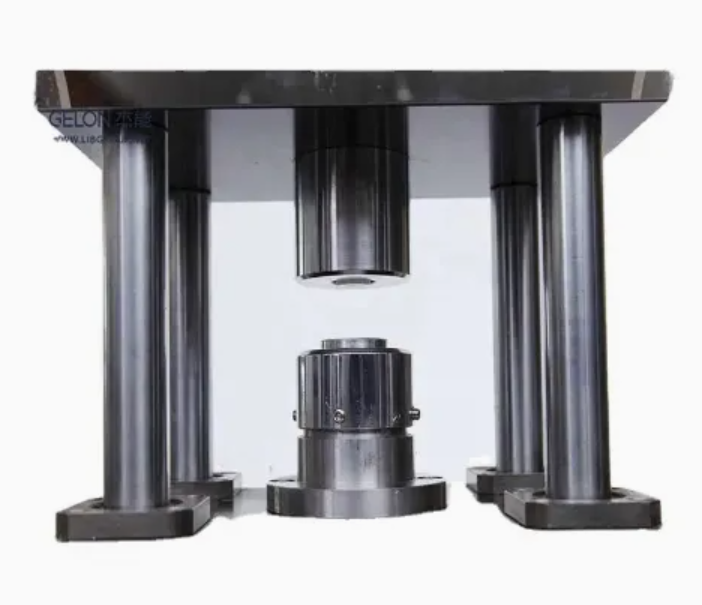

- ealing die：standard CR20XX crimping die, optional or additional specifications CR16XX、CR20XX、CR24XX、CR30XX
- Installation size：L220mm*W220mm*H420mm
- Weight ：25Kg
- Structural material：High-strength chrome steel, the surface is never rusted by environmentally friendly plating and spraying
